Home > Products > Pneumatic Marking Machine > Cheapest cast iron pneumatic mark scribe machine
Cheapest cast iron pneumatic mark scribe machine
- 100 Set / Sets per Month
- Qingdao
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Condition: | New | Laser Type: | Other, pneumatic marking machine | CNC or Not: | Yes |
Cooling Mode: | Other | Control Software: | windows xp | Graphic Format Supported: | PLT |
Working Accuracy: | 0.01mm | Place of Origin: | Shandong, China | Brand Name: | Xintian marking machine |
Model Number: | XTQ-110B | Power(W): | 300w | Certification: | CE, ISO |
After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
cast iron pneumatic mark scribe machine will be packaged by wooden case.
Product Description
cast iron pneumatic mark scribe machine is one of our fast moving machine
Product introduce:
- System platform using the WINDOWS XP operating system, the software friendly interface, easy operation. can provide test software, fault detection and test machine performance.
- Able to print edit, the serial number autoatic accumulate, automatic storage, has the statistical functions, may inquires at any time.
- Automatic memory, set the state, the serial number, recover automatically turned on state the next time, no initialization and can work, with automatic inspection, warning function.
- Print movement by linear rolling guide rail way movement, the synchronous belt transmission way, after printing,the system automatically check stepping motor of the mobile quantity, automatic calibration and to ensure that the next move efficiency, automatic calibration and to ensure accurate position in the next time.
Products parameter:
1.Printing content: Digital, letters, Chinese characters, common characters, all kinds of graphics
2.Marking scope:90*110 mm,90*150mm, 90*180mm
3.Marking speed: 5-100 characters per minute
4.Marking depth: 0.1-1 mm (depending on the material)
5.Marking direction: up, down, left, right, radian can be chosen
6.Control mode: man-machine dialogue to be automatic increase the serial number, automatic VIN number calculation and print.
7.Power consumption: no more than 300W
8.Power supply: 220V±10% 50HZ
9.Gas source: 0.3~0.8Mpa
10.Character size spacing: can adjust
11.Impact frequence: 200—400HZ
12.Weight: <40kg
13.Input methods: manual input, barcode scanning, reading network database information
14.Operating system:WIN2000 or WIN XP
Features:
1. The pin marking machine for automobile parts serial number is automatically incremented and the value optional.
2. The software can be auto updated with the date and printed.
3. The software is with the function of auto adjustment and trace.As the marking location changes,the marking needle can move to the new location.
4. Input methods using manual input, made by different contents of different type of print documents, workpiece management.
5. This machine with graphics editor print function, the user can need according to oneself, use AUTOCAD editing some simple graphics, through this marker print system in the printed by marking.It’s also with the CORELDRAW,PHOTOSHOP and others.
6. The software can directly mark the scale.
7. The software owns the output function of Diametric.
8. Many characters for optional, as more than 200 types English characters.
9. It can mark different characters same time with the rotary angles.
10. There is data record and query function with the machine software.
11. The software can read the data direct from the textfile.
12. There is external routine interface in the software.Through the SQL script,it can connect the external database.
13. Automatically marking function after start without human intervention.
14. Non paint break-up after marking.

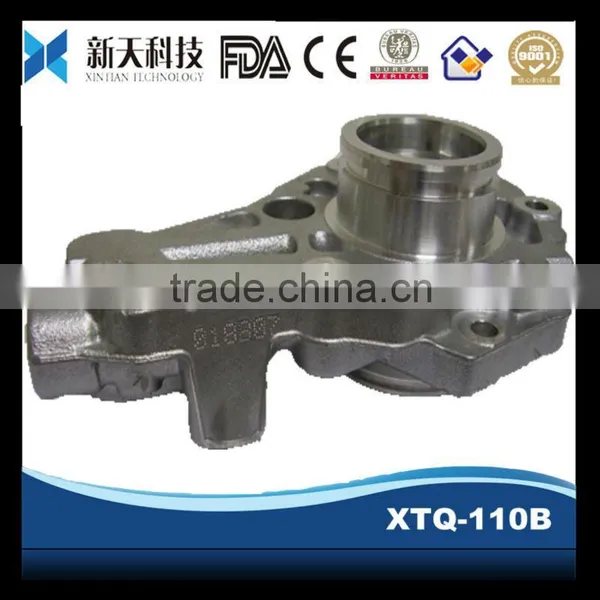

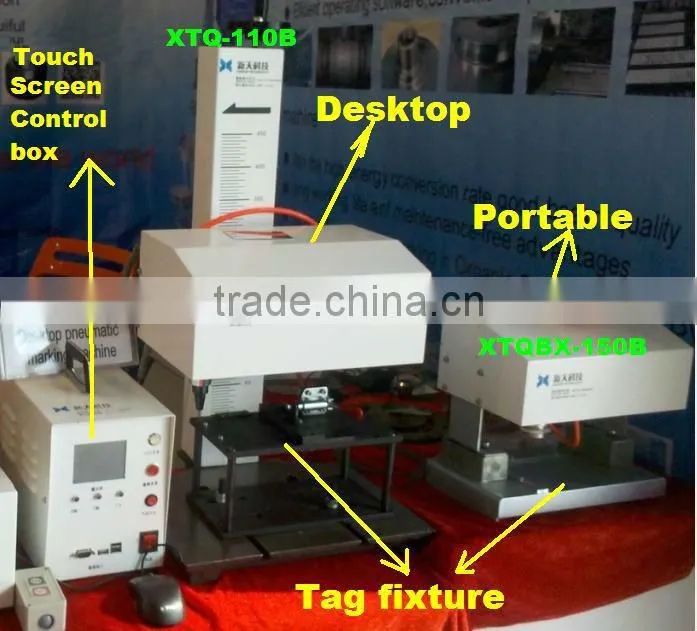

Machine pictures:

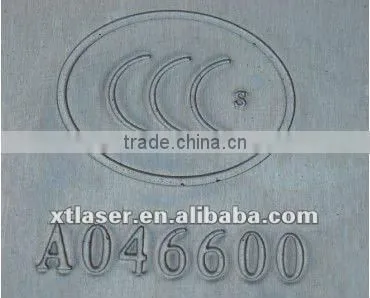

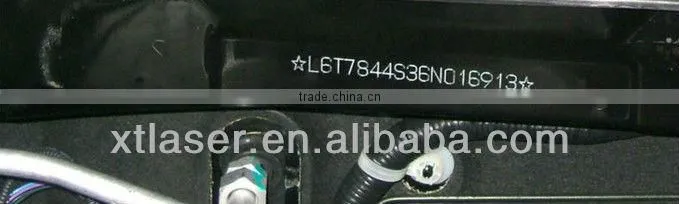

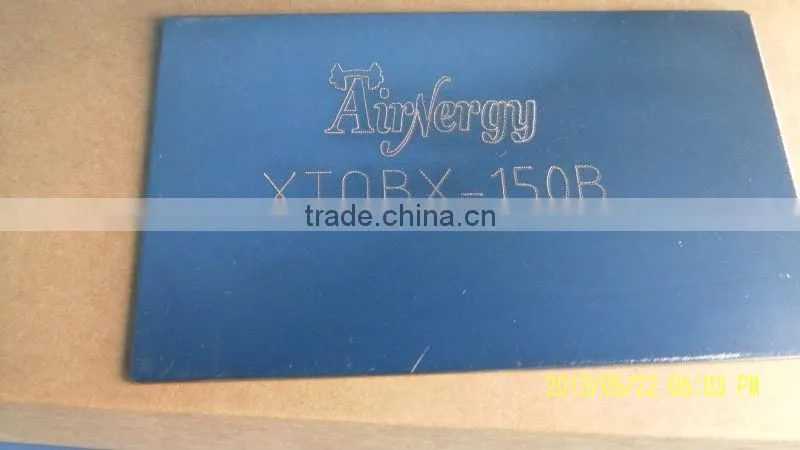

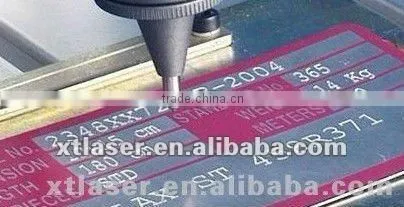

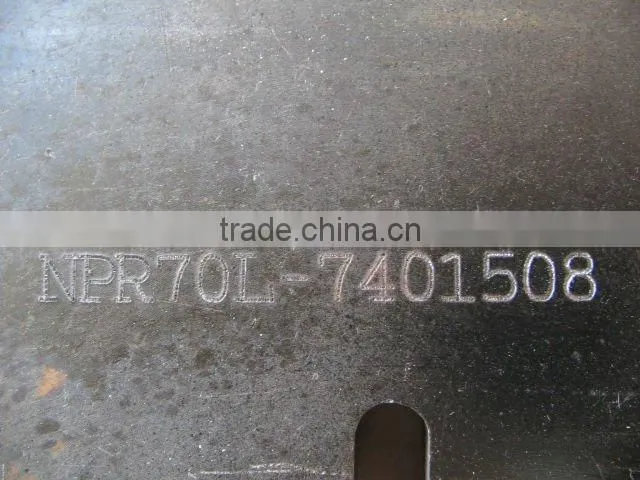

Marking sample:

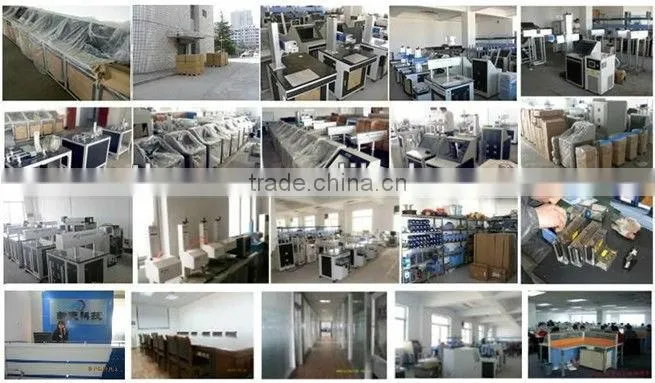

Company profile:
Jinan Xintian Technology Co.,Ltd is professional manufacturer of laser equipment, established in 2004.
It is a professional manufacturer engaged in the research,development, production and service of
Diode pumped Laser marking machine, Fiber laser marking machine,CO2 laser marking machine,Pneumatic marking machine,Laser engraving machine,Laser welding machine, Laser cutting machine and Laser trimming machine.
Certifications
Exhibitions:
Other products:
Namecard:
Please advise us the following information, so that we can recommend you the most suitable model, right now, feel free to contact us soon !
(1) Which Material will be processed? stainless steel,metal,wood,acrylic,fabric,leather,textile etc.?
(2) What is the size and thickness of the material?
(3)What is your business scope? Are you a distributor or end-user ?
Company Profile
Jinan Xintian Technology Co.,Ltd was established in 2004,it is a professional manufacturer engaged in the research, development, production and service of laser marking machine,fiber laser marking machine.pneumatic marking machine,laser engraving machine,laser welding machine, laser cutting machine and laser trimming machine.
We possess high efficient cooperated technology and sevice team, high coordinated producing and service network. Our company strictly according to ISO9001:2008 international quality management system elements of conduct production,process inspection,incoming inspection,various links quality,Pay attention to produce aftersales quality feedback and continuous imporvement principle,ensure products performance and stable quality
Our company will continue its efforts in every colleague support,in other fields to make greater achievements.Jinan Xintian Technology Co.,Ltd also met with more excellent products and more satisfied with the cost performance of more satisfactory service to acknowledge old and new customers for supports love.
