Help Center2016 New Type xt Fiber Laser Marking Watch Case Back Laser Engraving Machine
Related Products
-
Fiber Laser Gravure/Laser Engraver for Ring JewelleryUS$ 4,000 - 8,000MOQ: 1 Set -
2016 NEW STYLE Co2 Laser Engraving Machine Portable Fiber Laser Marking Machine Automatic Pen MarkingUS$ 4,000 - 8,000MOQ: 1 Set
-
IPG Germany Laser Source Metal Laser Cutting MachineUS$ 4,000 - 8,000MOQ: 1 Set
-
Lipo Laser Marking Machine for Metal PartsUS$ 4,000 - 8,000MOQ: 1 Set
-
20w Fiber Fiber Laser Marking Machine for for Wrist WatchUS$ 4,000 - 8,000MOQ: 1 Set
watch case back laser engraving machine
Type |
XTL-F10 |
XTL-F20 |
Power |
10W |
20W |
Laser Wavelength |
1064nm |
|
Markking Area |
150mm*150mm |
|
Optional Marking Area |
50mm*50mm / 100mm*100mm / 200mm*200mm / 300mm*300mm |
|
Marking Depth |
≤1.2mm |
|
Marking Speed |
800 standard characters/second |
|
Minimum Line Width |
0.012mm |
|
Minimum Character |
0.15mm |
|
Repeated Precision |
±0.003mm |
|
Fiber Laser Source |
CHINA/GERMANY |
|
Scan head |
CHINA/GERMANY
|
|
Controller |
CHINA/GERMANY
|
|
Life-span of Fiber Laser Module |
100 000hours |
|
Beam Quality |
M2 <1.5 |
|
Focus Spot Diameter |
<0.01mm |
|
Output Power of Laser |
10%~100% continuously to be adjusted |
|
Output Frequency of Laser |
20KHz~100KHz continuously to be adjusted |
|
Power Stability (8h) |
<±1%rms |
|
Marking Type |
Dynamic Mark / Static Mark |
|
System Operation Environment |
Windows 7--32bits / WindowsXP / 2000 / Windows 7--64bits (Not recommended) |
|
Cooling Mode |
Air cooling--Built-in |
|
Temperature of Operation Environment |
15°C~35°C |
|
Voltage |
220V / 50HZ / single phase |
|
Power Requirement |
<400W |
|
Computer Requested |
There will be one PC with the machine |
|
Communication Interface |
USB |
|
Dimension (L*W*H) |
550mm*740mm*1280mm or 1150mm*680mm*1300mm |
|
Package Size |
900mm*900mm*1500mm |
|
Net Weight |
130KG |
|
Gross Weight |
160KG |
|
Optional (Not free of charge) |
Rotary Device, Moving Table, other Automatic Matching System |
|
Application & Materials:

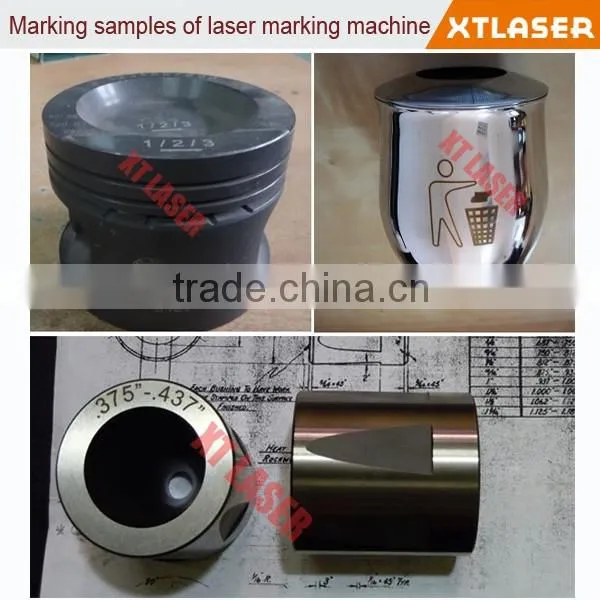

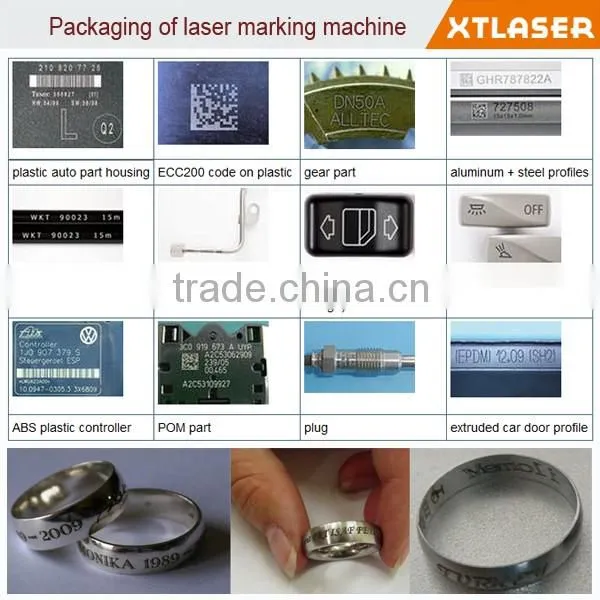

This type laser marker suitable for Gold, Silver, Diamond, Sanitary Equipments, Foods Packing, Tobacco Label, Beer label, Drink Label, Medicine Packing, Medical Equipments, Glasses and Clock, Auto Parts,Plastic& Paper Materials, The Electron, Hardware which with high request for depth, smooth,accuracy such as horologe, Mould, bitmap marking etc. Laser Power: 10W, 20W, 30W, 50W
The video of our machine marked:
1. The video of Marking white color on anodized aluminium
https://youtu.be/Xw1uwwcvdoc
2. The video of marking black color on stainless steel
https://youtu.be/HKJJe5hI1Lk
3. marking white color on stainless steel
https://youtu.be/fWpqehTSbVI
4. mini fiber laser machine marked black color on surgical instruments:
https://youtu.be/y6YwWrJWfEg
5. LED lamp marking machine fiber laser marking machine for led mark
HTTP://youtu.be/ZhcBsIWjaB0
6.Ear tag marking
https://youtu.be/Nyn1Wl66v8Q
service of our fiber laser marking machine & fiber laser marking machine
Warranty
1. 2 years warranty for this fiber laser marking machine
2. Our customer will be fully trained for the operation and maintaining technology after the order confirmed.
3. Skilled engineer will help customer to solve the problem by MSN, SKYPE,QQ etc in time when problem happened.
Quality control
1. Skilled and strict Quality Inspection Team is available during the material purchasing and production procedure.
2. All finished machine we shipped out are 100% strictly tested by our QC department and engineering department.
Payment:
T/T (Bank transfer), Western Union, Papal, Escrow etc. Basically, the payment ways can be decided by our customer.
Delivery time
It's up to the real quantity. Basically, we have enough inventory, so, less than 5 sets machine can be prepared within 3-5 working .
Package
1. It is well packed with export wooden case.
2. The package size is: 380*610*720mm
OEM Service
1. Customized and OEM orders are welcome due to our aboundant experiences.
2. All the OEM services are free, customer only need to provide us with your logo drawing, function requirements, colors etc.
3. No MOQ required.
Privacy:
None of your personally identifiable information ( such as your name , address , email address ,bank info ,etc ) will be disclosed or shared with any third parties.
Contact:
All of your inquiries or questions or helps will be answered within 12 hours, even in holiday. Also, please feel free to call us if you have any emergency questions.
Cherry 008615820019181
Email:lasermachine01at
