automatic pen marking machine on metal
Standard Model :

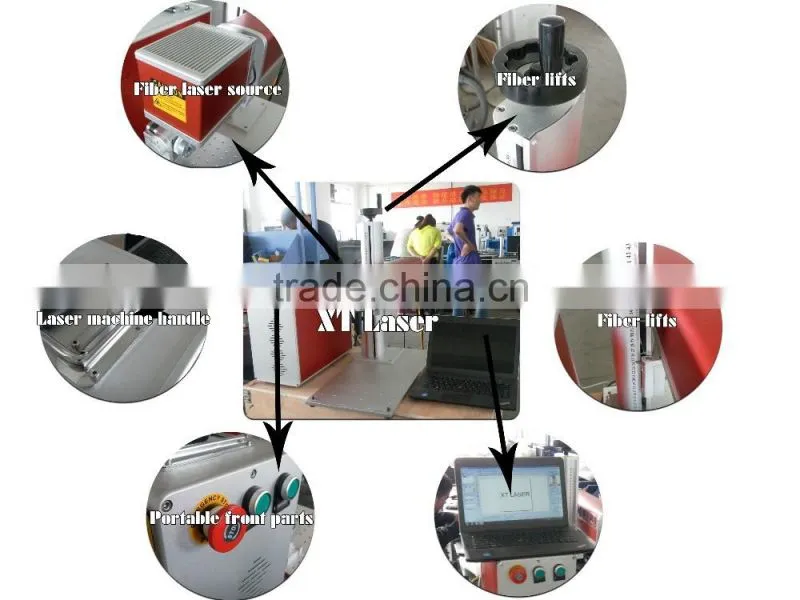

Including Control Box ,Lifting worktabke with laser head ,Laptop .This machine is very compact and can put on the desk for marking works.package size : 850x480x850mm ,Gross weight: 95 kgs . Transporaton : By Sea or Airline .
Features:
1.Marking high precision spare parts , such as Gold, Silver, Jewelry, Electronic spare parts etc.
2. High speed marking speed and perfect marking effects.
3.Working time : 200,000 hours(USA model) don't need change any consumptive materials .4.CE certificates 5.Compact designing .
6.Min marking letter : 0.15mm 7.Max .Marking depth :1.5-2.0mm (hard steel )
Delivery Time:1 week/ Transportation: BY SEA ,AIRLINE
Application & Materials:
This type laser marker suitable for Gold, Silver, Diamond, Sanitary Equipments, Foods Packing, Tobacco Label, Beer label, Drink Label, Medicine Packing, Medical Equipments, Glasses and Clock, Auto Parts,Plastic& Paper Materials, The Electron, Hardware which with high request for depth, smooth,accuracy such as horologe, Mould, bitmap marking etc.
Laser Power: 10W, 20W, 30W, 50W
Technical Parameters:
Laser Source |
Fiber Laser |
Output Power |
50W30W/20w/ 10w |
Wavelength |
1060nm |
Beam Quality |
<2 |
Repeat Frequency |
10khz--- 100khz |
Pulse Energy |
2mJ |
Beam Divergence |
-0.3 to +0.3mrad |
Laser Class |
IV |
Resolution |
18μ |
Repeatablility |
50μ |
Marking Scope |
110mmx 110mm/ 175mmx 175mm (optional) |
Linear Speed |
800 character/ s |
Marking Linear Speed |
≤12,000mm/s |
Marking Depth |
Max. 1.0- 1.5mm (hard steel) |
Min. Line Width |
0.012mm |
Min. Character Size |
0.15mm |
Repeat Accuracy |
±0.003mm |
Input Power |
0.5kw |
Electrical Source |
220v/50hz or 60hz |

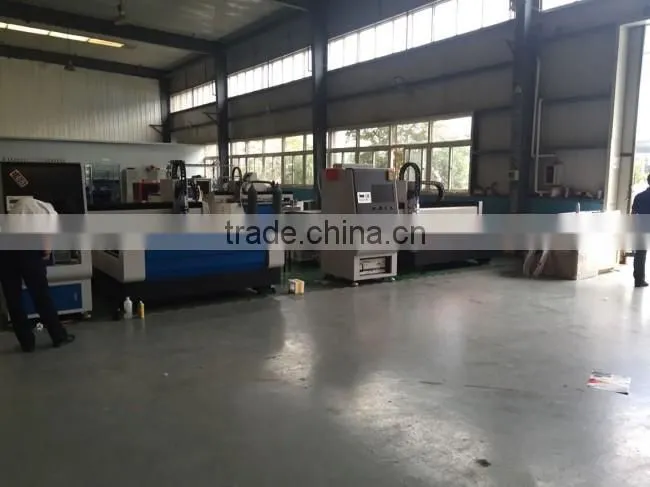

Jinan XinTian Technology Co., Ltd was established in 2004. It is a professional manufacturer engaged in the research, development, production and service of Diode pumped Laser marking machine, Fiber laser marking machine, CO2 laser marking machine, Pneumatic marking machine, Laser engraving machine, Laser welding machine, Laser cutting machine and Laser trimming machine.
1. 24/7 service is available to each customer. And if any technical questions or problems, our engineers will help you and give you solutions on the phone or by face-to-face communication online.
2. One-year warranty is provided. (The detailed reference will be written into the final contract.)
3. Professional staff for installation and training if needed.
4. Spare parts are supplying on time or doing some inventory if promising certain sales volume.
5. Faster delivery, we will support our sole agent to do the stock if good sales, then more convenient and helpful.
6. If the sales are good, we will arrange some famous exhibition fairs in the local or surroundings, and give our full support to our agents at the fair. We will provide our sample machines, catalog, DVD, manuals, etc. All native customers belong to our local agent, which is our basic rule. And we promise the final delivery is the same as displayed prototype.
Trade Terms:
1. Payment: T/T, Western Union, MoneyGram,PayPal; 30% deposits; 70% balance before deliverying.
2. Delivery Time: 3-5 days afterpayment will send Jinan XTLASER cheap metal 10w optical fiber laser marking machine price
3. MOQ: 1set Jinan XTLASER cheap metal 10w optical fiber laser marking machine price1
4. Package Informations: normally use wooden box to pack Jinan XTLASER cheap metal 10w optical fiber laser marking machine price
