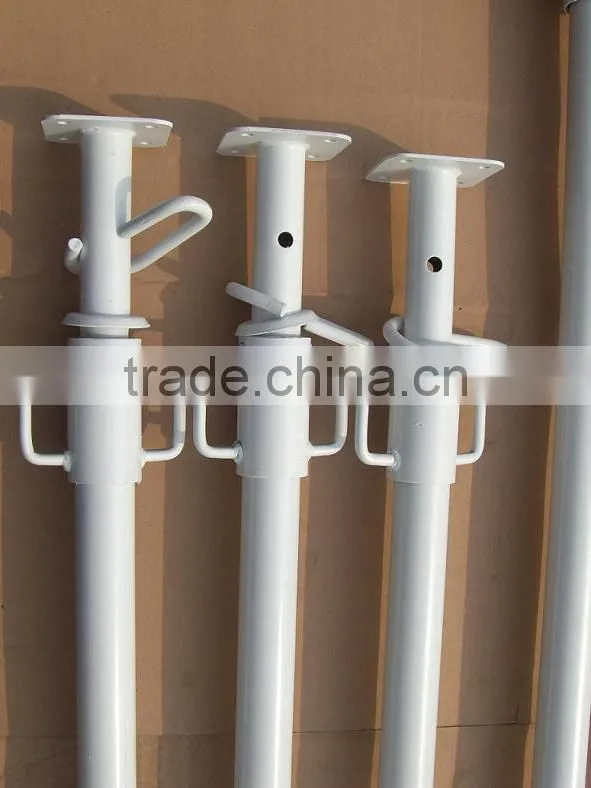

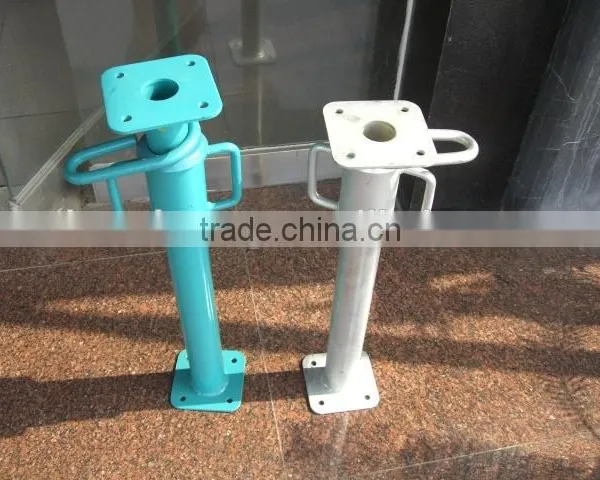

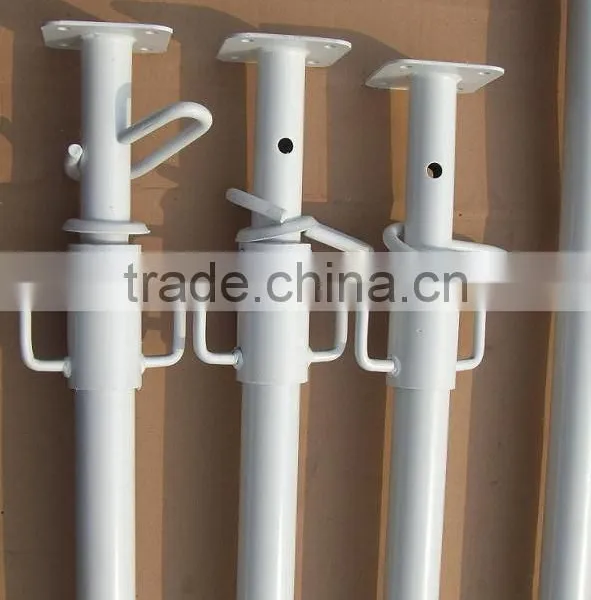

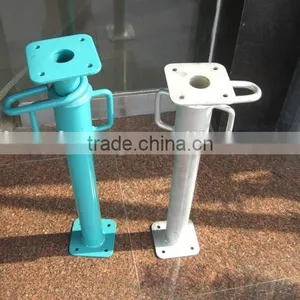

Building Material Shoring Steel Props Used In Formwork
Specification of shoring props
LIGHT DUTY PROPS |
|
|
|
|
Adjustable Heightht |
Outter Tube |
Inner Tube |
Top and Base Plates |
Weight(+/-3%) |
600-1100mm |
48*1.5mm |
40*1.5mm |
120*120*4.0mm |
3.8kg/PC |
900-1400mm |
48*1.5mm |
40*1.5mm |
120*120*4.0mm |
4.23kg/PC |
1200-1700mm |
48*1.5mm |
40*1.5mm |
120*120*4.0mm |
4.66kg/PC |
1600-3000mm |
48*1.6mm |
40*1.6mm |
120*120*4.0mm |
7.10kg/PC |
1800-3200mm |
48*1.6mm |
40*1.6mm |
120*120*4.0mm |
7.40kg/PC |
2000-3500mm |
48*1.8mm |
40*1.8mm |
120*120*4.0mm |
8.60kg/PC |
MIDDLE DUTY PROPS |
|
|
|
|
Adjustable Heightht |
Outter Tube |
Inner Tube |
Top and Base Plates |
Weight(+/-3%) |
1800-3200mm |
56*1.8mm |
48*1.8mm |
120*120*4.5mm |
9.68kg/PC |
2000-3500mm |
16*1.8mm |
48*1.8mm |
120*120*4.5mm |
10.33kg/PC |
2000-3600mm |
56*1.8mm |
48*1.8mm |
120*120*4.5mm |
10.57kg/PC |
2200-4000mm |
56*2.0mm |
48*2.0mm |
120*120*4.5mm |
12.44kg/PC |
HEAVY DUTY PROPS |
|
|
|
|
Adjustable Heightht |
Outter Tube |
Inner Tube |
Top and Base Plates |
Weight(+/-3%) |
2000-3600 |
60*2.0 |
48*2.0 |
120*120*5.0 |
11.71kg/PC |
2200-3900 |
60*2.0 |
48*2.0 |
120*120*5.0 |
12.45kg/PC |
2200-4000 |
60*2.0 |
48*2.0 |
120*120*5.0 |
12.74kg/PC |
2400-3900 |
60*2.0 |
48*2.0 |
120*120*5.0 |
12.33kg/PC |
2400-4000 |
60*2.0 |
48*2.0 |
120*120*5.0 |
12.62kg/PC |
3000-5500 |
60*2.0 |
48*3.0 |
120*120*5.0 |
23.60kg/PC |
3300-6000 |
60*2.0 |
48*3.0 |
120*120*5.0 |
25.50kg/PC |
TRIANGLE PROPS(Push-Pull prop/wall prop) |
|
|||
Adjustable Heightht |
Main Tube |
Solid Screw |
Top and Base Plates |
Weight(+/-3%) |
700-1000 |
48.3*3.25 |
OD:32 |
170*70*8.0 |
8.64kg/PC |
900-1200 |
48.3*3.25 |
OD:32 |
170*70*8.0 |
9.35kg/PC |
1700-2000 |
48.3*3.25 |
OD:32 |
170*70*8.0 |
12.22kg/PC |
2000-2300 |
48.3*3.25 |
OD:32 |
170*70*8.0 |
13.3kg/PC |
2200-2500 |
48.3*3.25 |
OD:32 |
170*70*8.0 |
14.02kg/PC |
2500-2800 |
48.3*3.25 |
OD:32 |
170*70*8.0 |
15.4kg/PC |
3000-3300 |
48.3*3.25 |
OD:32 |
170*70*8.0 |
17.3kg/PC |
Building Material Shoring Steel Props Used In Formwork
surface dealing of shoring props

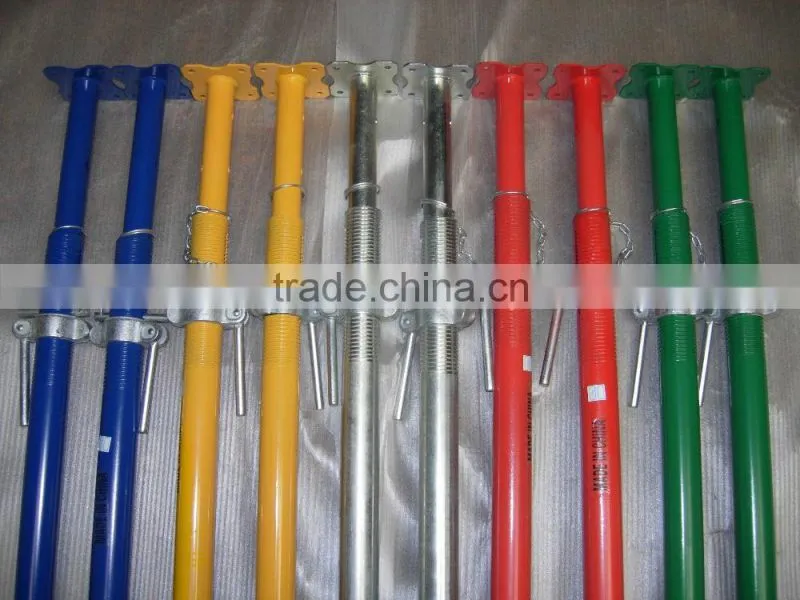

painting, galvanized, powder coated(different color accoring to your requirements)
base of shoring props
square, U head, flower and so on
Pin of shoring props
G pin, rope pin,line pin.
nut of shoring props
cup-nut, usual nut

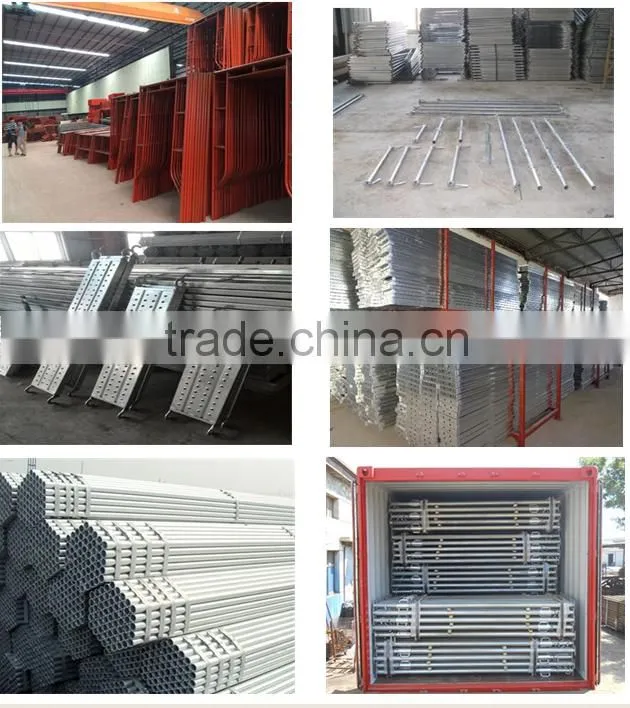

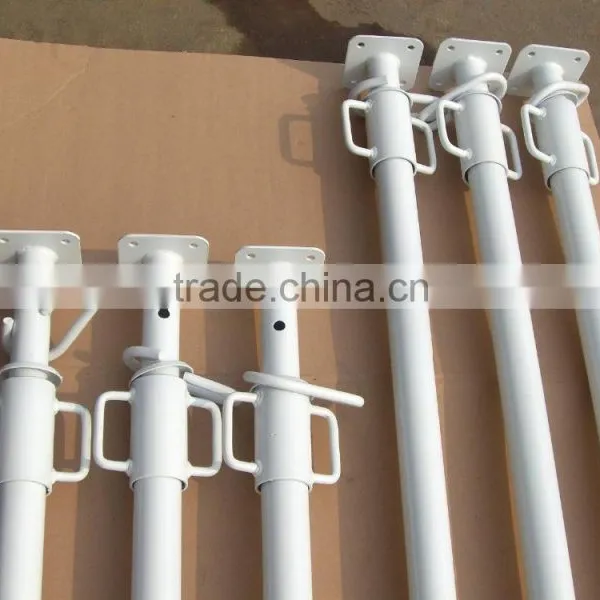

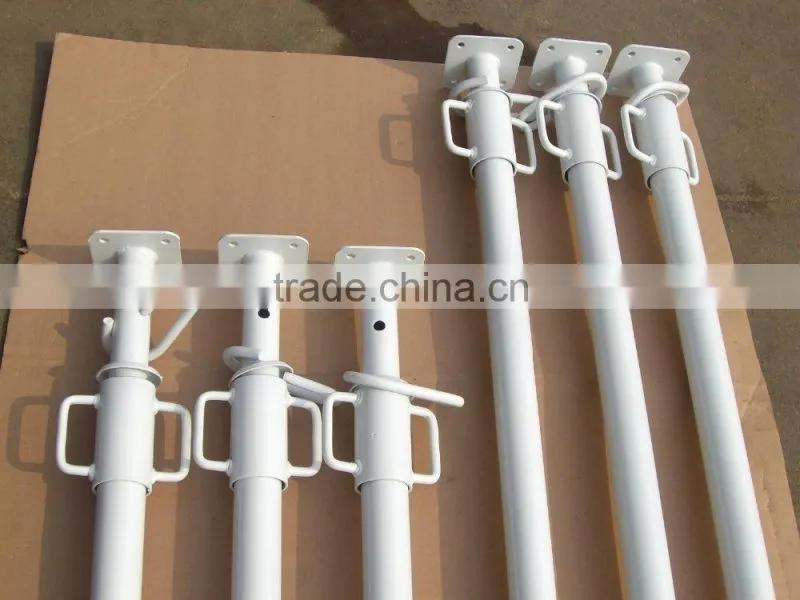

PRODUCT SHOW
1: Your inquiry related to our products & Price will be replied within 24hours
2: Well-trained&experienced staff are to answer all your inquires professional in English.
3:Working time :24hours online
4:OEM is highly Welcomed.
5:Your business relationship with us will be confidential to any third party.
6:Good after-sale service offered. please get back if you got any question.
1. Q: Are you a factory or trading company?
A: We are a factory and trading company.
2. Q: How can I visit there?
A: You can fly to Qingdao Airport directly and then we will go to Qingdao to pick up you.
3. Q: How can you provide us with the samples?
A: We will use the express to send the samples. If possible, the sample is free,
but the customers need pay the express fee.
Welcome to inquire Building Material Shoring Steel Props Used In Formwork
