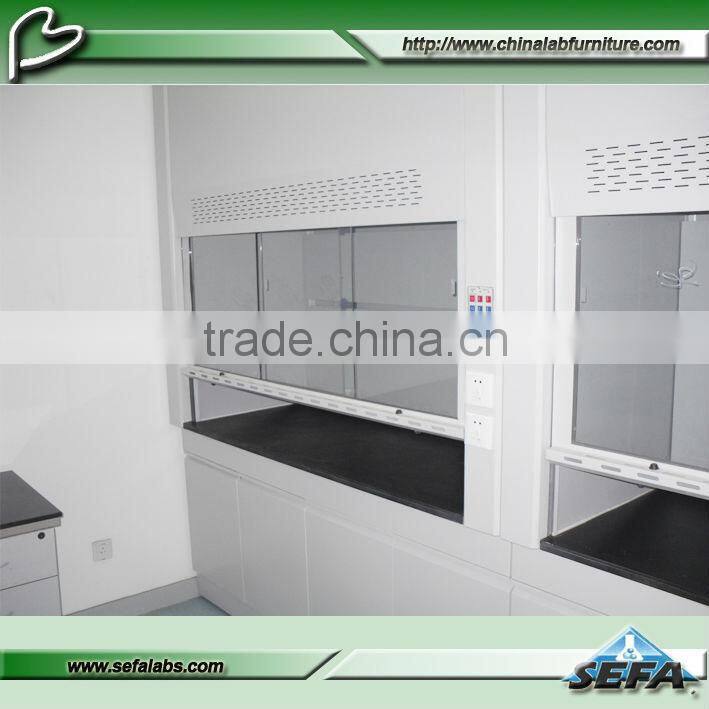

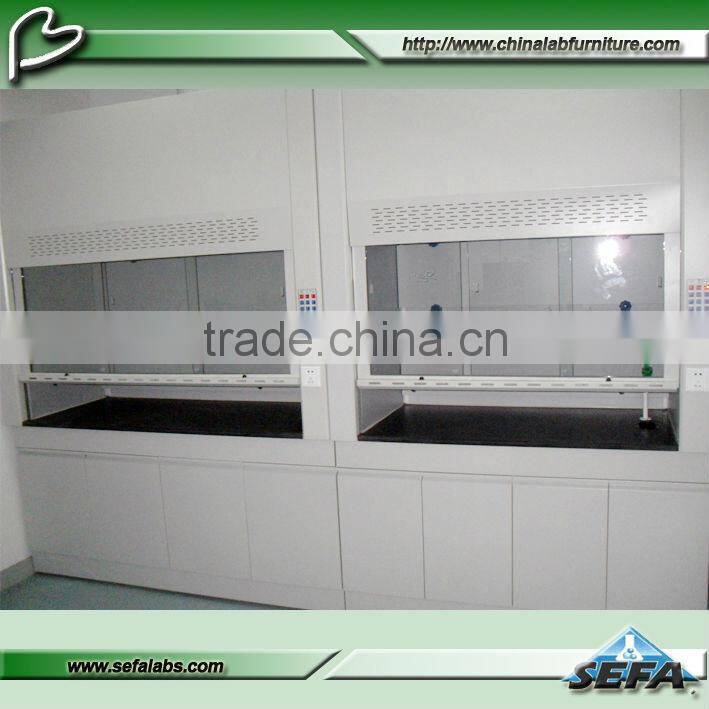

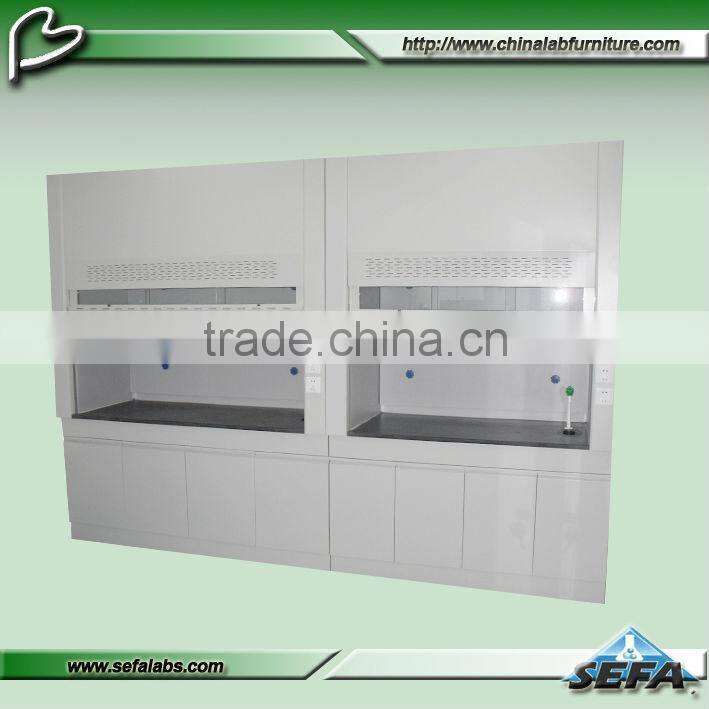

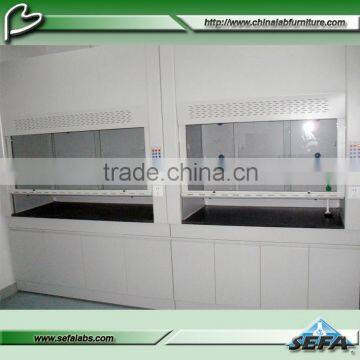

Fume Cupboard School Equiptment/fume Hood/ Lab Facility

Product Name

Fume hood

Size

1200(W)*850(D)*2350(L) mm;

1500(W)*850(D)*2350(L) mm;

1800(W)*850(D)*2350 (L) mm.

Color

Custom-made

Casework

1.2mm thickness of galvanized steel plate, after acid washing, phosphide and electrophoresis, sprayed with

good quality anti-corrosion static coating.

Inside Lining

4mm thickness of Compact.

Worktop

1)19/20mm thickness EPOXY, Black Color

3)20mm thickness GRANITE ,

4)25mm thickness STAINLESS STEEL

5)19mm thickness WILSONART CHEMSURF/POSTFORMED MALAMINE (FORMICA) Black ,

Gray Color

6)20mm thickness CERAMIC, Black Color

Sash

6mm of tempered glass.

Sash Handle

2mm galvanized steel powered with epoxy coating.

Illumination

with not less than 300 Lux 30W fluorescent lamp set

Cup sink

Oval shaped PP Cup sink

Water Tap

Molded in one piece copper water tap, epoxy powder coating surface with a ceramic valve.

Valve

1Water valve. (by custom)

Exhausting Duct

Anti-corrosion PP/PVC duct

Plinth

With 1.5mm thickness of galvanizedsteel plate, after acid washing, phosphide and ‘dian yong’,

sprayed with good quality anti-corrosion static coating.

Technical specification

Noise: less than 60db (International standard), Face velocity: 0.5m/s, 220V

Function

With an intelligent automatic delay protection device to exhaust residual corrosion air completely

and prolong the service time of fume cupboard.

Socket

4 Electric sockets, (By custom)

Exhaust fan

not include exhausting duct &exhaust fan, will provide after receiving the detailed design of

exhaustion duct.
