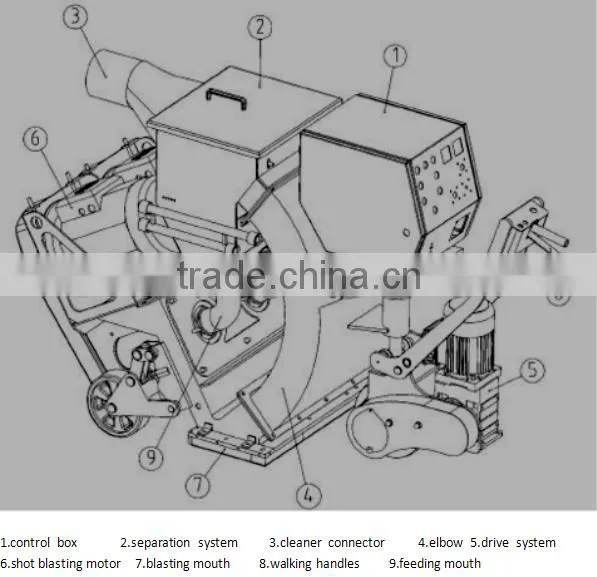

automatic shotblastin machine
Horizontal mobile shot blasting machine is an environmental-friendly produce specifically developed for construction and maintenance of various kinds of roads, it can keep dust-free and non-pollution during the construction, and the abrasive can be automatically recycled, the equipment can be used for: Roughened concrete bridge deck waterproofing,Asphalt pavement cleaning and roughening To increase surface roughness. Restored the skid resistance of the pavement, tunnels and bridges. Asphalt pavement weeping and indicator line cleaned up. Steel deck anti-corrosion coating process, airport road clean plastic, line and recovery the friction coefficient
Main performance characteristics
Major components are famous brand,(ABB electric machine, AB soft starter, DELTA converter, SKF bearing), abrasive-casting room introduces wear-resistant materials to guarantee the service life, wearing parts such as blasting head and oriented jacket are cast in wear-resistant materials, and the service life could reach 20000m³(cement concrete pavement).
Dust collector through a three-way cleaning dust, using South Korea pulse valve, according to the control principles to ensure the circulation loop smoothly. Using imported dust hose connected to ensure wear resistance and reliable, fan drive assembly using SKF bearings, to ensure stable and reliable transmission
Advantage of the shot blasting machine
1.Uniform rough surface; it does not destroy the original pavement structure and flatness;
2.Completely removed from the floating pulp and sand; 100% "wound"
3.Explicit, but at the same time without causing loose aggregate and micro cracks;
4.Disposable construction, no need to clean-up; no environmental pollution;
5.Early exposure to concrete defects;
6.While meeting the requirements of macro texture and micro texture; suitable for waterproof coating, pavement technology;
7.increase the waterproof material surface`s adhesion and provide some penetration effect;
Technical data of the shot blasting machine
Model |
DPW1255DB |
DPW1255DA |
DPW2550DA |
DPW2800DA |
DPW2-40DA |
|
Power |
8kw |
18kw |
29kw |
38kw |
46.2kw |
|
|
Effective cleaning width |
255mm |
225mm |
550mm |
800mm |
1000mm |
|
|
Cleaning efficiency for concrete surface |
>130m2/h |
>1800m2/h |
>300m2/h |
>450m2/h |
>550m2/h |
|
Travel speed |
0.5-30m/min |
0.5-25m/min |
0.5-25m/min |
0.5-20m/min |
0.5-25m/min |
|
Dust reclaiming |
Blowback dust collector XC0403D |
Blowback dust collector XC0406DA |
Blowback dust collector XC0408D |
Blowback dust collector XC0408C |
||
Walking style |
Horizontal,self-propelled |
|||||
Dimension |
1650*400*950mm |
1910*425*1035mm |
2050*720*1460mm |
2150*980*1450mm |
2270*1170*1435mm |
|
Weight |
220kg |
400kg |
595kg |
770kg |
1300kg |
|
In order to get different surface treatment efficiency, you can do it as below:
1.choose different size and shape shot
2.Adjust the walking speeding of the shot blasting machine
3.Control the shot`s propellant flow

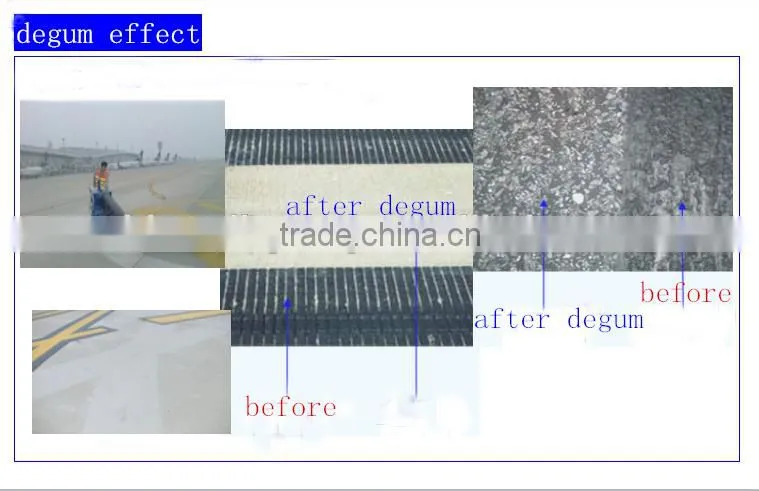

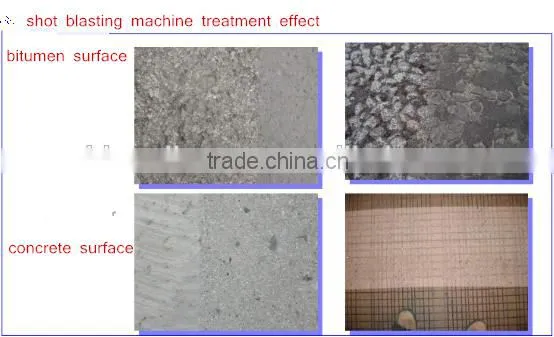

treat effect of the shot blasting machine:

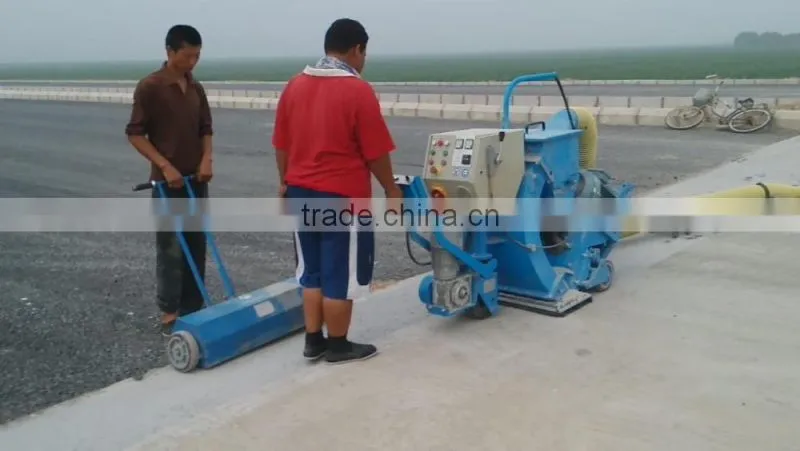

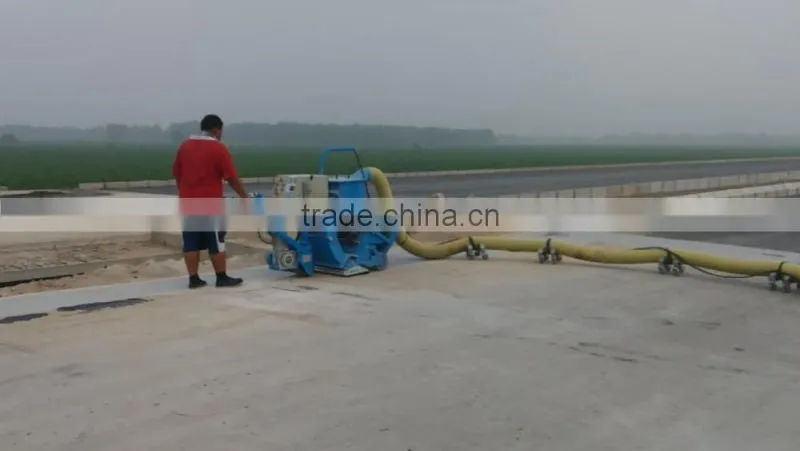

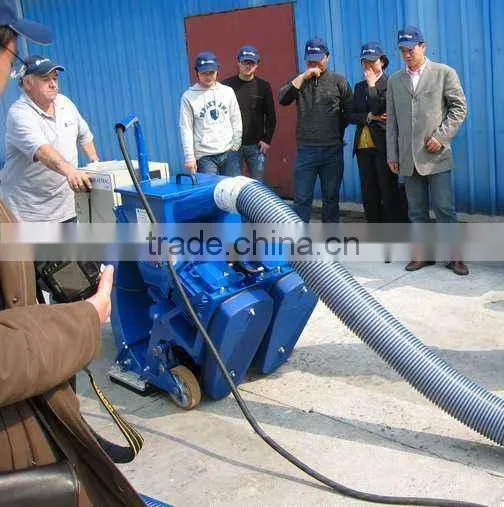

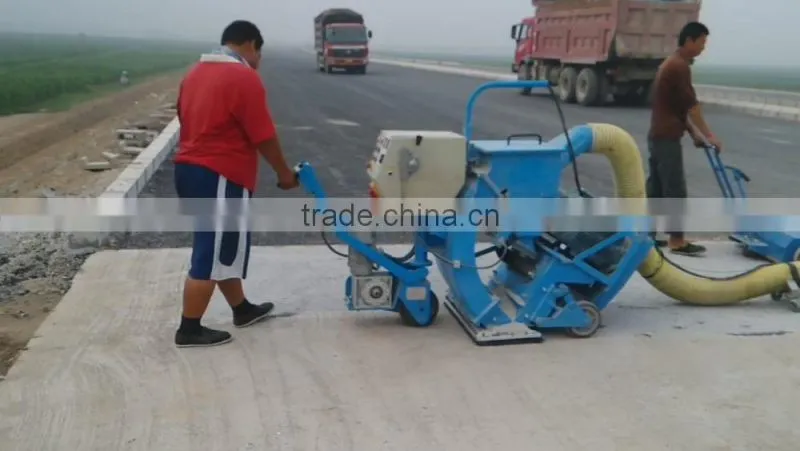

working photos of the shot blasting machine:
if you want to know more info and price of the shot blasting machine, please contact with me :
