Specifications
cement pipe forming machinery1.Inner diameters:200-2400mm
2.Length:1000-5000mm
3.Low noise
4.High quality.
Vertical Extruding Cement Pipe Making Machine (200-2400mm), concrete pipe making machine
Describe Of Reinforced Concrete Pipe Making Machine :
Suspension Roller type Concrete pipe machine is a kind of perfect machine and equipment to produce reinforced concrete pipes and Pre-stressed concrete pipe. This machine is capable to make pipes with diameter from 300-2000mm and with length from2-4meters. We can design many kinds of the pipe joint, including flush joint, socket& spigot joint And all the concrete pipes are widely used in administrative drainage, agricultural field irrigation, road culvert and deep water well.
Working Principle Of Reinforced Concrete Pipe Making Machine :
This machine uses the Roller to support the pipe mould, and produce the roller force to concrete in the mould. When the roller rotate at a high speed, the concrete in the mould will spread in the inner wall of the pipe mould and form a cement pipe with the centrifugal force, and when the mould with the inner concrete pass on the roller, the concrete between the mould and the roller will be compacted solid to form a pipe.
Reinforced Concrete Pipe Making Machine Technical Parameters
Model |
XG600 |
XG1200 |
XG1500 |
Pipe Diameter(mm) |
300-600 |
800-1200 |
1000-1500 |
Pipe length(mm) |
2000 |
2000 |
2000 |
Motor power(Kw) |
15 |
30 |
55 |
Model of Motor |
YCT225-4B |
YCT315-4A |
YCT355-4A |
Roller Diameter(mm) |
Ø140 |
Ø273 |
Ø325 |
Roller Rotation Speed |
83-833(R/min) |
69-687(R/min) |
65-653(R/min) |
Advantages Of Reinforced Concrete Pipe Making Machine :
(a) short production cycle :because of the good effect of the roller to compact the concrete, every pipe just need 5 minutes with high speed roller rotation.
(b) This pipe use the dry cast material, there will no waste cement mud, then it will not pollute environment .
(c) During the production, the noise is very low, it is about 80-90 dB
(d) The concrete pipe is with high pressure load and with high production efficiency.
(e) This machine is simple in operation, rotates steadily, is reliable and durable in use, is low in fault rate .

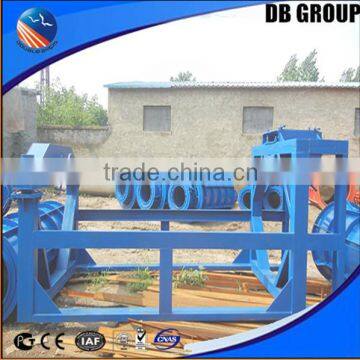

Detail Photos Of the Reinforced Concrete Pipe Making Machine :

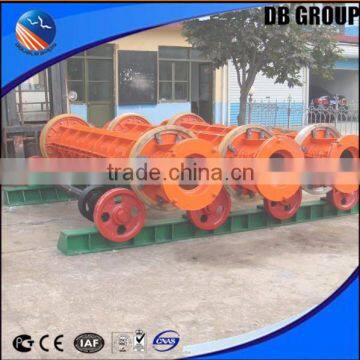

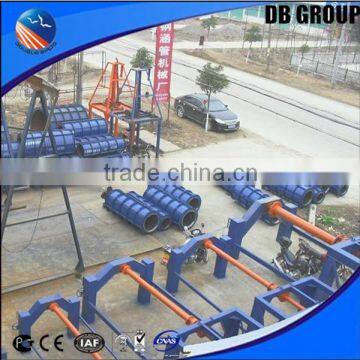

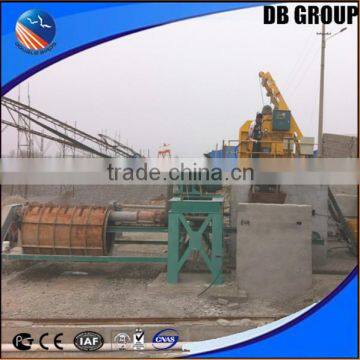

Factory Photos Of Reinforced Concrete Pipe Making Machine :
Transport Photos Of Reinforced Concrete Pipe Making Machine :
If you want to know more, please do not hesitate, take the phone and call me:
