XT-ELECTRIC HEATING DRYING & CURING OVEN
1. BRIEF INTRODUCTION OF XT-ELECTRIC HEATING DRYING & CURING OVEN
XT Electric Heating Powder Coating Drying Oven is heated by electricity because of the features that easy-getting , clean and no pollution etc;
This type of oven is suitable for the new factory and smaller sized oven requirement;
2. SELECTIVE HEATING ENERGY FROM US:
3. SELECTIVE BURNER (BRAND: ITALY "RIELLO"):
BRAND: GOOD QUAIITY, DURABLE AND TRUSTABLE BRAND;
4. XT ELECTRIC OVEN TECHNICAL REFERENCE
| No. | Items | Drying oven | Curing oven |
| 1) | Structure | Assembling or intergral structure |
Assembling or intergral structure |
| 2) | Dimension | Customized according to requirment | Customized according to requirment |
| 3) |
Interior Material |
Galvanizing sheet, Stainless steel sheet are available; |
Galvanizing sheet, Stainless steel sheet are available; |
| 3) | Exterior material |
Powder coating CRS sheet ,galvanizing sheet and stailess is customized |
Powder coating CRS sheet ,galvanizing sheet and stailess is customized |
| 4) |
Heating energy |
By Electricity |
By Electricity |
| 5) | Heating insulation | 80~300mm rock wool , designed according different temperature requirement |
80~300mm rock wool , designed according different temperature requirement |
| 6) |
Heating burner |
U-type Stainless heater |
U-type Stainless heater |
| 7) |
Hot air circulation |
Bottom hot air blowing-in and top hot air returning back mode which greatly take good use of the heating , reduce the heating loss and saving energy consumption cost |
Bottom hot air blowing-in and top hot air returning back mode which greatly take good use of the heating , reduce the heating loss and saving energy consumption cost |
| 8) |
Rated temperature |
220°C or customized according to requirement; |
220°C or customized according to requirement; |
| 9) |
Working temperature |
RT~ 140 °C Or designed according to requirement |
180~ 200 °C Or designed according to requirement |
| 10) |
Temperature Uniformity |
±5℃ |
±5℃ |
| 11) | Exterior oven Surface temperature | ≤ 15℃ between inside oven temperature and ambient air temperature |
≤ 15℃ between inside oven temperature and ambient air temperature
|
| 12) | Temperature Control system |
Automatic temperature control system by the way to automatically" start up" or" shut off" the heating burner according to pre-setting required temperature range; Digital display; |
Automatic temperature control system by the way to automatically" start up" or" shut off" the heating burner according to pre-setting required temperature range; Digital display; |
| 13) | Circulation blower |
Good quality brand; Blower blade: 16Mn Air capacity: Designed according to actual conditions and terms of the oven |
Good quality brand; Blower blade: 16Mn Air capacity: Designed according to actual conditions and terms of the oven; |
| 14) | Security design |
Sole advanced anti-explosion desig; Combined Locking design for security; If GAS heating, gas leakage device is equipped according to requirement; |
Sole advanced anti-explosion desig;
Combined Locking design for security; If GAS heating, gas leakage device is equipped according to requirement; |
| 15) | Oven doors | One side or two side double swing doors design are according to requirement |
One side or two side double swing doors design are according to requirement |
5. CUSTOM OVEN CONVEYOR SYSTEM FOR OVEN SYSTEM:
6. GENERAL PACKING CONFIGURATION:
- Oven body (assembling or intergral structure) Full set
- Heaters of heating cabin Full set
- Conveyor system Full set
- Electric Control box Full set
- Hot air heating resitance blower Full set
-
Another spare parts and accessories Full set

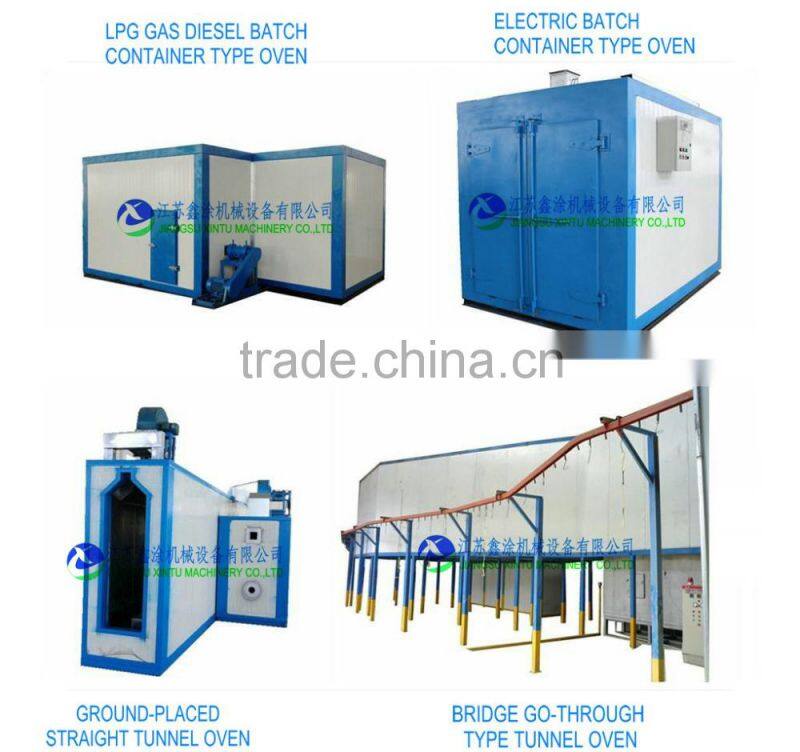

7. REFERENCE PHOTOS:
8. TRANSPORATION:
8. REFRENCE PHOTOS:
We are sincerely welcome your visting our factory. If any questions, please don't hesitate contact with me by following contact infomation:
