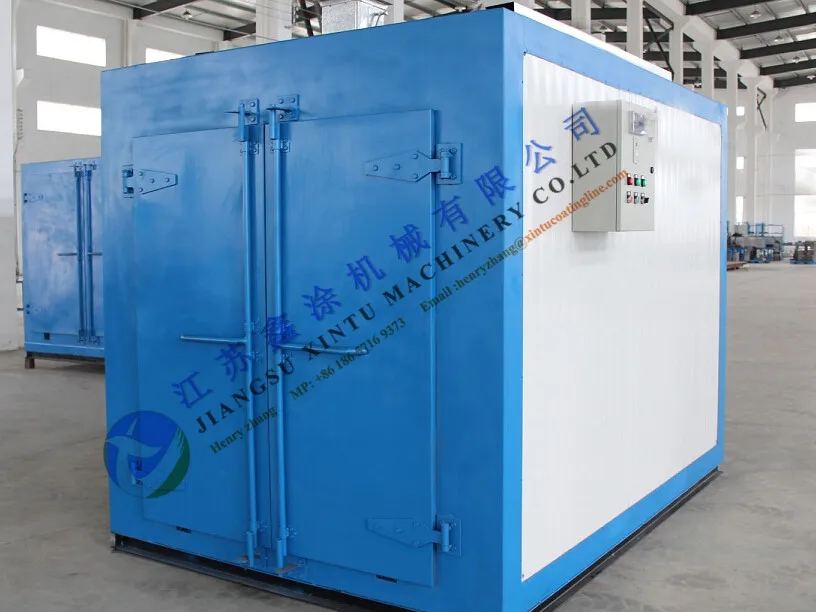

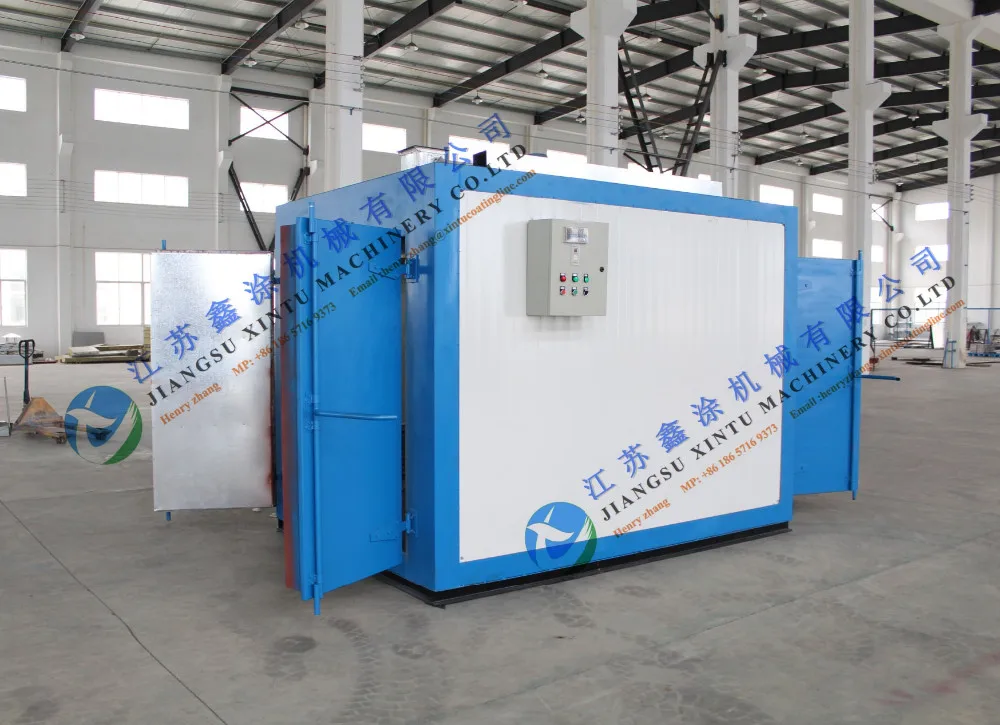

Electric Powder Curing Oven

Name: Electric Powder Curing Oven
Brand: XINTU
SKU: 133947419
Availability: InStock

US$ 1 - 20,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Coating Production Line

Substrate:

Steel

Jiangsu Xintu Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI CHINA

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Coating Production Line

Substrate Steel

Coating Powder Coating

Place of Origin Jiangsu, China

Brand Name XINTU

Model Number XT-ELECTRIC CURING OVEN

Voltage 220V/380V

Power(W) Customized

Dimension(L*W*H) Customized

Weight Customzied

Certification SGS CE ISO9001:2008

Warranty 12 Months

After-sales Service Provided Engineers available to service machinery overseas

BRIEF INTRODUCTION

XT Electric Heating Powder Coating Drying or curing Oven is heated by electricity because of the

features that easy-getting ,clean and no pollution etc;
This type of oven is suitable for the new factory and smaller sized oven requirement;

TECHNICAL REFERENCE

ITEMS	DRYING OVEN	CURING OVEN
*Oven Structure*	Assembling or Intergral oven structure
*Function*	Drying off the water	Curing the Plastic powder
Inside Wall	Galvanizing sheet or stainless sheet
Insulation Wall	80~300mm Rock wool is customized
Outerside wall	Coating CRS sheet, Galvanizing sheet, stainless sheet are available
Heating Burner	Customized industrial U-type Stainless heater
Hot air Circulation	Bottom hot air blowing-in and top hot air returning back mode which greatly take good use of the heating , reduce the heating loss and saving energy consumption cost;
Rated Temperature	220°C or customized according to requirement;
Working Temperature	RT~ 140 °C Or according to requirement	RT~ 200 °C Or according to requirement
Tem. Uniformity	±5℃
Temperature Control	Automatic temperature control system by the way to automatically" start up" or" shut off" the heating burner according to pre-setting required temperature range; Digital display;
Circulation blower	Good quality brand; Blower blade: 16Mn Air capacity: Designed according to actual conditions and terms of the oven
Security design	Sole advanced anti-explosion desig;Combined Locking design for security If GAS heating, gas leakage device is equipped according to requirement;
Oven doors	One side or two side double swing doors design are according to requirement
