Wooden Slat Wall Panel/slot Boards

Name: Wooden Slat Wall Panel/slot Boards
Brand: chenming
SKU: 133938261
Availability: InStock

US$ 10 - 19.5 MOQ: 22 Pieces

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

chenming

Model Number:

CM-SW

Chenming Industry & Commerce Shouguang Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name chenming

Model Number CM-SW

Material Other, MDF, MDF

Feature Single-sided

Type Supermarket Rack

Style Light Duty

Capacity 50-150kg/layer

Layer 1-7

Wooden slat wall panel/slot boards

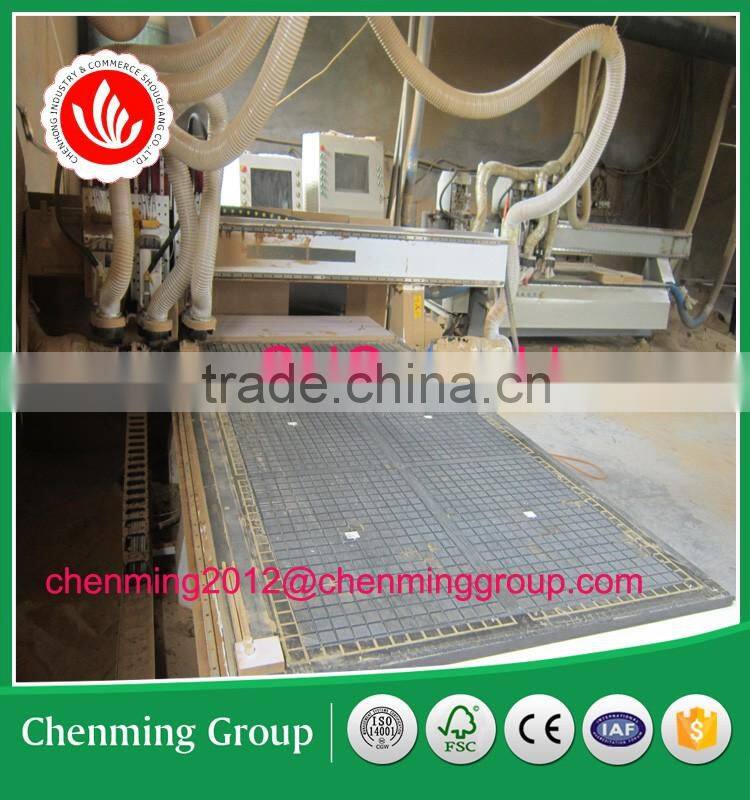

The slots are made by CNC machine, which is controlled by computer, makes the space

between slots more accurate, the slots more straight, and the slot edge more perfect.

1. Product Specification:

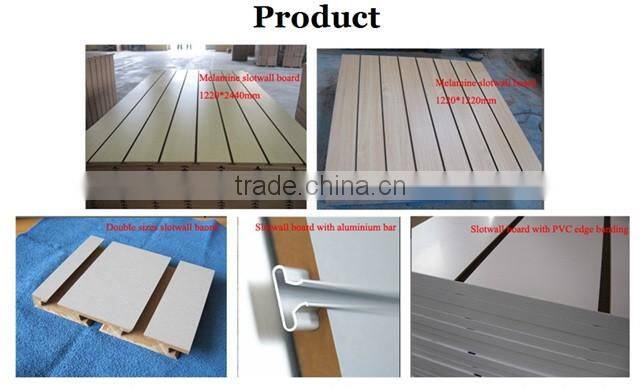

Name	Slatwall,slot board,slotted board,grooved board,slotwall

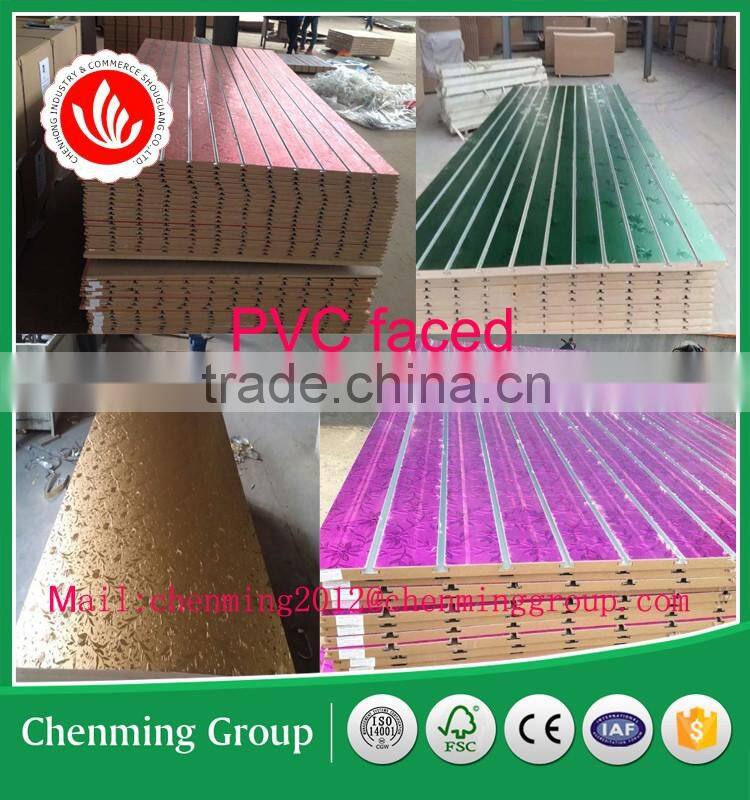

Base board	Melamine /PVC faced MDF,Raw MDF
Slatwall Size (mm)	12202440mm ,12201220mm,1200*1200mm or request
Thickness(mm)	14mm,15mm,16mm,17mm,18mm

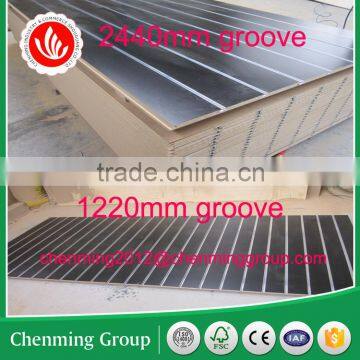

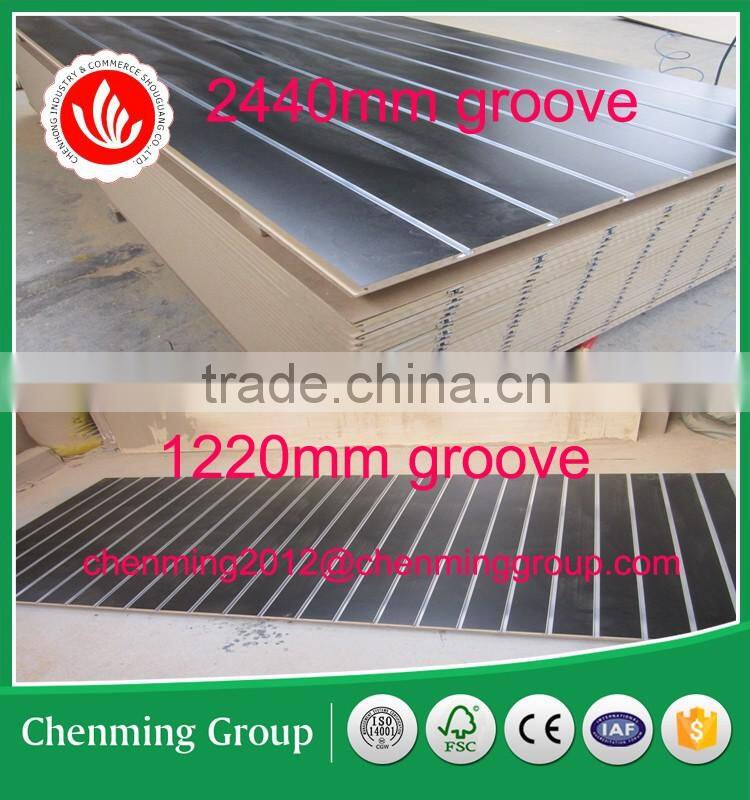

Slot length	1220mm,2440mm
Slot distance	75mm,100mm,150mm,200mm,300mm or as request

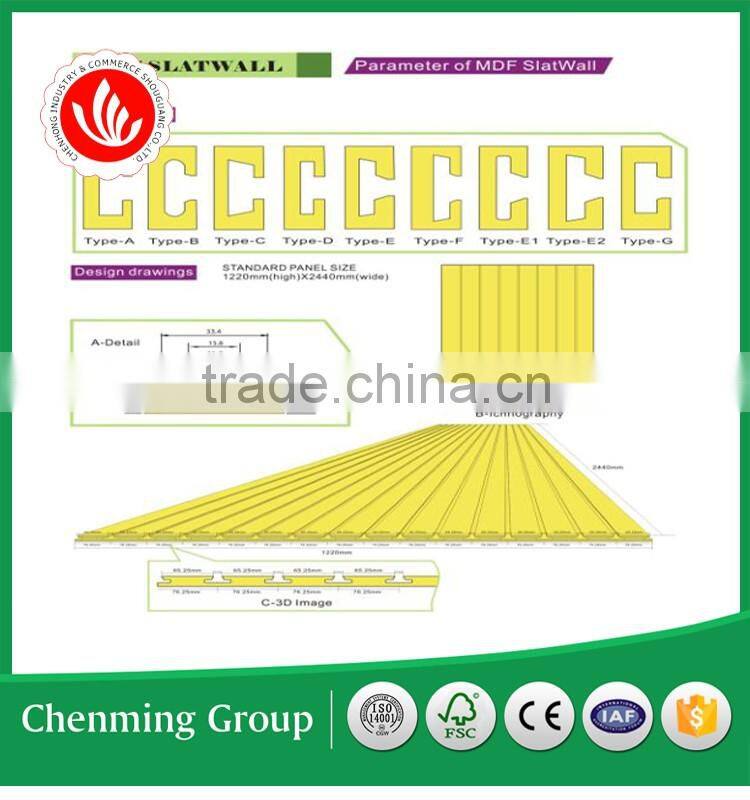

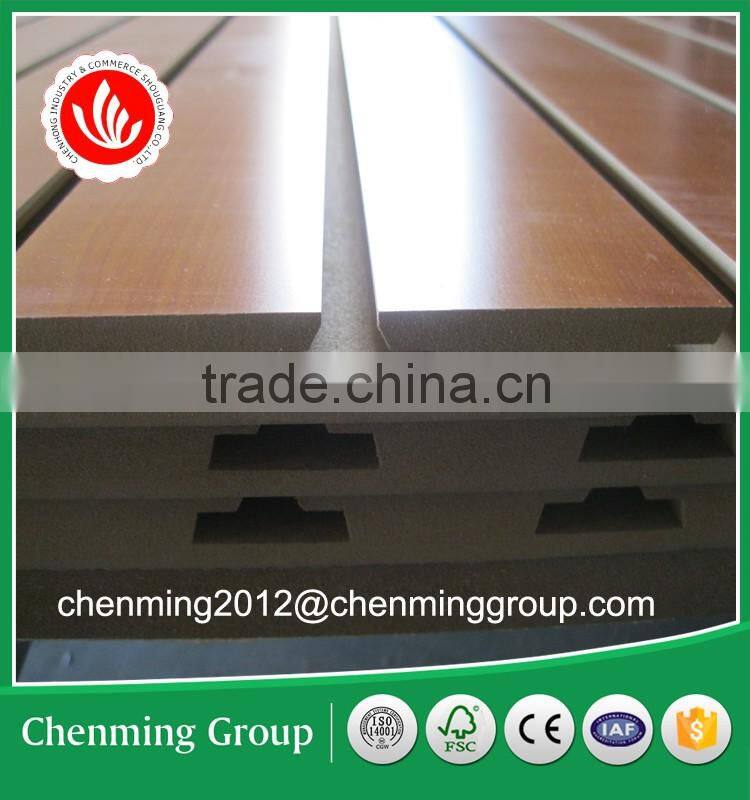

Groove type	Rectangle,ellipse,trapezoid.

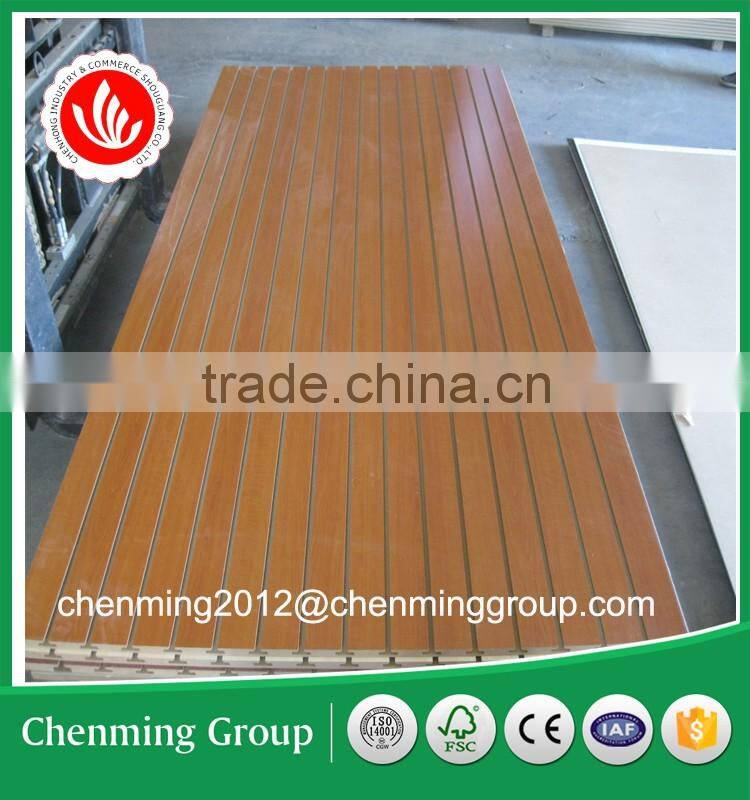

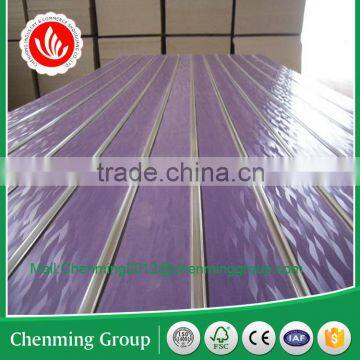

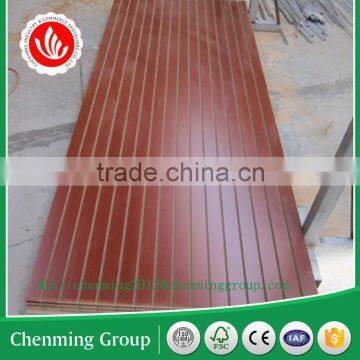

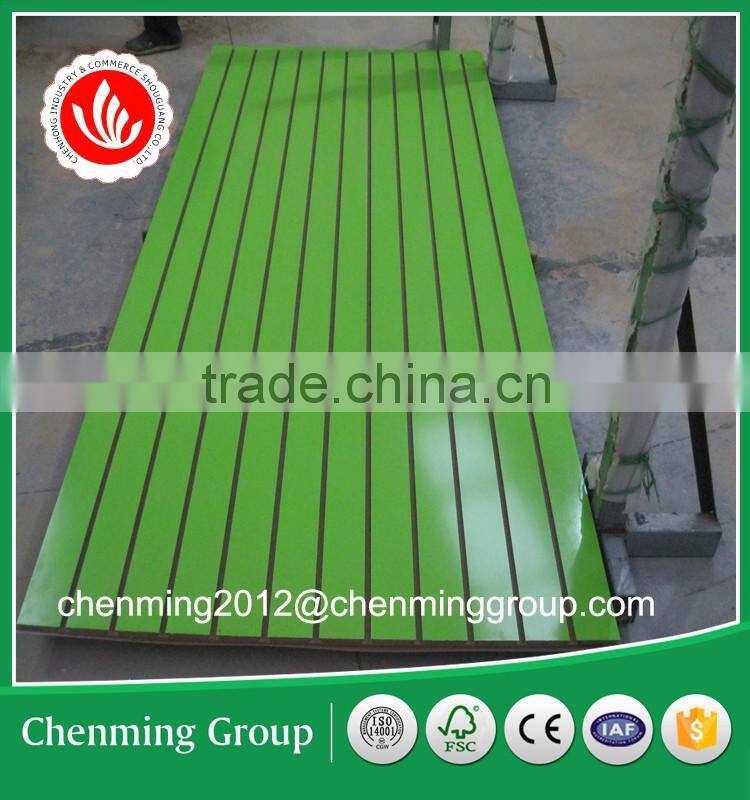

Surface color	Red,black,sapele,wenge,rose red,pink etc,more than 300 types for your choice .
Surface finish	Matt,shining,textured,magic,piwen,mosaic,embossed
End side 1	Full groove

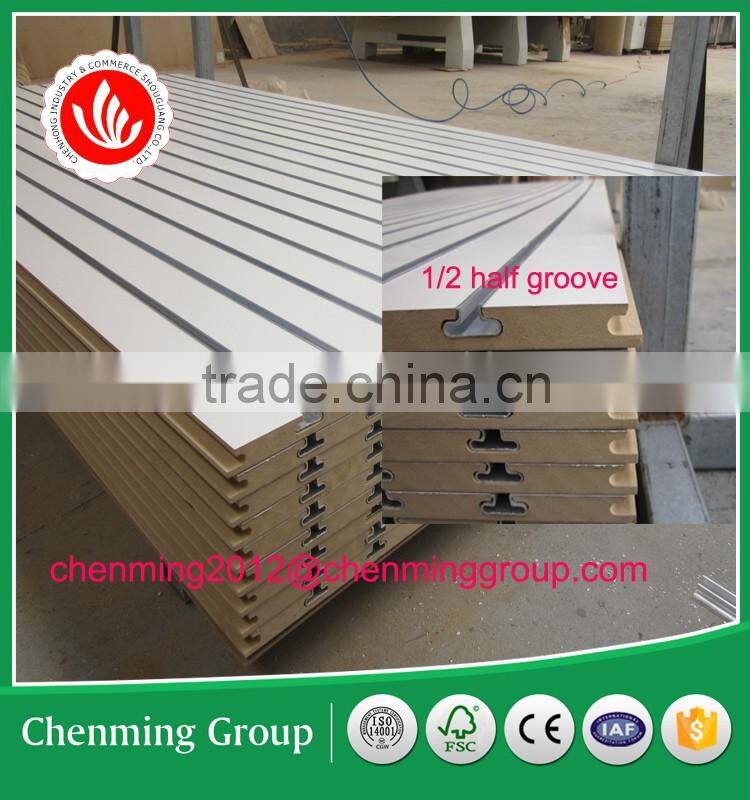

End side 2	Half groove(1/2 groove at the top and bottom to allow the panels to be installed one and another without a seam)
Loading capability	15kg~30kg

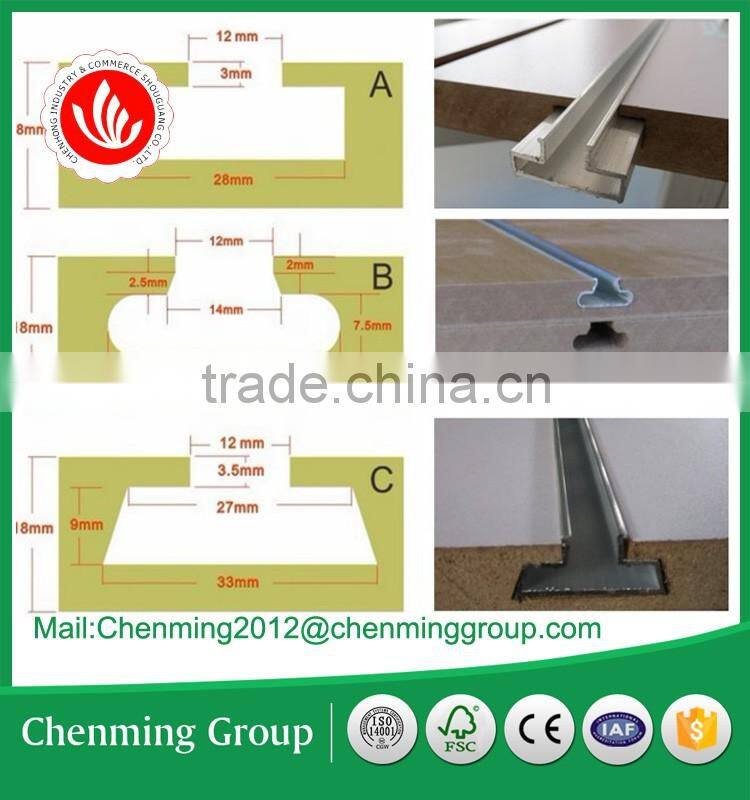

Accessories	1).Plastic bar/PVC bar
Accessories	2).aluminium bar, thickness is 0.4mm,0.5mm, 0.6mm,0.8mm,1.0mm or customize.

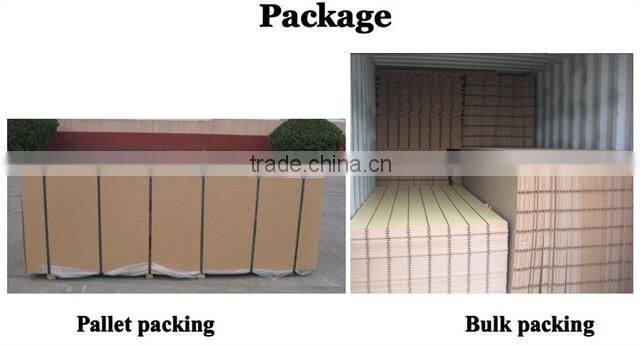

Packing	Loose packing or pallet packing
Board Weight	32~40 Kg per sheet.

2. Usage

It is directly used for display board in retail stores and suppermarket,
It is used for furniture making,such as shopfitting, display rack, storage cabinet, garage cabinet

3.Payment Terms

Payment: 30% T/T deposit before production and balance against copy of B/L.L/C.
Production Lead Time: within 15 days after get the deposit.
Shipping Methods: By vessel.
FOB Shipping Port: Qingdao port or Lianyungang port,China.
If you want EXW/CIF/CNF term instead of FOB, please specify.if not, FOB price will be quoted under inquiry.

4. Our Service

Your inquiry related to our product & price will be replied within 24hours.
Free sample are available.
Well-trained & experienced staff are to answer all your inquiries in English of course.
Your business relationship with us will be confidential to any third party.
Good after-sale service offered, please get back if you got question.
