Shanghai factory high quality laser cutter control board
1. Technical Parameter of laser cutter control board:

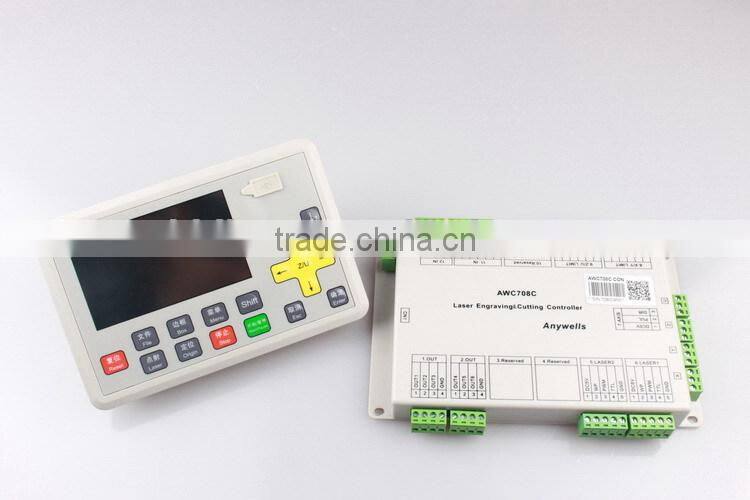

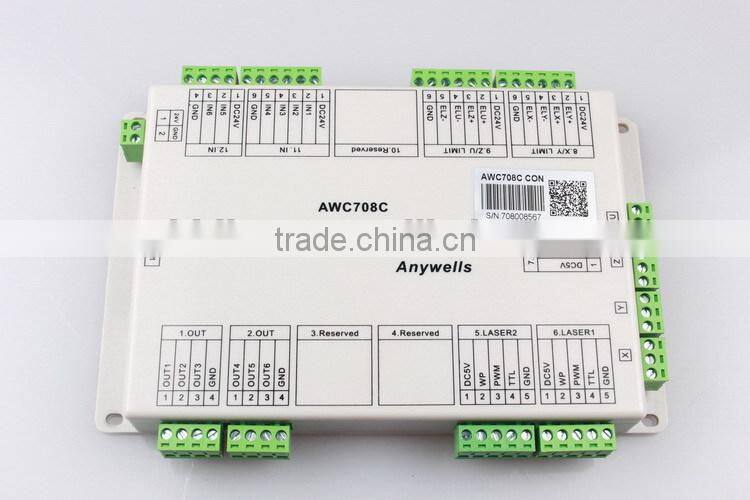

1) AWC708C is an independent DSP laser controller used for the laser cutting and engraving systems.
2) It support up to 4 different axis.
3) It can work together with a PC or read files from U-disk directly and work without PC. User can operate the whole work directly from the display easily.
4) AWC708C laser controller: for making industrial laser systems and diy laser engraver and diy laser cutter and upgrading your old laser systems.
2. Features of Anywells AWC708C Co2 Laser Motion Controller System:
1) Support CorelDraw and AutoCad;
2) PWM output or Analog output;
3) Optical isolation for data In/Out;
4) Mutliple motor configuration;

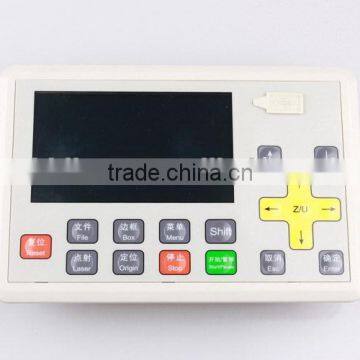

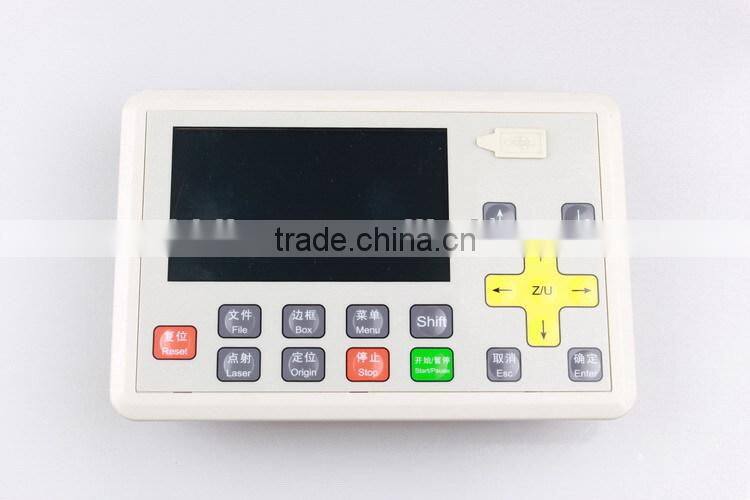

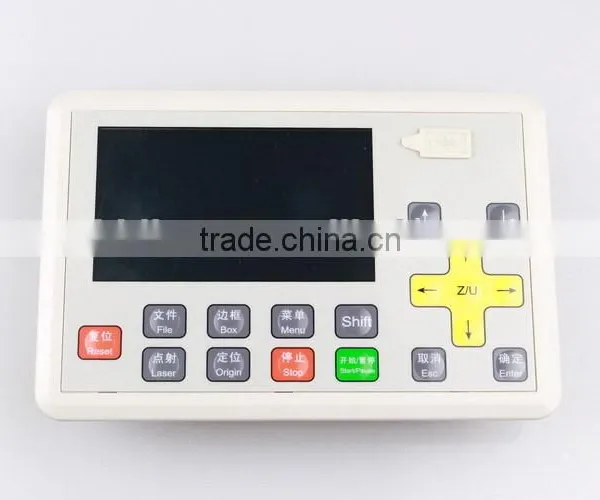

5) LCD panel control;
6) Support Dump Drive (no PC need);
7) Memory recovery after power surge;
8) Support Vector and Raster;
9) Dual power supply control. Allow two laser to fire simultanously;
10) Interface port: USB;
11) 4 Axis control: X,Y,Z,U;
12) Dual power supply control for PWM or analog control;
13) Power: DC24V (no need to add 5V);
14) LCD Control size: 150mm x 100mm.
| NO. | Part Name | Pieces | Description |
| 1 | AWC708C | 1 | Controller board with Aluminum case |
| 2 | LCD Panel | 1 | Size: 150mmX100mm |

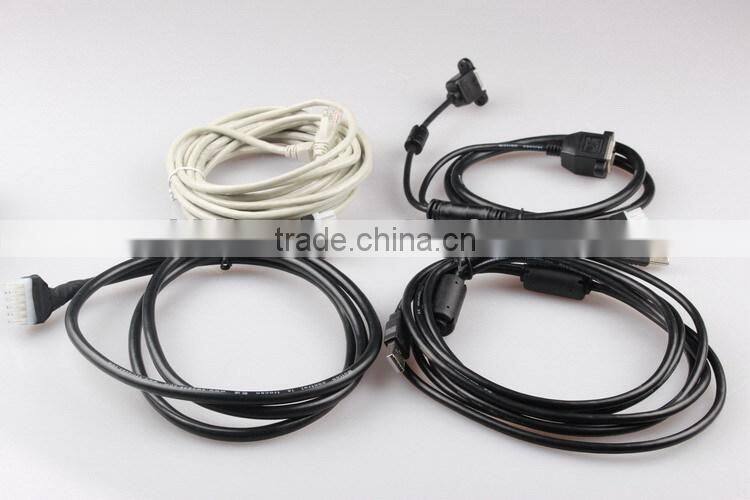

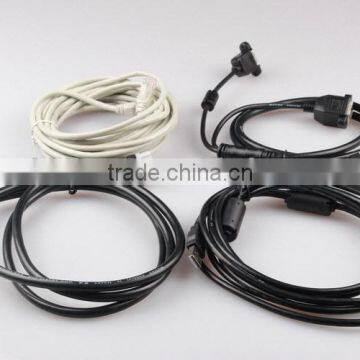

| 3 | Cable | 4 | USB cable + USB extended cable + net work cable + Panel connection cable |
| 4 | Laser CAD | 1 | Laser CAD software |
Product parameters of laser cutter control board
Shanghai Kraus&Noble Industrial Co.,Ltd was founded in 2002. For 14 years, K&N laser has always been devoted to studying and manufacturing laser cutting, engraving and marking etc.
With all K&N staff's persistence and hard working, K&N laser has developed to a large-scale international manufacturing company. K&N's product technology stems from Germany and is devoted to designing,test and production according to the European industry standard. More accurate, more automatical and higher quality's products with intimate after-sales service enable K&N to be the leader of laser industry. Suitable services for customers,3 year warranty products, standard scientific management make K&N earn the best reputation and worldwide trusted customers.
For 14 years,K&N laser machines cover all Chinese markets and also are very popular in more than 80 countries such as America, West Europe,South Asian, East Asian etc.K&N laser will try our best to serve for you suitable laser solutions.Welcome to join K&N group, share top laser products and services together with worldwide customers.
Thank you very much for viewing this page, and wish you a nice day!
Please click the button below to view our homepage.
