Automatic Bag on Valve Filling Machine for Shaving Gel

Automatic Bag on Valve Filling Machine for Shaving Gel photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
Food, Commodity, Medical, Chemical
Packaging Type:
Cans
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Food, Commodity, Medical, Chemical
Packaging Type Cans
Packaging Material Metal
Automatic Grade Automatic
Driven Type Pneumatic
Place of Origin Jiangsu, China
Brand Name MEITAR
Model Number QGQ2Y
Certification ISO9001:2000
After-sales Service Provided Engineers available to service machinery overseas

Specifications

bag on valve filling machine for big viscosity such as shaving gel, tooth gel, shaving foam and food cream.

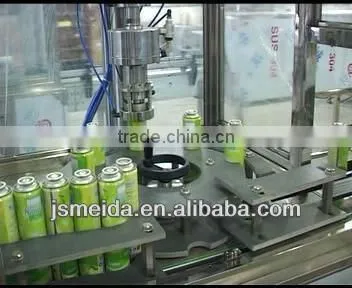

This automatic filling  line is specifically designed to fill bag on valve aerosol products with big viscosity, it has the feature of fast speed, high automation, intelligent, stable and reliable. Some working stations such as automatic weight checking mahcine, automatic water bath leakage testing machine, automatic actuator pressing machine, automatic cap pressing machine are optional depending on customer’s budget.

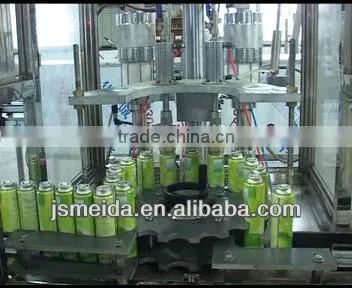

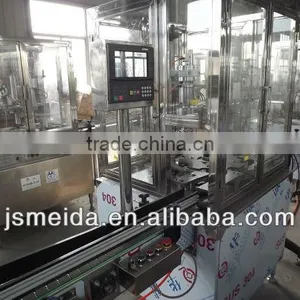

Automatic crimping machine combines the function of vacuumizing, propellant filling and crmping into a single working head, controlled by PLC system with a friendly touch screen interface, easy for parameters setting, process supervision and problem diagnose. Propellant can be more options such as N2, Co2, Ar, LPG even comperssed air for economic considering.



Crimping diameter

Φ26.5-28mm

Crimping depth

4.5-5.5mm

Propellant pressure tolerance

≤ 0.02MPa

Filling and crimping speed

1200-1500cans/hour

Applicable valve

bag on valve

Applicable can

height

70-330mm

diameter

30-70mm

Compressed air consumption

1m3/min at pressure 0.6-0.7MPa

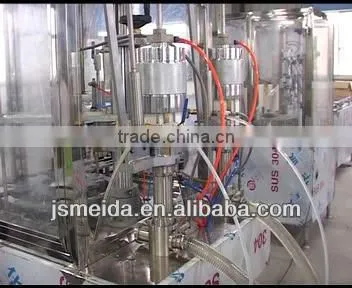

There are two working heads seated on same working table for big viscosity liquid flling, such as shaving gel, tooth gel, shaving foam, food cream and tooth paste. No matter water base, oil base or alcohol based liquid can be filled. There is an additional unit for Isopentane filling at the liquid filling head and mixing with liquid material.



Filling capacity

10-250ml each head

Total filling volume

10-500ml (can be customized)

Filling tolerance

±1%

ratio of isopentate VS. material

3-12% adjustable

Compressed air consumption

2m3/min at pressure 0.6-0.8Mpa



 automatic bag on valve filling machine for shaving gelautomatic bag on valve filling machine for shaving gelautomatic bag on valve filling machine for shaving gel
