Combined Radar Activation and Active Infrared Safety Sensor

Name: Combined Radar Activation and Active Infrared Safety Sensor
Brand: olide
SKU: 133924065

US$ 10 - 25 MOQ: 50 Sets

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

olide

Model Number:

CSD301

Shaoxing Chaoshidai Automatic Door Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

NINGBO OR SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name olide

Model Number CSD301

Specifications

combined radar activation and active infrared safety sensor
1.CE and ISO
2.10 years experience
3.2 year warranty

COMBINED RADAR ACTIVATION AND ACTIVE INFRARED SAFETY SENSOR

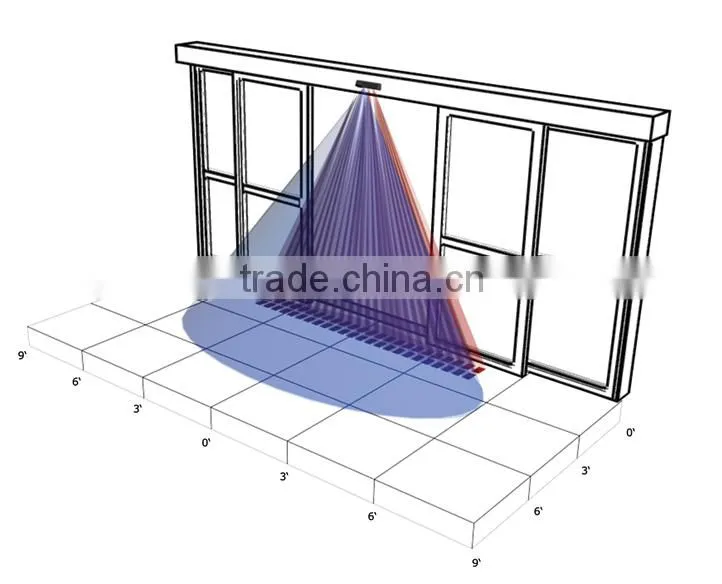

Motion and presence detection

2 in1 combined Microwave and Infrared Safety Curtain Sensor by China original sensor manufacturer

automatic garage door sensors for automatic door operators by sliding door manufacturer

new inventions safety motion detector for hotel entrance doors

MONITORED INFRARED SLIDE DOOR SAFETY & ACTIVATION SENSOR

Inductance sensor for sliding door operator

Dual technology monitored sliding door sensor

2 in 1 combined radar activation and infrared safety sensor

Technical Parameters

Description	Specification
Supply voltage	12 to 24 VAC / VDC: -5% to +10%
Power frequency	50 / 60 Hz
Power consumption	< 3 W
Mounting height	Standard:5’9” to 8’2” High:8’2” to 13’0”
data input	10 to 30 VDC
Delay of the output activation after stimulation	Transistor : < 1ms
3-color LED	RED: presence detection GREEN: motion detection ORANGE: monitoring process
Temperature range	-30°F to +131°F
Degree of protection	NEMA 3S / (IP54)
Product conformity	R&TTE 1999/5/EC & EMC 89/336/EEC BZT Germany, TÜV
Dimensions	10.4“ x 2.2“ x 1.9“
Weight	.55 lbs / 250 g
Housing material	ABS & LURAN S
Color of Housing	Anthracite gray (standard), aluminum, dark bronze, black or white finish
Cable length	10’ of 6-conductor cable
