[ DATAN ] ME850 Series Cnc Machining Center

Name: [ DATAN ] ME850 Series Cnc Machining Center
Brand: DATAN
SKU: 133923207
Availability: InStock

Hangzhou Datian CNC Machine Tool Co., Ltd.

US$ 30,000 - 35,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Vertical

Place of Origin:

Zhejiang, China

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai/Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Vertical

Place of Origin Zhejiang, China

Brand Name DATAN

Model Number ME850

Voltage 220V/380V

Power(W) 7.5 KW

Dimension(L*W*H) 2450x2230x2612

Weight 5800 kg

Certification ISO CE

Warranty 1 Year

After-sales Service Provided Engineers available to service machinery overseas

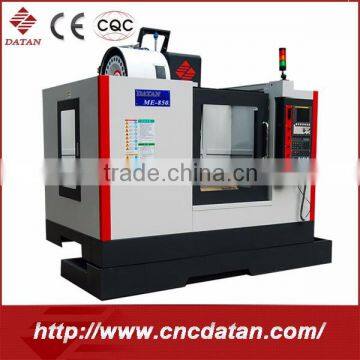

ME850/1100 cnc machining center is one of the pioneer vmc of Datan

CNC Controller,Spindle.ATC and etc.Main Parts from Taiwan,Performance Stable.
It adopts 6 rams designs in worktable,20% rigidity more than normal design in worktable.
Wide base + Wide range guiderail, High rigidity machine needs strong base supporting.
Nitrogen Balance, It is more stable when Datan CNC adopts the new Nitrogen Weight Balance system.

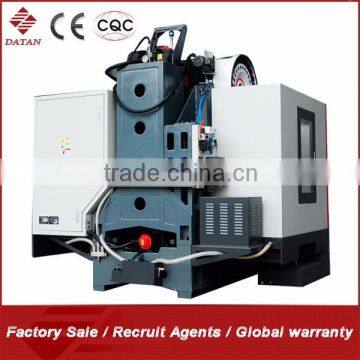

the main machine components(machine bed ,sliding saddle ,worktable) adopted the structure of thermal symmetry and thin-walled main stock with multi-layer ribs. arch shape column with high rigidity goes through optimized treatment by finite element analysis to guarantee the best rigidity.
the adoption of C3 grade precise ball screws and the use of special bearing on the ball screw with pre-pull treatment as well as laser detective compensation have ensured the rigidity and precision.
The main base parts of machine are made from high-grade ,high quality gray casting iron with aging treatment, the guide rails with high-frequency quenching treatment and delicate grinding ,covered with low frictional coefficient TURCITE-B and dealt with delicate scraping ,having effectively improved motional quality of machine and necessary touching rigidity for cutting.

DATAN Specification

Model No.			ME650	ME850	ME1100
Capacity	X axis travel	mm	650	850	1100
	Y axis travel	mm	400	500	600
	Z axis travel	mm	450	550	550
	Spindle nose to table surface	mm	150-600	150-700	150-700
	Spindle nose to column surface	mm	450	550	650
Worktable	Table size (L×W)	mm	780×360	1000×500	1200×600
	Max load on the table	kg	600	800	1000
	T-slot size	mm	18×3×110	18×5×100	18×5×100
Spindle	Spindle speed	rpm	60-8000	60-8000	60-8000
	Spindle taper/spindle shank	mm	7/24 taper	7/24 taper	7/24 taper
	Spindle taper/spindle shank	mm	BT40	BT40	BT40
	Max spindle inner diameter	mm	60	70	70
	Spindle motor	kw	5.5	7.5	11
Feed rate	X,Y,Z rapid traverse	M/min	36/36/36	36/36/25	36/36/24
Feed rate	Max cutting feed rate	M/min	10	10	10
A.T.C	Tool storage capacity	pc	Arm type 16	Arm type 24	Arm type 24
	Max tool diameter	mm	150(70)	160(80)	160(80)
	Max tool length	mm	250	250	250
	Tool change time(T-T)	sec	2.5	2.5	2.5
Accuracy	Positioning accuracy	mm	0.01	0.01	0.01
	Repeatability positioning	mm	0.06	0.005	0.005
	accuracy	mm	0.06	0.005	0.005
Machine size	Machine height/mm	mm	2260	2612	2612
	Space requirment(L×W)	mm	2400×2000	2450×2230	2750×2300
	Net machine weight	kg	3000	5800	7000
	Power requirment	KVA	10	20	20
	Drive motor	kw	1.2/1.2/1.2	1.8/1.8/2.5	2.0/3.5/2.0
	Control system		Siemens808D	Siemens808D	Siemens808D
