MIG Serials Inverter Shielded Arc Welder(split Type)

FOB Price

US$ 500 - 600 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Guangdong, China
Brand Name	Aoling	Model Number	MIG-250F
Rated Duty Cycle	60%	Motor Type	DC Motor
Dimensions	510196385mm	Usage	welding
Voltage	220/380V	Certification	CE
Warranty	1 years	After-sales Service Provided	Engineers available to service machinery overseas

MIG Serials Inverter Shielded Arc Welder(split type)

Features

1,IGBT inverter technology, current-type control, reliable quality, stable performance

2,closed-loop feedback, constant voltage output, strong resistance to voltage fluctuations(±15%)

3,electronic reactor control, stable welding process, small splash, deep bath, good shaping

4,welding voltage is preset, when no welding, voltmeter shows the preset voltage magnitude

5,welding current and voltage can be observed simultaneously

6,2T/4T optional, convenience for long time welding operation

7,when arc starting, low wire feed; after welding, ball cut; ensure success rate of arc.

8,wire parts from host, large operating range of welding

9,small size, light weight, simple operation, economical and practical

Technical Parameters

Model No.		MIG-250F(B14)	MIG-315F(B15)
Rated input voltage(V)		3 PH 380	3 PH 380
Output current range(A)		35~250A	35~315A
Output voltage range(V)		14~32V	14~34V
Manual arc welder Current adjustment range(A)		20~220A	20~270A
Floating voltage(V)		52±5V	54±5V
Cyclic duration factor(%)		60%	60%
efficiency(%)		85	85
Power factor(cos )		0.93	0.93
Shell protective class		IP21	IP21
Insulation class		F	F
Wire feed speed(m/min)		2.5~16	2.5~16
dimension(mm)		510×196×385	510×196×385
weight(kg)		25	15
Product selection guide	materials	Low-carbon steel,low alloy steel,stainless steel
	Plate thickness(mm)	>2.0	>2.0
	Electrode diameter (mm)	0.8/1.0/1.2	0.8/1.0/1.2

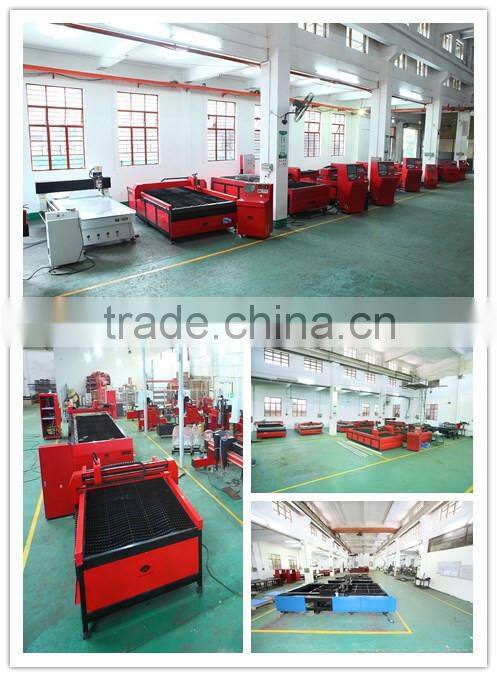

Our Factory
