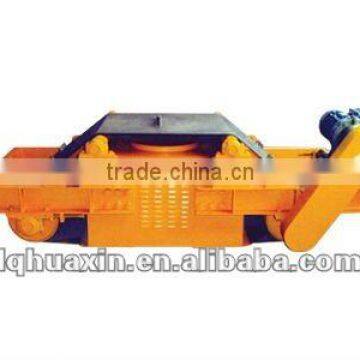

Series RCDD naturally cooled belt electro magnetic iron separator

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 20 Set / Sets per Month

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China	Brand Name	huaxin
Model Number	RCDD	Type	Solenoid
Composite	AlNiCo Magnet	Shape	Block
Application	Industrial Magnet

Product Description

Introduction:
Series RCDD naturally cooled auto cleaning belt electromagnetic iron separator is added with a driving motor, two drums, an iron-cleaning belt on the basis of series RCDB. This machine is usually suspended above the conveyor belt to collect ferrous elements from non-magnetic materials and clean the ferrous elements automatically. This product has a strong magnetic field intensity and a long service life. It is dustproof, waterproof, fast radiating, auto cleaning and corrosion-resistant.

Features:
1. Strong magnetic intensity and special design for magnetic circuit.
2. The wholly sealed structure makes the separator water-proof, dust-proof and corrosion resisting.
3. Low energy consumption.
4. Easy to install and convenient to use.
5. High efficiency and stable performance.

Technical specifications:

Model No.	Adaptive belt width(mm)	Suspension height (h≤mm)	Magnetic intensity(≥mT)	Thickness of materials(≤mm)	Excitation power (kw)	Motor power (kw)	Adaptive belt speed(≤m/s)	Weight(kg)	Outline dimensions (mm)
Model No.	Adaptive belt width(mm)	Suspension height (h≤mm)	Magnetic intensity(≥mT)	Thickness of materials(≤mm)	Excitation power (kw)	Motor power (kw)	Adaptive belt speed(≤m/s)	Weight(kg)	A	B	C	D	E
RCDD-5	500	150	320	100	1.5	1.1	4.5	950	1900	940	710	740	950
RCDD-6	600	175	320	120	1.6	1.5		1250	2000	1020	710	840	1050
RCDD-6.5	650	200	320	150	2	1.5		1500	2050	1190	710	988	1250
RCDD-8	800	250	320	200	3	2.2		1730	2200	1270	750	1090	1350
RCDD-10	1000	300	320	250	4.6	3		2250	2750	1635	940	1420	1400
RCDD-12	1200	350	320	300	6.7	4		3150	3000	1800	1010	1580	1700
RCDD-14	1400	400	320	350	8.7	4		4650	3500	2050	1050	1800	2000
RCDD-16	1600	450	320	400	13	5.5		5950	3900	2450	1180	2200	2350
RCDD-18	1800	500	350	450	18	5.5		7620	4400	2850	1290	2600	2800

Note: 1 mT = 10 gauss

We can fabricate as per customer’s specification requirements.
