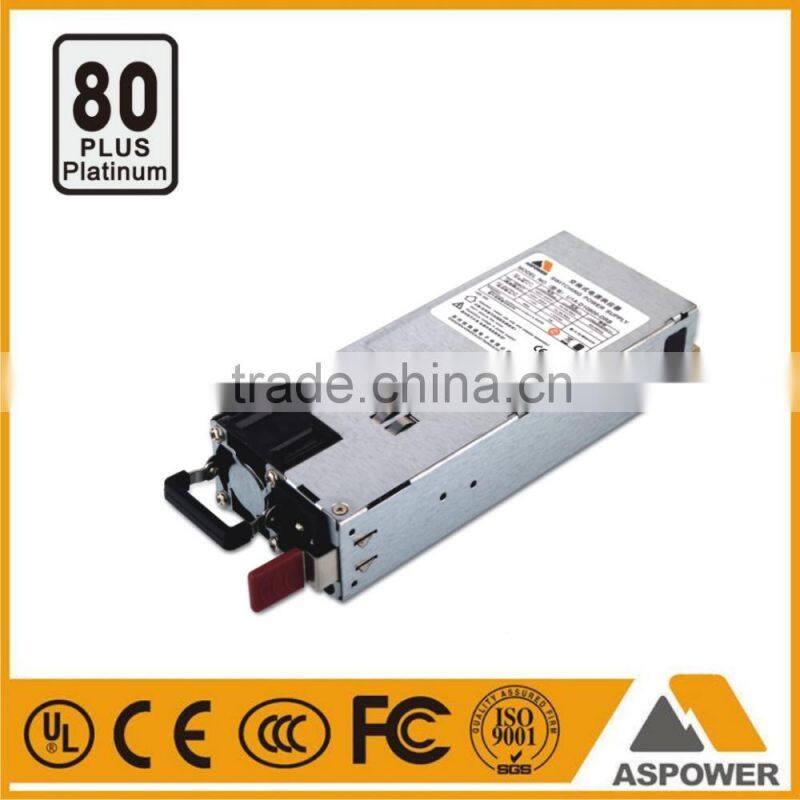

Atx power supply unit(U1A-D1xxxx-DRB)
Power Range
| Model No | Watt |
| U1A-D11600-DRB | 1600 |
| U1A-D11500-DRB | 1500 |
| U1A-D11400-DRB | 1400 |
| U1A-D11300-DRB | 1300 |
| U1A-D11200-DRB | 1200 |
| U1A-D11100-DRB | 1100 |
| U1A-D11000-DRB | 1000 |
| U1A-D10900-DRB | 900 |
| U1A-D10800-DRB | 800 |
| U1A-D10700-DRB | 700 |
| U1A-D10600-DRB | 600 |
| U1A-D10550-DRB | 550 |
| U1A-D10500-DRB | 500 |
| U1A-D10450-DRB | 450 |
| U1A-D10400-DRB | 400 |
| U1A-D10350-DRB | 350 |
| U1A-D10305-DRB | 305 |
Input Condition
Output Range
Specification
Efficiency : >94% at typical Load and 230Vac input
Power Good Signal: On delay 100mS to 500mS
Hold Time: 12mS minimum at 115Vac input and 70% full load
Rise Time: 75mS maximum at 115Vac full load
Output Protection: SCP,OPP,OCP,OVP,OTP
Temperature Range:
Operating: 0℃~50℃
Storage: -40℃~70℃
The power supply meet EN60950,EMC,EMI Class A level
Meet complete PMBus communication protocol:
Real time monitoring all outputs’ voltage and current:
All protection functions can be monitored:
The use of power supply
Company Profile
Shenzhen Honor Electronic Co., ltd ( the following called honor in short ) was founded in 1995, which is one of the largest manufacturers of switching power supply in China.
In 2011, Honor set up IPC department including sales, R&D and production, Manages server and telecom power supply and other industrial products under ASPOWER brand.
ASPOWER focuses on power supply solutions, supply products with the widest range of production line in China's IPC power supply market and it has more than 50 people from senior R&D team.
Factory Picture
Technology Strength
A variety of our products meet 80PLUS Platinum efficiency standard ; the highest power density of our products can reach 46W / cubic Inches ; We develop software technology independently , so we can customize and upgrade the products’ software according to customers’ requirements.
Quality Assurance
We adopted automated production process, does not require human judgment, and electrical property failure rate is lower than 1.5‰. Having perfect DQE validation project, to ensure that every
product can get enough testing and validation before into the market; Our customers can enjoy 3
years warranty for free generally, and an extension to 5 years for specialty products.
Customized
Our minimum order quantity is 50 PCS;
Delivery guarantee within 25 working days since the order effected, and 15 working days for ordinary types;
We can customize output wires, mounting bracket, and other power structures accessories for customers;
Complete production lines, various series products all have ACand DC input redundant module, and they can be mixed used.
Service & Support
We have strong technical force supportting, in China, any technical problems can be solved within shortest period:Individual problems can be solved within 3 business days, and 2 working days for bulk problems.
We tailor power program to customers’requirements, truly do that provide the best solutions for you through technology, cost-control, service etc.
In addtion ,we provide software value-added services which can update power soft to cooperate with the customer functional requirements .
Our customers cooperation
Our Fearures
