IBM Compatible Server Power Supply
US$ 50 - 500
MOQ: 50 Sets
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ASPOWER
Model Number:
R2A-DV0550-N
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
hp IBM Compatible Power SupplyUS$ 50 - 500MOQ: 50 Sets -
Compatible Power Supply PriceUS$ 50 - 500MOQ: 50 Sets
-
Small Size High Efficiency Server Compatible Power SupplyUS$ 50 - 500MOQ: 50 Sets
-
Atx Psu for 2U Standard Server Power SupplyUS$ 50 - 500MOQ: 50 Sets
-
80PLUS Platinum Full Range APFC Industrial Power 550W Server Power SupplyUS$ 50 - 500MOQ: 50 Sets
Place of Origin
Guangdong, China
Brand Name
ASPOWER
Model Number
R2A-DV0550-N
Output Power
Other, 305W~1400W
Output Type
Multiple
Input Voltage
Other, 90V~264Vac
Product Description

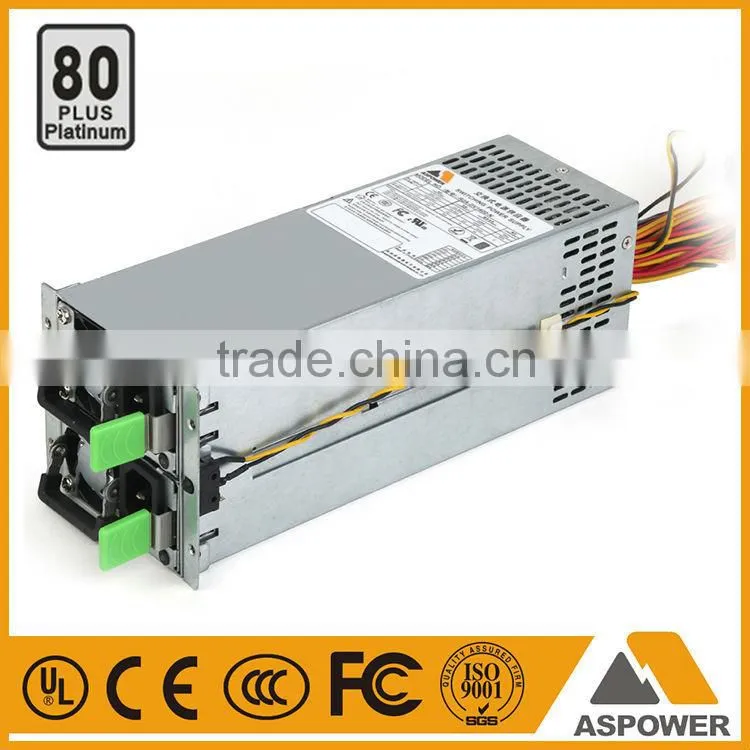

2U redundant power supply, it can be mainly used for high-density computing servers and mass storage field; Module single output is 12V(AC&DC input are alternative), the comeplete power supply output is ATX group unit, It supports with hot plug,hot backup. The conversion efficiency up to 80 PLUS Platinum standard.The rated output power ranges from 305W~1400W. The d imension is L225XD77.5XH84mm.
Product Characteristic: Complete PMBus Communication protocol
Timely monitoring on the full group or voltage and current.
All protection functions can be monitored.
| Model No | Watt | Module |
| R2A-DV1600-N | 1600 | U1A-D11600-DRB |
| R2A-DV1500-N | 1500 | U1A-D11500-DRB |
| R2A-DV1400-N | 1400 | U1A-D11400-DRB |
| R2A-DV1300-N | 1300 | U1A-D11300-DRB |
| R2A-DV1200-N | 1200 | U1A-D11200-DRB |
| R2A-DV1100-N | 1100 | U1A-D11100-DRB |
| R2A-DV1000-N | 1000 | U1A-D11000-DRB |
| R2A-DV0900-N | 900 | U1A-D10900-DRB |
| R2A-DV0800-N | 800 | U1A-D10800-DRB |
| R2A-DV0700-N | 700 | U1A-D10700-DRB |
| R2A-DV0600-N | 600 | U1A-D10600-DRB |
| R2A-DV0550-N | 550 | U1A-D10550-DRB |
| R2A-DV0500-N | 500 | U1A-D10500-DRB |
| R2A-DV0450-N | 450 | U1A-D10450-DRB |
| R2A-DV0400-N | 400 | U1A-D10500-DRB |
| R2A-DV0350-N | 350 | U1A-D10350-DRB |
| R2A-DV0300-N | 300 | U1A-D10300-DRB |
| Specifications | ||||
| Efficiency | >94% Typical Load at 115Vac | |||
| Power Good Signal | On Delay 100mS to 500mS | |||
| Hold Time | 16mS Minimum at 115V 80% Full Load | |||
| Rise Time | 20mS Maxminum at 115V Full Load | |||
| Output Protection | Short,OPP,OCP,OVP,OTP | |||
| Temperature Range | Operating 0℃~50℃, storage-20℃~80℃ | |||
| The power supply meet EN60950,EMC,EMI Class B Regulations | ||||
| Input | Model No | Voltage | Frequency | Current(Unit:A) | Inrush Current | PFC | EMI | EMS | |||
| 115Vac | 230Vac | 115Vac | 230Vac | 115Vac | 230Vac | ||||||
| R2A-DV1600-N | 100~240Vac 140~380Vdc | 50/60Hz N/A | 15 | 10 | 20A | 55A | >0.98 | >0.95 | IEC-6100-3-2 FCC CISPR22(EN55022) | EN61000-4-2ESD EN61000-4-4EFT EN6100-4-5Surge | |
| R2A-DV1500-N | 15 | 10 | 20A | 55A | >0.98 | >0.95 | |||||
| R2A-DV1400-N | 15 | 10 | 20A | 55A | >0.98 | >0.95 | |||||
| R2A-DV1300-N | 15 | 8 | 20A | 55A | >0.98 | >0.95 | |||||
| R2A-DV1200-N | 15 | 8 | 20A | 55A | >0.98 | >0.95 | |||||
| R2A-DV1100-N | 15 | 8 | 20A | 55A | >0.98 | >0.95 | |||||
| R2A-DV1000-N | 15 | 8 | 20A | 55A | >0.98 | >0.95 | |||||
| R2A-DV0900-N | 15 | 8 | 20A | 55A | >0.98 | >0.95 | |||||
| R2A-DV0800-N | 15 | 8 | 20A | 55A | >0.98 | >0.95 | |||||
| R2A-DV0700-N | 10 | 6.3 | 20A | 55A | >0.98 | >0.95 | |||||
| R2A-DV0600-N | 10 | 6.3 | 20A | 55A | >0.98 | >0.95 | |||||
| R2A-DV0550-N | 8 | 5 | 20A | 55A | >0.98 | >0.95 | |||||
| R2A-DV0500-N | 8 | 5 | 20A | 55A | >0.98 | >0.95 | |||||
| R2A-DV0450-N | 6.3 | 5 | 20A | 55A | >0.98 | >0.95 | |||||
| R2A-DV0400-N | 6.3 | 5 | 20A | 55A | >0.98 | >0.95 | |||||
| R2A-DV0350-N | 6.3 | 5 | 20A | 55A | >0.98 | >0.95 | |||||
| R2A-DV0300-N | 6.3 | 5 | 20A | 55A | >0.98 | >0.95 | |||||
| Output | 80PLUS | Model No | Watt | Output | |||||||||
| 90-180Vac/140-280Vdc | 180-264Vac/280-380Vdc | ||||||||||||
| 12V | 3.3V | 5V | 5Vsb | -12V | 12V | 3.3V | 5V | ±5% | -12V | ||||
| 80PLUS PLATINUM | R2A-DV1600-N | 1600 | 83A | 25A | 25A | 4A | 1A | 133A | 25A | 25A | 4A | 1A | |
| R2A-DV1500-N | 1500 | 83A | 25A | 25A | 4A | 1A | 125A | 25A | 25A | 4A | 1A | ||
| R2A-DV1400-N | 1400 | 83A | 25A | 25A | 4A | 1A | 116.5A | 25A | 25A | 4A | 1A | ||
| R2A-DV1300-N | 1300 | 83A | 25A | 25A | 4A | 1A | 108A | 25A | 25A | 4A | 1A | ||
| R2A-DV1200-N | 1200 | 83A | 25A | 25A | 4A | 1A | 100A | 25A | 25A | 4A | 1A | ||
| R2A-DV1100-N | 1100 | 83A | 25A | 25A | 4A | 1A | 91.5A | 25A | 25A | 4A | 1A | ||
| R2A-DV1000-N | 1000 | 83A | 25A | 25A | 4A | 1A | 83A | 25A | 25A | 4A | 1A | ||
| R2A-DV0900-N | 900 | 75A | 25A | 25A | 4A | 1A | 75A | 25A | 25A | 4A | 1A | ||
| R2A-DV0800-N | 800 | 66.5A | 25A | 25A | 4A | 1A | 66.5A | 25A | 25A | 4A | 1A | ||
| R2A-DV0700-N | 700 | 58A | 25A | 25A | 4A | 1A | 58A | 25A | 25A | 4A | 1A | ||
| R2A-DV0600-N | 600 | 50A | 25A | 25A | 4A | 1A | 50A | 25A | 25A | 4A | 1A | ||
| R2A-DV0550-N | 550 | 45A | 25A | 25A | 4A | 1A | 45A | 25A | 25A | 4A | 1A | ||
| R2A-DV0500-N | 500 | 40A | 25A | 25A | 4A | 1A | 40A | 25A | 25A | 4A | 1A | ||
| R2A-DV0450-N | 450 | 37A | 25A | 25A | 4A | 1A | 37A | 25A | 25A | 4A | 1A | ||
| R2A-DV0400-N | 400 | 33A | 25A | 25A | 4A | 1A | 33A | 25A | 25A | 4A | 1A | ||
| R2A-DV0350-N | 350 | 29A | 25A | 25A | 4A | 1A | 29A | 25A | 25A | 4A | 1A | ||
| R2A-DV0300-N | 300 | 25A | 25A | 25A | 4A | 1A | 25A | 25A | 25A | 4A | 1A | ||
| Regulation Load | ±5% | ±5% | ±5% | ±5% | ±10% | ±5% | ±5% | ±5% | ±5% | ±10% | |||
| Ripple And Noise | 120mV | 50mV | 50mV | 50mV | 120mV | 120mV | 50mV | 50mV | 50mV | 120mV | |||
| Remarks:+3.3V and +5V Total output power not exceed:120V | |||||||||||||
Company Information
ASPOWER is a professional solution partner of IT equipment in the United States, Focus on Research&Development as well as marketing.
In 2010, Shenzhen Honor Electronic hold ASPOWER brand, and completed the full acquisition in Feberary In 2011, the USA branch keep the Pre-reaserch and marketing as well as after-sale service.
In the beginning of 2011, IPC business department was set up in Shenzhen Honor, at the same time set up the R&D team. Most of the team members are from the first-tier power supply company like EMERSON, with much experience in designing PSU.At present engineer technical staff have 51,7 groups in hardware projects,2 groups in software projects, 1 group in backup on research(Structure,Layout,Component Recognition ,File Management File ,Design&Testing Group)
Aspower owns the three core business segments as following:
Server,Storage,Industrial control power supply:Including 1U~2U Single Power ,N+1 Redundant Power,all kinds of DC input Power supply.
Telecom Power:Its principal product is high-voltage DC remote system, including high-voltage DC source center,indoor end unit,outdoor end unit, and so on;
Non-standard customized power: providing customers with high stability, high efficiency, high reliability, non-standard industrial power supply solutions.
Packaging & Shipping
Normal Packing: 4sets packed into one carton, as per your requirement;
Shipping: By sea/By air;
Lead time:Within 30-45 workdays after plaing order;
Guarantee: 3 years
Factory Showing

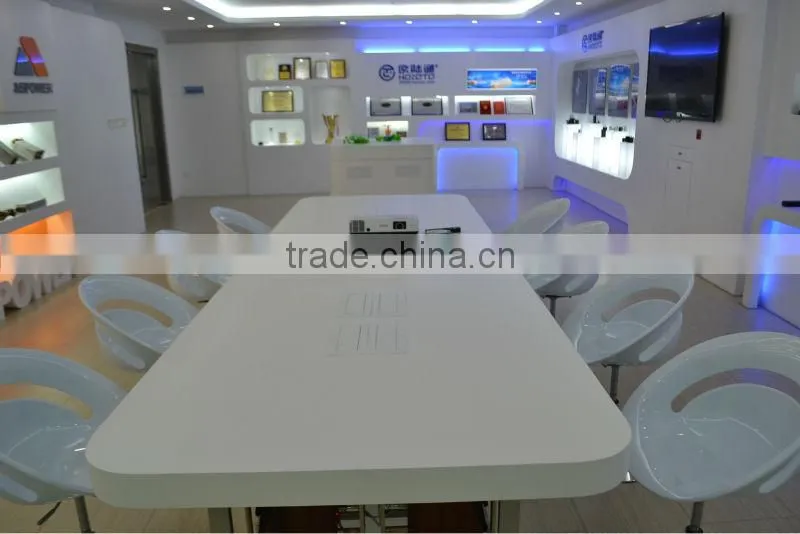

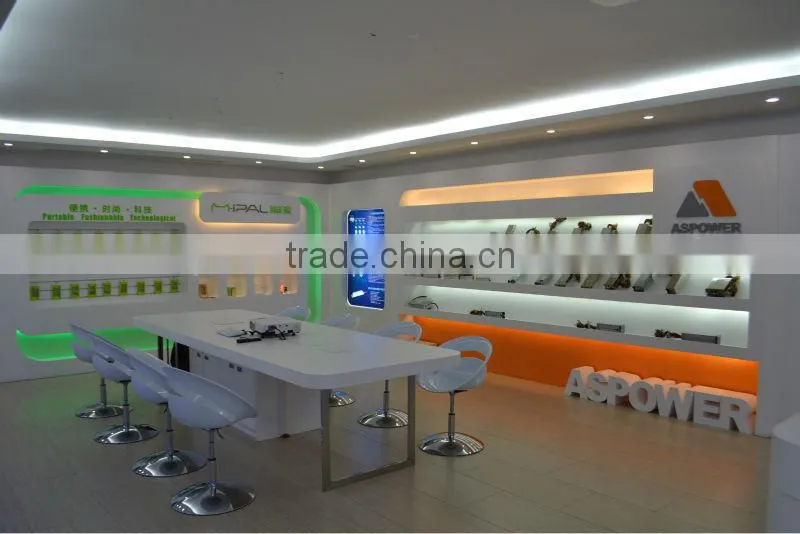

Display Room
ASPOWER Team
Why choose us
Technology Strength
A variety of our products meet 80PLUS Platinum efficiency standard ; the highest power density of our products can reach 46W / cubic Inches ; We develop software technology independently , so we can customize and upgrade the products’ software according to customers’ requirements.
Quality Assurance
We adopted automated production process, does not require human judgment, and electrical property failure rate is lower than 1.5‰. Having perfect DQE validation project, to ensure that every
product can get enough testing and validation before into the market; Our customers can enjoy 3
years warranty for free generally, and an extension to 5 years for specialty products.
Customized
Our minimum order quantity is 50 PCS;
Delivery guarantee within 25 working days since the order effected, and 15 working days for ordinary types;
We can customize output wires, mounting bracket, and other power structures accessories for customers;
Complete production lines, various series products all have ACand DC input redundant module, and they can be mixed used.
Service & Support
We have strong technical force supportting, in China, any technical problems can be solved within shortest period:Individual problems can be solved within 3 business days, and 2 working days for bulk problems.
We tailor power program to customers’requirements, truly do that provide the best solutions for you through technology, cost-control, service etc.
In addtion ,we provide software value-added services which can update power soft to cooperate with the customer functional requirements .
If you have any inquiry for power supply, please feel free to contact us! Warmly welcome your visit to our factory! Thank you!
