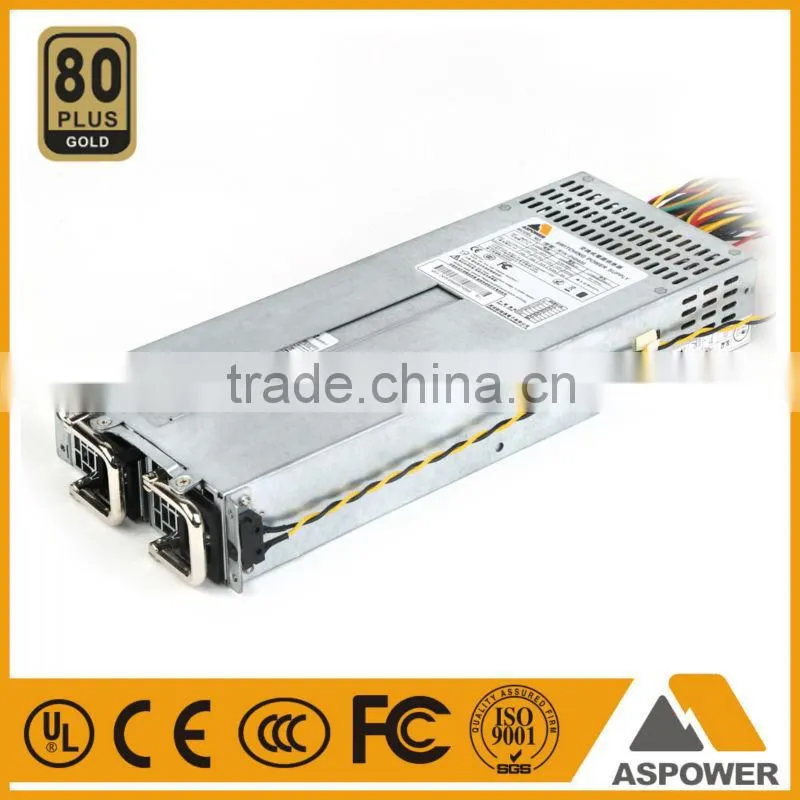

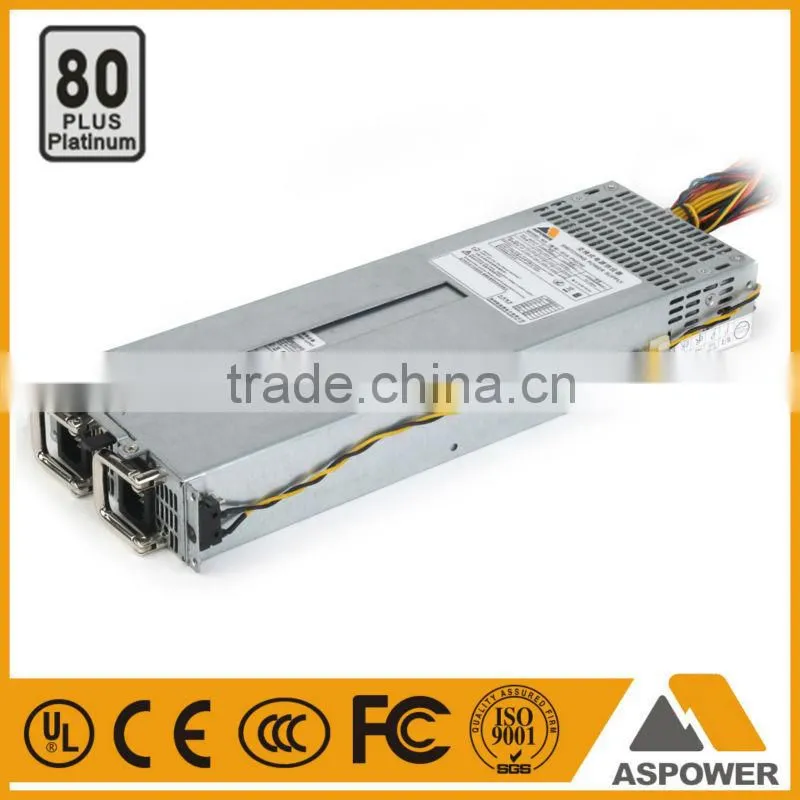

hp Compatible Power Supply for Server Chassis

hp Compatible Power Supply for Server Chassis thumbnail-1
hp Compatible Power Supply for Server Chassis thumbnail-2
hp Compatible Power Supply for Server Chassis photo-1
hp Compatible Power Supply for Server Chassis photo-2
US$ 50 - 500 MOQ: 50 Sets
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ASPOWER
Model Number:
R1A-KH0350
Contact Supplier Request Quote Chat Now
Shenzhen Honor Electronic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name ASPOWER
Model Number R1A-KH0350
Output Power Other, 100W~350W
Output Type Multiple
Input Voltage Other, 90V~264Vdc



Product Description



1U redundant power supply, it can be mainly used for high-end server,High-end routing equipment, High-end switch devices.computing servers and mass storage field; Module single output is 12V(AC&DC input are alternative), the comeplete power supply output is ATX group unit, It supports with hot plug,hot backup. The conversion efficiency up to 80 PLUS Gold standard. The rated output power ranges from 100W~350W. The dimension is L218.5*W106*H41.5mm.



Product Characteristic:

Complete PMBus Communication protocol

Timely monitoring on the full group or voltage and current.

All protection functions can be monitored.



Input Model No Voltage Frequency Current(Unit:A) Inrush Current PFC EMI EMS
115Vac 230Vac 115Vac 230Vac 115Vac 230Vac
R1A-KH0350 100~240Vac     140~380Vdc 50/60Hz 4A 2A 20A 40A >0.98 >0.95 IEC-6100-3-2 FCC         CISPR22(EN55022) EN61000-4-2ESD EN61000-4-4EFT EN6100-4-5Surge
R1A-KH0300 4A 2A 20A 40A >0.98 >0.95
R1A-KH0250 4A 2A 20A 40A >0.98 >0.95
R1A-KH0200 4A 2A 20A 40A >0.98 >0.95
R1A-KH0150 4A 2A 20A 40A >0.98 >0.95
R1A-KH0105 4A 2A 20A 40A >0.98 >0.95



Output 80PLUS Model No Watt Output
  "+5V "+3.3V "12V1 "-12V 5Vsb
80PLUS SILVER R1A-KH0350 350 18A 18A 29A 0.3A 3A
R1A-KH0300 300 18A 18A 25A 0.3A 3A
R1A-KH0250 250 16A 16A 20A 0.3A 3A
R1A-KH0200 200 14A 14A 17A 0.3A 3A
R1A-KH0150 150 12A 12A 12A 0.3A 3A
R1A-KH0105 105 10A 10A 8.5A 0.3A 3A
Regulation Load ±5% ±5% ±5% ±5% ±5%
Ripple And Noise 50mV 50mV 120mV 120mV 50mV
Remarks:+3.3V and +5V Total output power not exceed 100W,90W,80W,70W,60W.50W





hp compatible power supply for server chassis

Company Information

ASPOWER is a professional solution partner of IT equipment in the United States, Focus on Research&Development as well as marketing.

In 2010, Shenzhen Honor Electronic hold ASPOWER brand, and completed the full acquisition in Feberary In 2011, the USA branch keep the Pre-reaserch and marketing as well as after-sale service.
In the beginning of 2011, IPC business department was set up in Shenzhen Honor, at the same time set up the R&D team. Most of the team members are from the first-tier power supply company like EMERSON, with much experience in designing PSU.At present engineer technical staff have 51,7 groups in hardware projects,2 groups in software projects, 1 group in backup on research(Structure,Layout,Component Recognition ,File Management File ,Design&Testing Group)
Aspower owns the three core business segments as following:
Server,Storage,Industrial control power supply:Including 1U~2U Single Power ,N+1 Redundant Power,all kinds of DC input Power supply.
Telecom Power:Its principal product is high-voltage DC remote system, including high-voltage DC source center,indoor end unit,outdoor end unit, and so on;
Non-standard customized power: providing customers with high stability, high efficiency, high reliability, non-standard industrial power supply solutions.
Packaging & Shipping

 Normal Packing: 4sets packed into one carton, as per your requirement;

Shipping: By sea/By air;

Lead time:Within 30-45 workdays after plaing order;

Guarantee: 3 years

Factory Showing

hp compatible power supply for server chassishp compatible power supply for server chassis

Product Showing

 network security swotching power supply/ Intel spec nextwork power supply/ network swithching power R1A-KH0350(100W~350Watt)

hp compatible power supply for server chassis



 1U Redundant Power Supply 80 PLUS GOLD Modulehp compatible power supply for server chassis



 1U Dual Redundant Storage Power Supplying hp compatible power supply for server chassishp compatible power supply for server chassis



Certifications

hp compatible power supply for server chassishp compatible power supply for server chassis

Company showroom

hp compatible power supply for server chassis

hp compatible power supply for server chassis





ASPOWER Team

hp compatible power supply for server chassishp compatible power supply for server chassis
