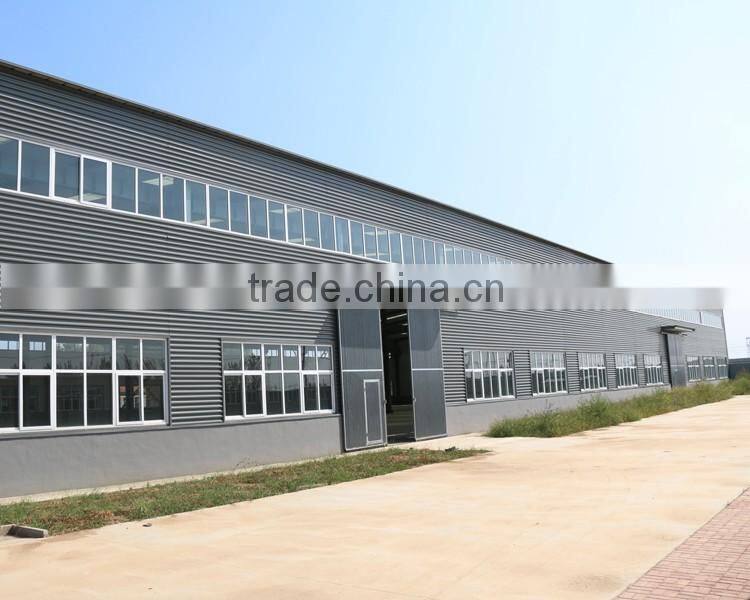

Galvanized light steel structure welding workshop steel structure drawing

Are you searching for the best prefab house & structural building manufacturer in China?Are you searching for a new supplier to provide the prefab house& structural building?We are Hebei BAOFENG,we can help you!It is our Galvanized light steel structure welding workshop steel structure drawing .

Parameter table about Galvanized light steel structure welding workshop steel structure drawing

This is the internal particular of Galvanized light steel structure welding workshop steel structure drawing

1)Size:according to the requirements of the customers
2)Span: type:Single slope, double slope; Single span, double-span, Multi-span.
3)Height: according to your requiremetns
4)Olumn distance: according to the requirements of the customers
5)Base:Cement and steel foundation bolts
6)Column and beam:Material Q345or Q235
7)Bracing: X or V or other type bracing made from angle, round pipe, etc
8)Accessories:Semi-transparent skylight belts, Ventilators, down pipe, outer gutter, etc

The structure details of Galvanized light steel structure welding workshop steel structure drawing

1. The main frame (columns and beams) is made of welded H-style steel.

2. The columns are connected with the foundation by pre-embedding anchor bolt.

3. The beams and columns, beams and beams are connected with high intensity bolts.

4. The envelop construction net is made of cold form C-style purlins.

5. The wall and roof are made of color steel board or color steel sandwich panels, which are connected with the purlin by Self-tapping nails.

6. Doors and windows can be designed at anywhere which can be made into normal type, sliding type or roll up type with material of PVC, metal, alloy aluminium, sandwich panel and so on.

We have exported steel buildings and prefab house to other countries from Year 2005.And now more and more clients have built good business relationship with us.We do not only provide the buildings you want,but also provide the competitive price,high quality and professional design.We have 10000SQM workshop,more than 100 workers,and make sure the goods will be deliveried with in 25 workdays.
