China new refrigerated cargo trailer Meat Fish Transport refrigerated cargo van 4*2 refrigerated carrier
Call us now we can offer the best price for you.
Whatsapp:8618615679754
Skype: summer.titan
Email:tom(@)
The main characters of refrigerated cargo trailer are as follows:
1. Light in weight:40% lighter than metal body.
2. Better insulation: K value less than 0.3w/m2k.
3. High in strength and long life: 5 times longer than metal body.
4. Non-corrosion, non-pollution, anti-brine, acid and soda-resisting.
5. Easy to assembly and repair at site.

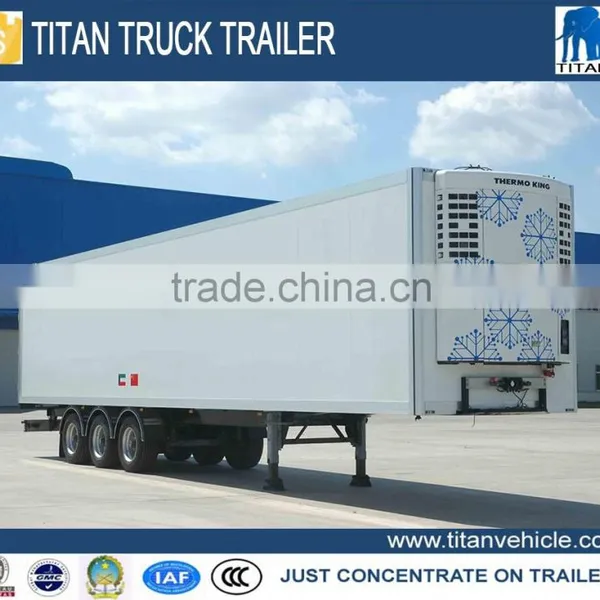

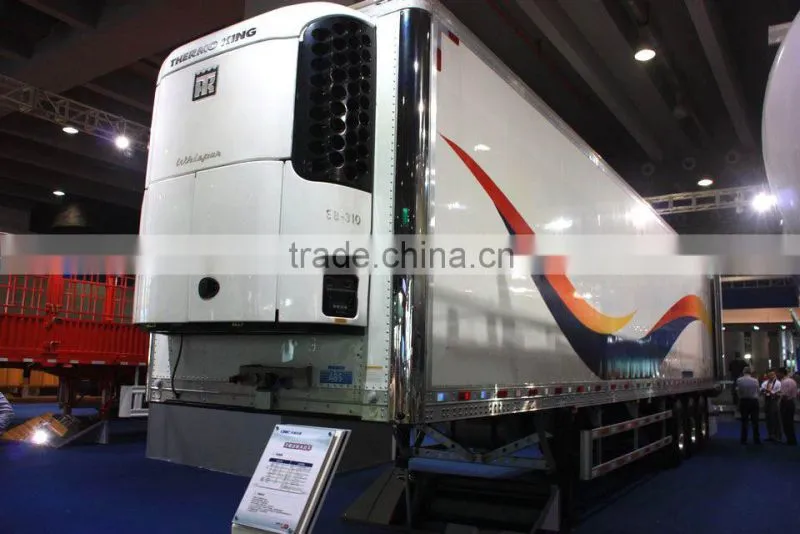

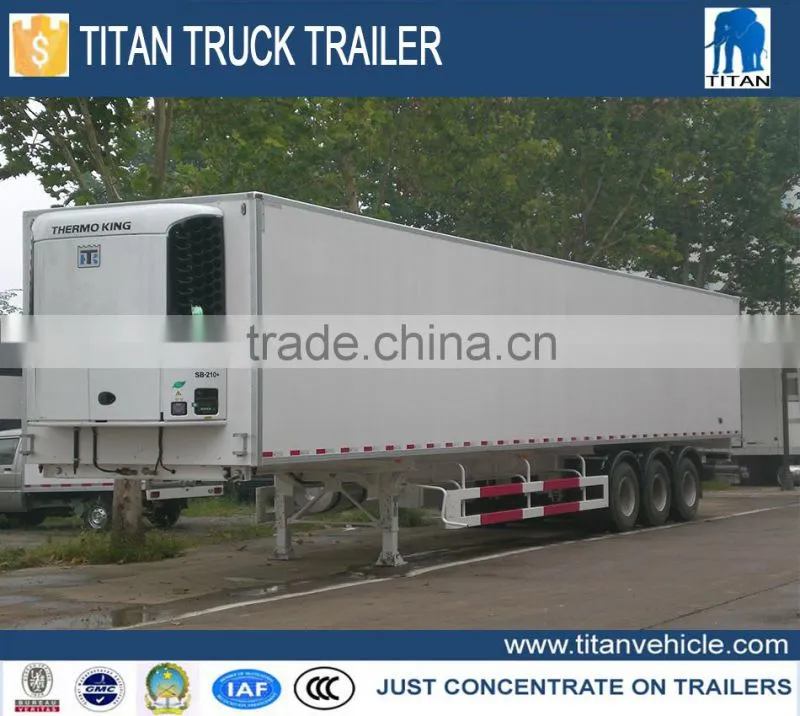

refrigerated cargo trailer pictures
refrigeration trailers trailer
refrigeration trailer workshop
| Specification | refrigerated trailer |
| Dimension | |
| External (length x width x height): | 12,200mmx2,600mmx4,000mm |
| External (length x width x height): | 11,971mmx2,496mmx2,333mm |
| Coupler Height (unload): | 1,370mm |
| King Pin Setting (kingpin to front end): | 1,000mm |
| Wheel Distance (king pin to first axle): | 8,155mm |
| Axle space: | 1,310mm |
| Rear Floor Height: | 1,468mm (depends on fifth wheel height) |
| Landing Gear location (from the king pin): | 2,450mm |
| Weight: |
|
| Tare Weight (tolerance ±4%): | 7,000kg |
| Maximum Axle Payload (distributed payload) | 20,000kg |
| Maximum King Pin Payload (distributed payload): | 10,000kg |
| Maximum Gross Weight: | 30,000kg |
| Noted: | Customized products is available |
Why choose Titan refrigeration trailer ?
1.Titan is the best semi trailers refrigerated manufacturer in China, we got the German Kogel authorized refrigerated semi trailer technology in 1993.
2.Titan Semi trailers refrigerated adpots high quality fiberglass as the trailer box ,THERMO KING, CARRIER or other famous brand refrigeration unit for your choice.
3.Titan semi trailer refrigerated has got CCC certificate. The comprehensive properties is best in China.
Refrigerated Truck
Shandong Titan Vehicle Co.,Ltd with over 20 yrs manufacturing experience and start international business in 2009. It's focusing on truck trailer, trailer parts and vehicle manufacturing.
The trailer payload from 20 up to 300 tons to meet different road transportation demand. the product range including refrigeration trailer semi trailers ( such as extendable and modular low bed trailers, flatbed and draw bar trailers, oil tanker trailers bulk cement tanker trailers ).
We warmly welcome potential clients to join us in our tank trailer business, and we are Your Closest truck trailer Parter In China
No job is too small. We endeavor to provide our Customers with prompt and efficient on time Service.
Timely parts supply guarantee vehicles work continuously.
The overseas engineers are always ready anytime to deal with unexpected needs
Thanks for your interested in our products, more details of China new refrigerated cargo trailer Meat Fish Transport refrigerated cargo van 4*2 refrigerated carrier .welcome contact us and come to visit our factory.
