Hydraulic Modular System Multi-Axis Modular Self Propelled Trailer For Sale
US$ 28,000 - 60,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Type:
Semi-Trailer
Material:
Steel
Certification:
Other, CE DOT CCC
Payment & Shipping
Payment Methods:
Port of Shipment:
Titanjin shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Heavy Duty Multi-axle Hydraulic Modular Truck Trailer for Heavy Equipment TransportUS$ 28,000 - 60,000MOQ: 1 Unit -
Heavy Duty Equipment Transport Hydraulic Modular TrailerNegotiableMOQ: 1 Unit
-
SPMT Self Propelled Modular Transport Semi Trailer for SaleNegotiableMOQ: 1 Unit
-
TITAN Hydraulic Multi Axle Modular TrailerNegotiableMOQ: 1 Unit
-
TITAN Superlink Trailer Drawbar Semi TrailerUS$ 750 - 1,600MOQ: 1 Unit
Type
Semi-Trailer
Material
Steel
Certification
Other, CE DOT CCC
Size
customized
OEM No.
self propelled trailer
Max Payload
70T-300T
Place of Origin
Shandong, China
Brand Name
TITAN
Model Number
self propelled trailer

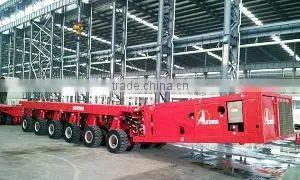

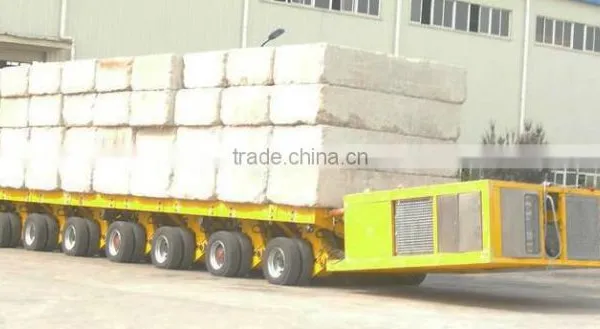

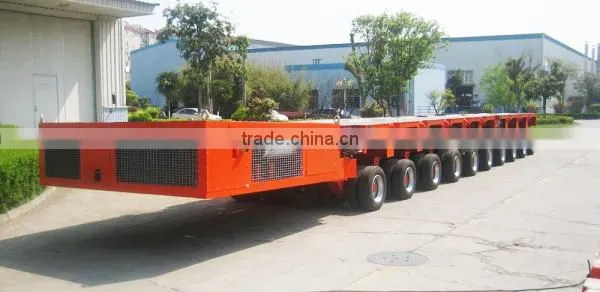

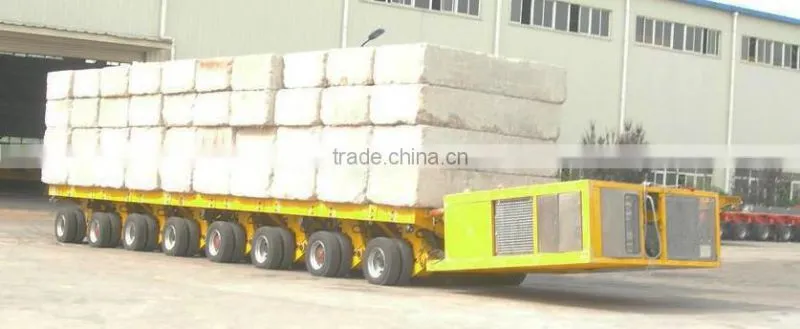

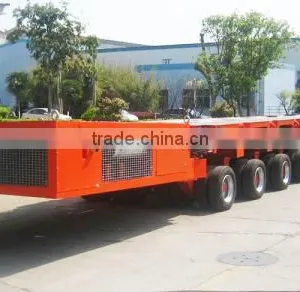

Hydraulic Modular System Multi-Axis Modular Self Propelled Trailer For Sale
Product Description
Hydraulic pressure motors are amounted on the pendulum axles of the powered modular transporters, the pressure comes from pumps which connected with power pack unit. The power pack unit (PPU) connection is additionally equipped with hydraulic cylinders for adjusting the approach angle when moving up to ramps. The self propelled modular transporter has computer controlled the approach of the transport automatically and safety valve to ensure stable pressure of the total hydraulic pressure loop.
Loading ability from 75T to 5000T. With power module, it can realize the remote control. Serveral SPMTs can be combined to transport one large and heavy equippement, under this situation, each SPMT module is connected and cordinated by wireless signal to make the equippment stability. Operator can control the SPMT to move cargo breadthwise or lengthwise to any intended place by control system. The vehicle can be steered circular at any center point or other intended point to get excellent performance.
Specifications of Self Propelled Trailer
technical specification | ||
No |
Item |
Parameters |
1 |
Length(mm) |
3770 |
2 |
Width(mm) |
2980 |
3 |
Height(mm) |
850 |
4 |
Elevating angle(°) |
12 |
5 |
Curb weight (kg) |
6000 |
6 |
Engine |
MAN |
7 |
Engine item number |
D2876LUE604 |
8 |
Power (kW/ rpm) |
375/2000 |
9 |
Emissions |
UIC2 |
10 |
Fuel tank(l) |
400 |
11 |
Hydraulic oil tank(l) |
850 |
12 |
Max working pressure of driven system(bar) |
430 |
13 |
Max working pressure of steering system(bar) |
300 |
14 |
Electrical system(V) |
28 |
15 |
Remote controller |
Wire or radio
|
Hydraulic Modular System Multi-Axis heavy duty low bed trailer
Our other heavy duty low bed trailer:
Our Services
- The Top supplier in Alibaba / The most safety partner in Alibaba
|
|
- Any queations for self propelled trailer at any time,you can get the satisfied reply.
Welcome to Contact
More requirements of self propelled trailer , welcome to contact me at any time!
