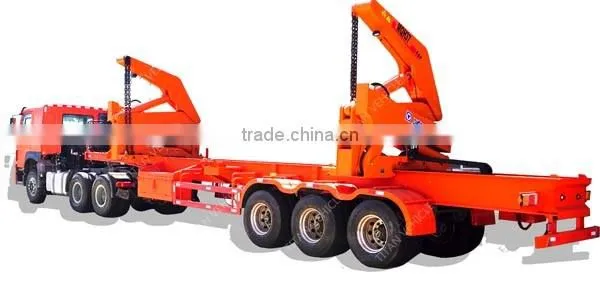

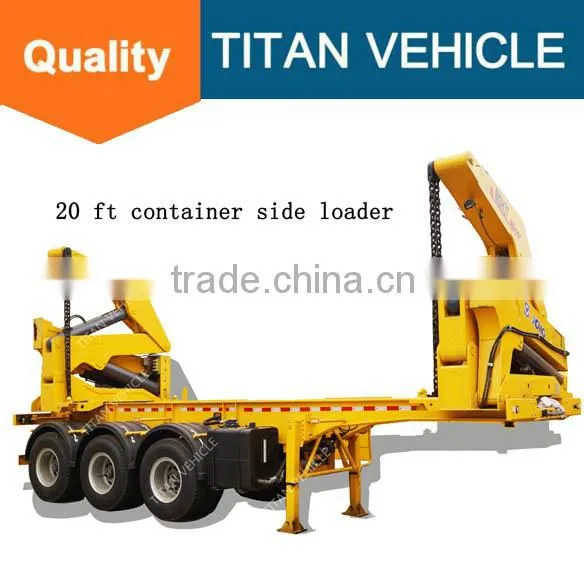

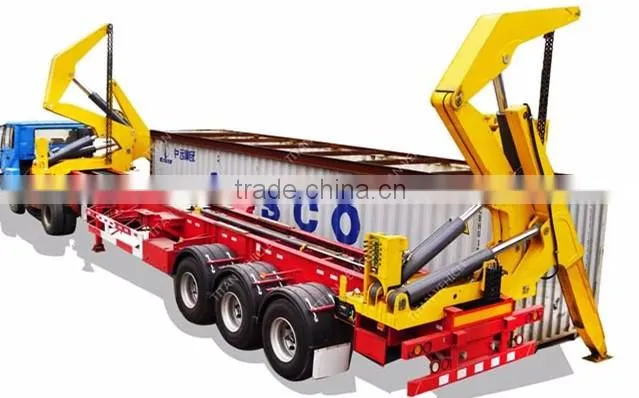

20ft, 40ft 37 Tons Lifting Capacity Container Side Loader

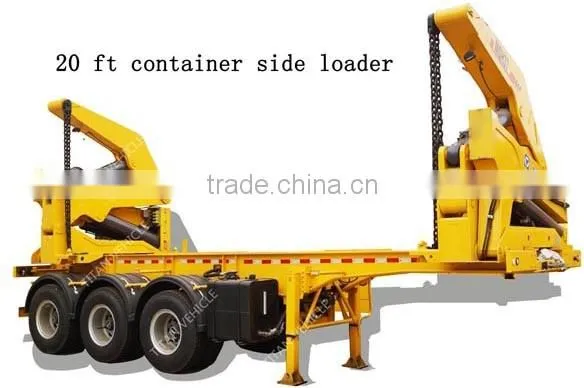

- As a truck semi trailer manufacture , we have been in container side loader design and produce for many years .We can supply the container side lifter trailer with 1 or 2 extensions for 20 ft to 53 ft container transport.
- Factory direct sale with lower price and short delivery time ,also we will offer the free accessories.
- we have exported more than 200 sets container side loader trailer to different countrys in 2015
|
Video of contaier side loader
|

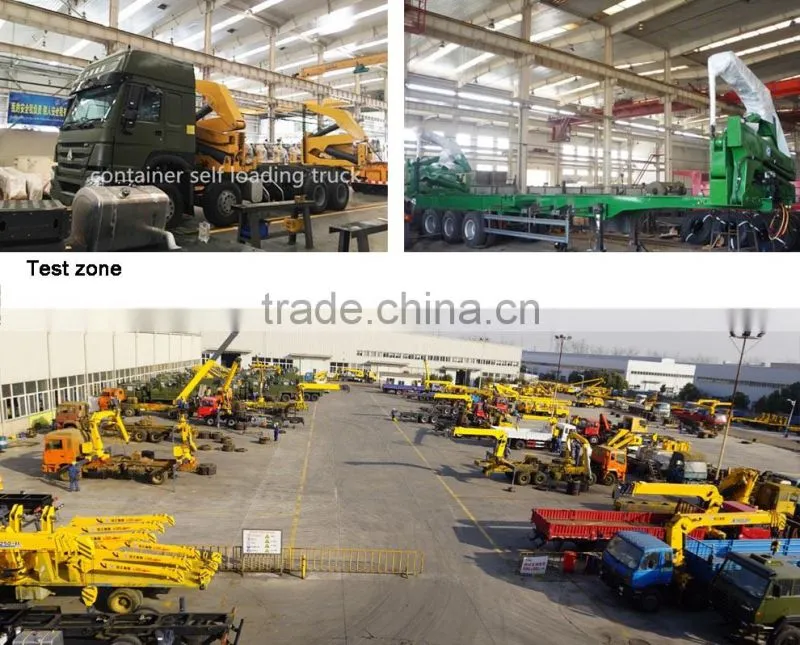

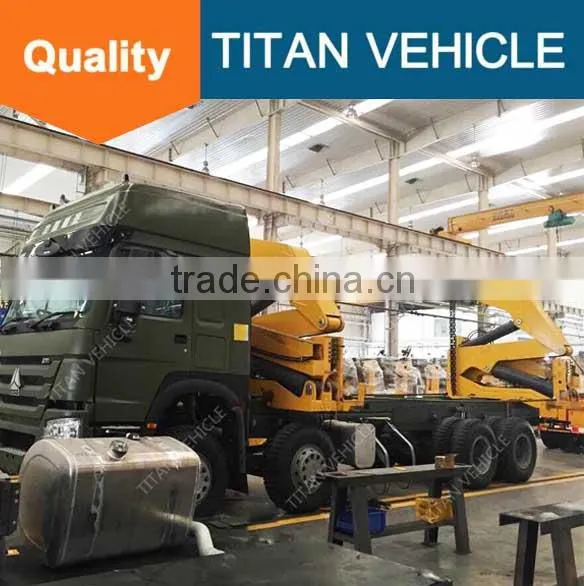

- we have the advanced production line for the quality container side lift and every trailer will be tested before delivery.
Add to My Favorites
- Some types of container side lifter we have exported to Africa market in this year.
- For Zimbabwe market - July 2015
- For South Africa market - November 2015
- For Mozambique market - September 2015
- For Djibouti market , December 2015

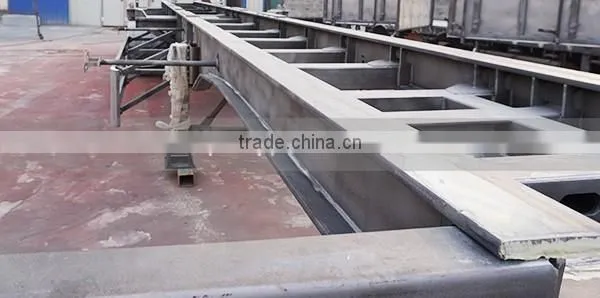

| High Strength Trailer Chassis | Improve the stability of trailer when lifting heavy duty containers |
| |
|

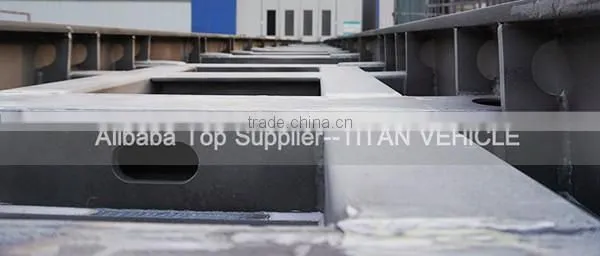

Double Cross beam |
Improve the trailer chassis bearing capacity than normal trailer |
| |
|

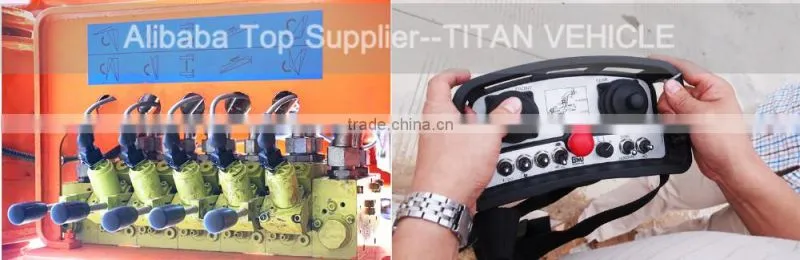

-Wireless remote controller/Manual operatin
|
It can control trailer's legs and hanger within 30m , and also cut loading and off loading times significantly, Simple pictograms show the functions.
|
| |
| MAIN SPECIFICATION of self loading container truck trailer | |
| Overall(L*W*H) | 14100*2500*4100mm |
| The distance between trailer and container | Optimum distance:400mm |
| The largest distance :1500mm | |
| Side Lifter Specification | Design criteria: GB/T 3811-2008 |
| Side Lifter Crane | Quality Side Crane |
| Max. lifting capacity | 40000kg |
| Max.stabiliser outreach | 3200mm |
| Max. working range | 4000mm |
| Max. pressure of hydraulic | 28MPa |
| Hydraulic system |
Hydraulic pump: Italian CASAPPA |
| Electric control system |
Hydraulic control valve: Netherlandish AMCA |
| Telecontroller: German NBB | |
| Voltage: 12V | |
| Two chain | Two chain: lgus (imported) |
| Diesel engine | Japanese Kubota diesel engine |
| Trailer Chassis | L*W*H:14100*2500*4000mm |
| Axles: 3*13 tons axles | |
| Tire: 12R22.5 tubless tire, 12 pcs | |
| Suspension:Heavy duty type mechanical suspension | |
| Kingpin:2 inch or 3.5 inch bolted type | |
| Landing gear: 28T | |
| Water-drenching device | |
| Spare parts | Imported from Swedish |
| PRODUCT VIDEO ON YOUTUBE | |
| https://youtu.be/a4hu3ejMzrQ (copy for watch) | |
|
Safety: • Double hydraulic safety provides safe lifting • Lifting stops, if the support legs are not folded out • Roll- and tip-proof with long support leg outreach • Safe lifting; always four support points when stacking • Tried and tested, user-friendly technology |
Quality: • in-house manufacture • high tensile steel • Low tare weight = high payload • XCMG made quality crane • Durable technology, easy to service |
|
Service: • Detailed operating instructions also ,we have the Video Explanation • Overseas engineer to provide technical service • You can reach us at any time and get a rapid response • Competent technical service , • Rapid and safe deliveries of spare parts | |
Your safety business partner !
We support the Trade Assurance can guarantee the security of transactions !
Welcome to contact with us. Any questions will get a timely response .
TITAN VEHICLE : Supplying the most durable truck trailer is our lifelong promise
More details information of self loading container truck trailer, welcome to contact at anytime!
