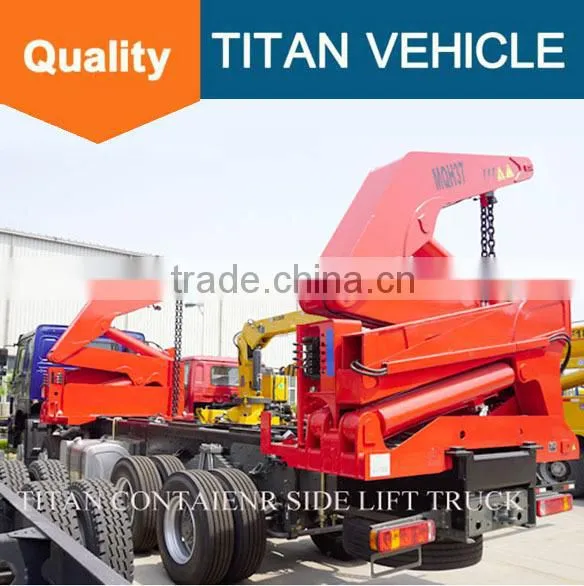

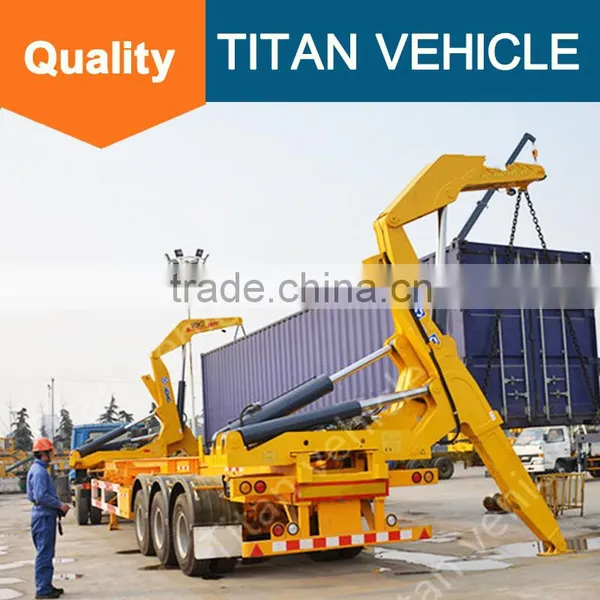

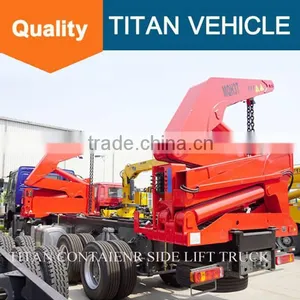

TITAN 40ft Container Lifting Equipment Side Lift Semi Trailer

Name: TITAN 40ft Container Lifting Equipment Side Lift Semi Trailer
Brand: TITAN
SKU: 133892689

US$ 75,000 - 85,000 MOQ: 1 Unit

Key Specifications

Type:

Semi-Trailer

Material:

Steel

Certification:

Shandong Titan Vehicle Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao/shanghai

Delivery Detail:

Delivery time depends on order quantity.

Type Semi-Trailer

Material Steel

Certification CE

Size 14100*2500*4100mm

OEM No. self loading container truck

Max Payload 45T

Place of Origin Shandong, China

Brand Name TITAN

Model Number container side loader

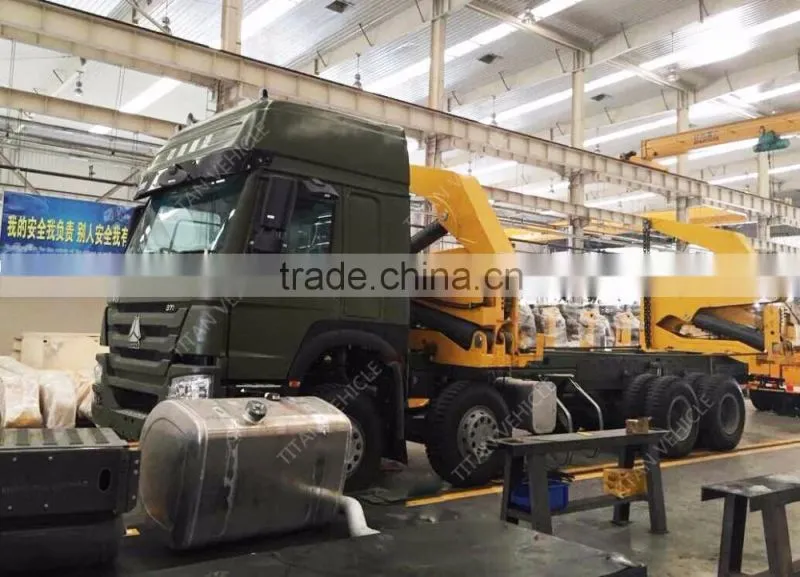

TITAN 40ft container lifting equipment side lift semi trailer

Product Description

Factory direct sale with lower price and short delivery time ,also we will offer the free accessories.

Add to My Favorites

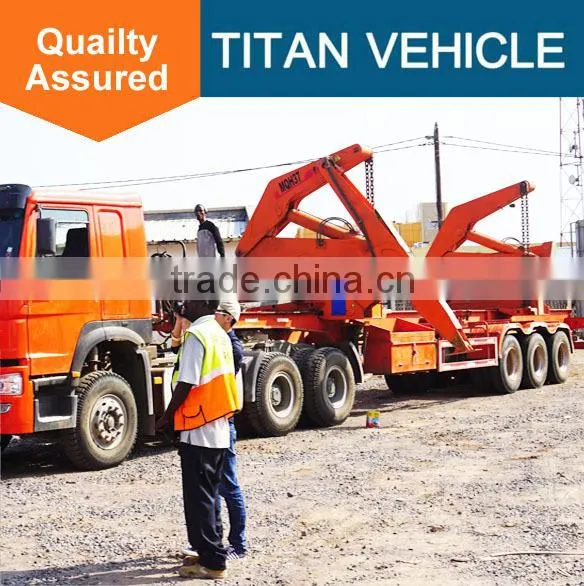

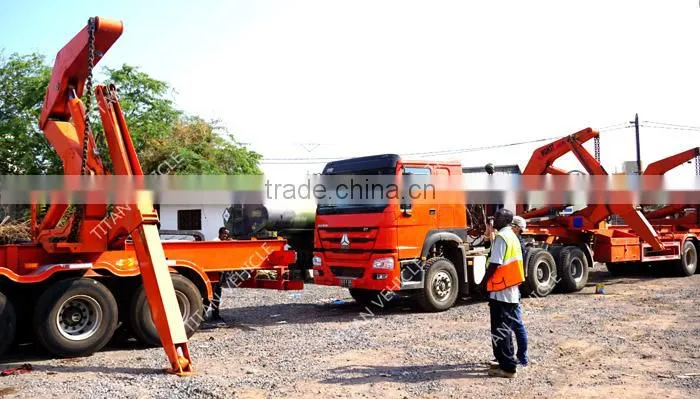

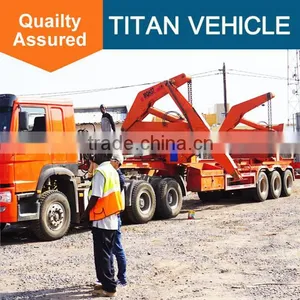

Some types of container side lifter we have exported to Africa market in this year.

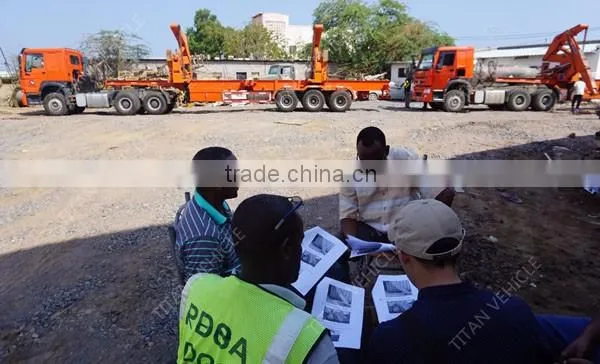

For Djibouti market ( Overseas engineer to provide technical service)

Overseas engineer to provide technical service .

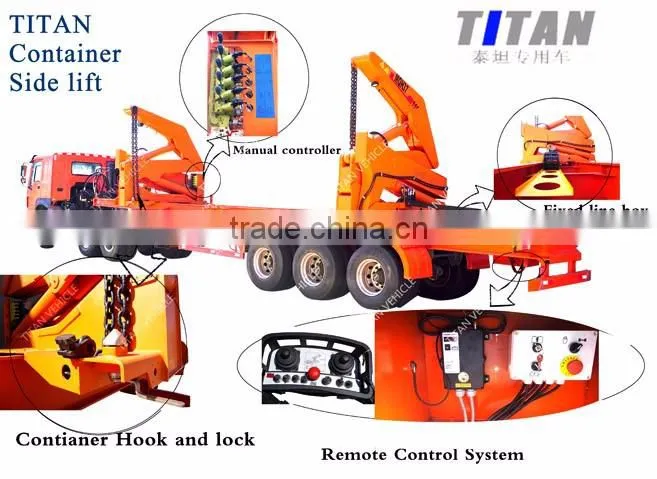

Detailed Images

High Strength Trailer Chassis	Improve the stability of trailer when lifting heavy duty containers

Double Cross beam	Improve the trailer chassis bearing capacity than normal trailer

-Wireless remote controller/Manual operatin	It can control trailer's legs and hanger within 30m , and also cut loading and off loading times significantly, Simple pictograms show the functions.

MAIN SPECIFICATION of self loading container truck trailer
Overall(LWH)	1410025004100mm
The distance between trailer and container	Optimum distance:400mm
The distance between trailer and container	The largest distance :1500mm
Side Lifter Specification	Design criteria: GB/T 3811-2008
Side Lifter Crane	Quality Side Crane
Max. lifting capacity	40000kg
Max.stabiliser outreach	3200mm
Max. working range	4000mm
Max. pressure of hydraulic	28MPa
Hydraulic system	Hydraulic pump: Italian CASAPPA
Electric control system	Hydraulic control valve: Netherlandish AMCA
	Telecontroller: German NBB
	Voltage: 12V
Two chain	Two chain: lgus (imported)
Diesel engine	Japanese Kubota diesel engine
Trailer Chassis	LWH:1410025004000mm
	Axles: 3*13 tons axles
	Tire: 12R22.5 tubless tire, 12 pcs
	Suspension:Heavy duty type mechanical suspension
	Kingpin:2 inch or 3.5 inch bolted type
	Landing gear: 28T
	Water-drenching device
Spare parts	Imported from Swedish
PRODUCT VIDEO ON YOUTUBE
https://youtu.be/a4hu3ejMzrQ (copy for watch)

Our Services


Quality: • in-house manufacture • high tensile steel • Low tare weight = high payload • XCMG made quality crane • Durable technology, easy to service	Safety: • Double hydraulic safety provides safe lifting • Lifting stops, if the support legs are not folded out • Roll- and tip-proof with long support leg outreach • Safe lifting; always four support points when stacking • Tried and tested, user-friendly technology

Service: • Detailed operating instructions also ,we have the Video Explanation • Overseas engineer to provide technical service • You can reach us at any time and get a rapid response • Competent technical service , • Rapid and safe deliveries of spare parts
