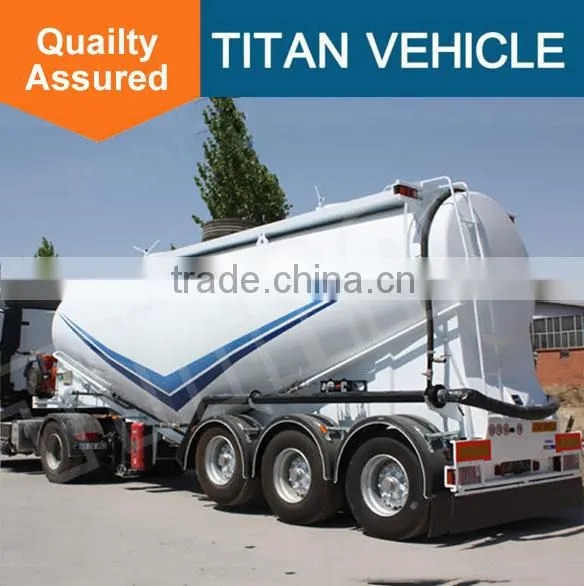

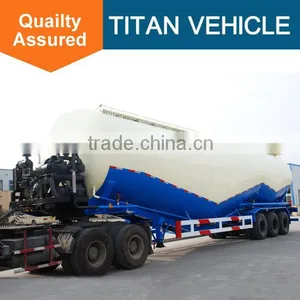

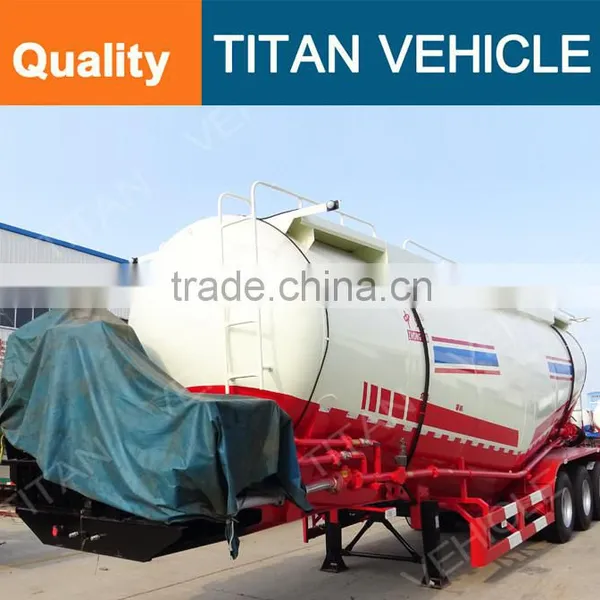

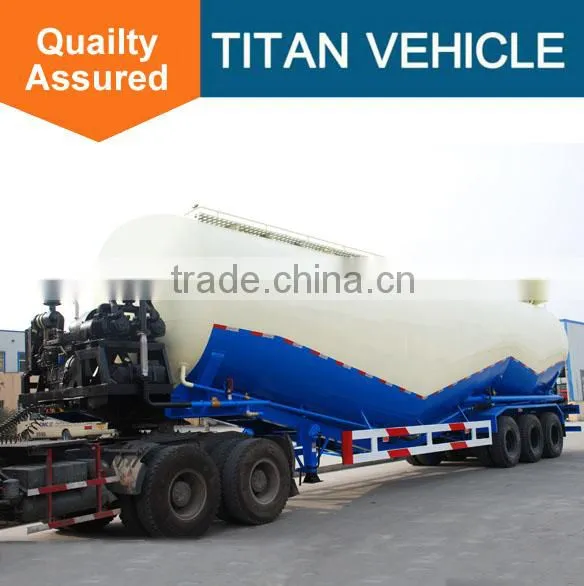

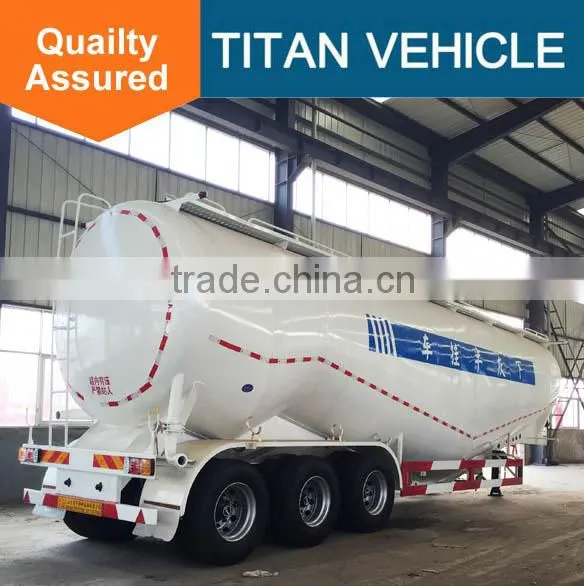

3 axle 60 Ton cement bulker trailer unloading bulk cement tanker for sale
Bulk cement tank semi trailer / cement bulk trailer / bulk cement semi-trailer / cement tanker trailer / cement transpot vehicle
1. 30m³-75m³ capacity available
2.Unloading speed: 1.3ton / mins
3.Residual ratio :<15kg
4.Customized for any type

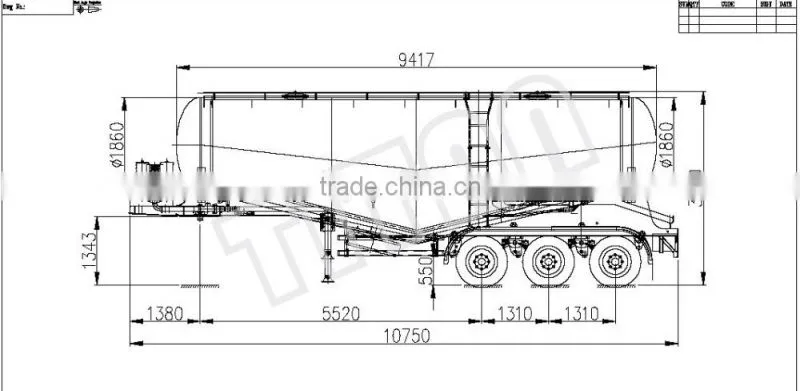

| Bulk Cement Tanker Trailer | |||
| Specification | |||
| Overall Length | 9500mm-13500mm | ||
| Overall Wide | 2500mm | ||
| Over Height | 3800mm-3990mm | ||
| Tare Weight | About 7500KGS-15000KGS | ||
| Total Volume | 27m3-85m3 | ||
| Tanker Body | |||
| Shape |
Optional(One Silo with V type or two, Three Silo Design |
Ratedwork Pressure | 0.2Mpa |
| Tanker Body | 5mm or 6mm/ Q235 Carbon steel | Diesel Engine |
KEFA4102/4105 or other brand |
| End plate | 5mm or 6mm/ Q235 Carbon steel | Compressor |
Bohai 12m³/14m³ or other brand |
| Manhole Cover | Cobon steel 500mm | Discharging Valve | Diameter is 3 or 4 inch |
| Discharging Pipe | 3 or 4 inch rubber hose, 1 pcs,6m/each | Catwalk |
With (Common or Special design) |
| Chassis | |||
| Axles | 2 or 3 axles, 13T/16T,BPW/FUWA brand | ||
| Main Beam | Q345 carbon steel, Welding Design | ||
| Support Legs | JOST(d200T) or China brand 28 T | ||
| Suspension | Mechanical suspension/Germany or America type / Air suspension | ||
| Leaf Spring | 90(W)mm*13(Thickness)*10Layer or other | ||
| Break Systerm | WABCO RE 6 relay valve | ||
| Rim | 9.00-22.5/8.00-20/8.5-20 | ||
| Tire | 12.00R22.5/315 80R22.5 / 11.00R20 / 12.00R20 Brand can be optional | ||
| King Pin | JOST 2.00 OR 3.5 inch bolt-in king pin | ||
| ABS | Optional | ||
| Painting |
Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
||
| Accessories | One Tool Box | ||
| Shipping Terms | By bulk cargo carrier or RORO, | ||
Add to My Favorites
|

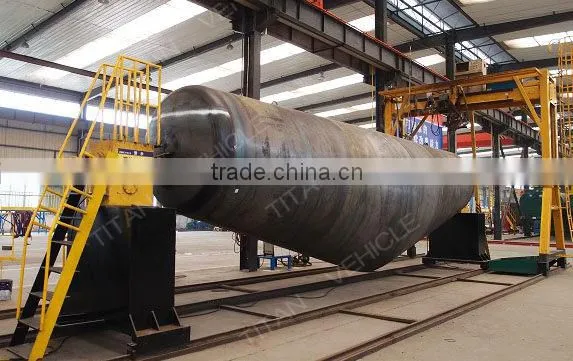

Auto matic welding equipment , it can make the tank body completely sealed. |

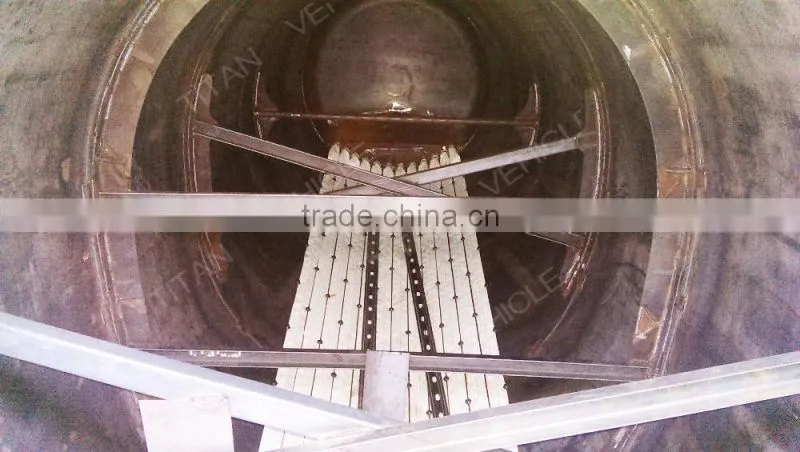

Strength design for internal support structure |
|

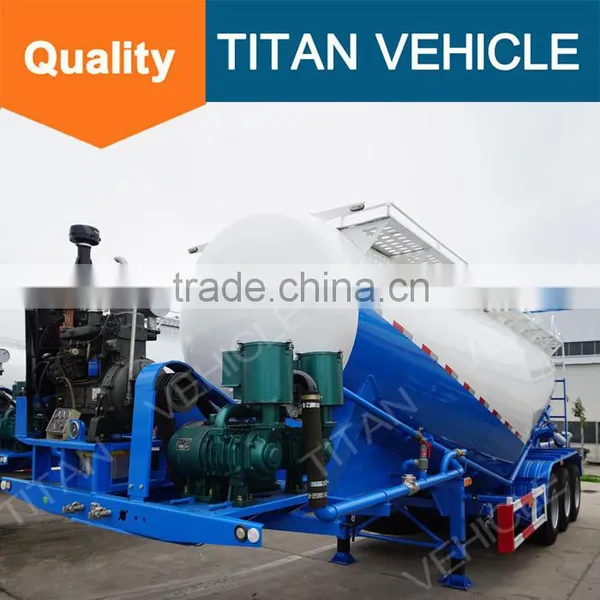

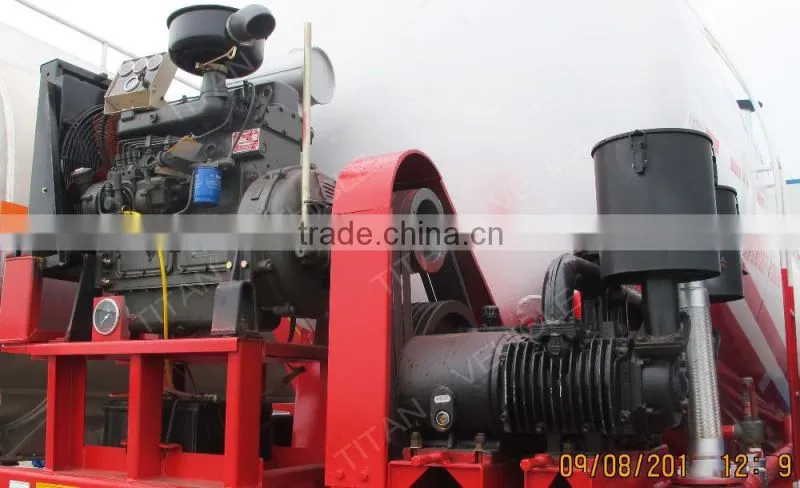

The bulk cement tanker semi trailer with the Wechai diesel engine and air compressor ,can have a longer service life |

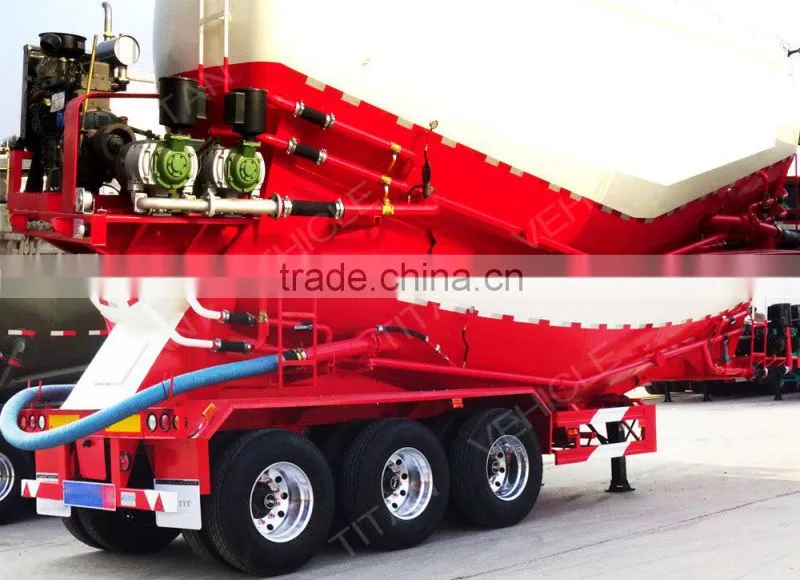

The designe of Help blowpipe and Pressure gauge can help us more safe and effective to discharge the cement |

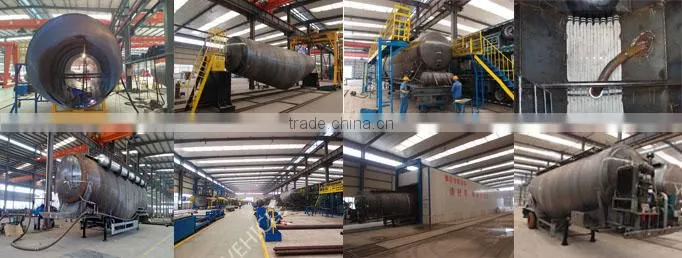

Advanced Production line for bulk cement tank semi trailer.
Video:
Main Features: Using fully automatic computer CAD design techology, tanks using automatic longitudinal/ring to the welding seam is firm and level off, can be independent warehouse storage, shipment different abrasive materials, unloading speed, low residual rate, safety performance is high, easy to operate.
Shape is round or V tanks,material can choose carbon steel, stainless steel, aluminum alloy. Inside the bag or fluidized bed or MIZIXING fluidized bed.
Good perforance of simple structure, convenient maintenance, vulcanization.Can choose air compressor direct drive transmission shaft(optional belt drive and motor drive)
Technical Index: Under the condition of working pressure of 0.2 Mpa, discharging speed is 1.2 to 1.5 T/mm residual rate of 2‰ or less,under certain conditions, the discharging height 25 m or more.
