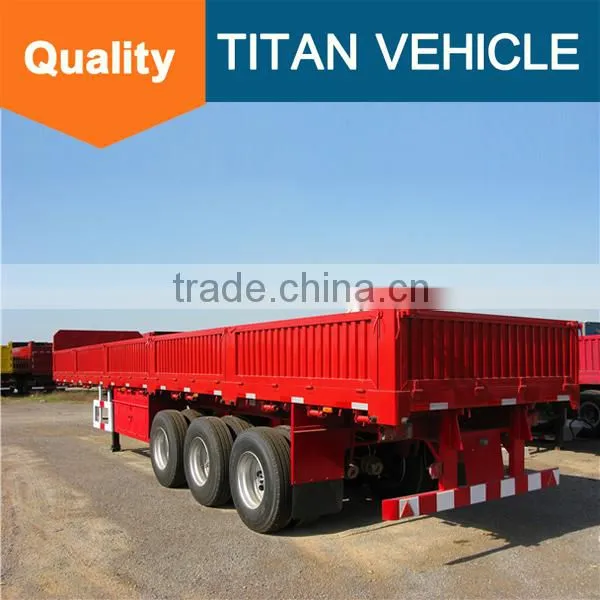

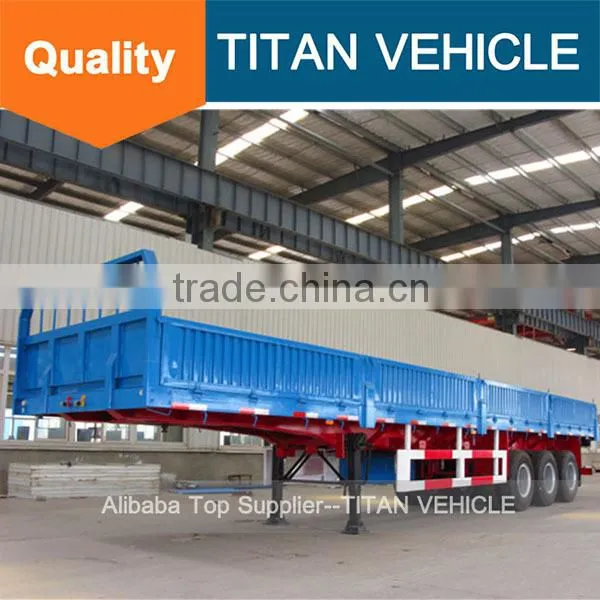

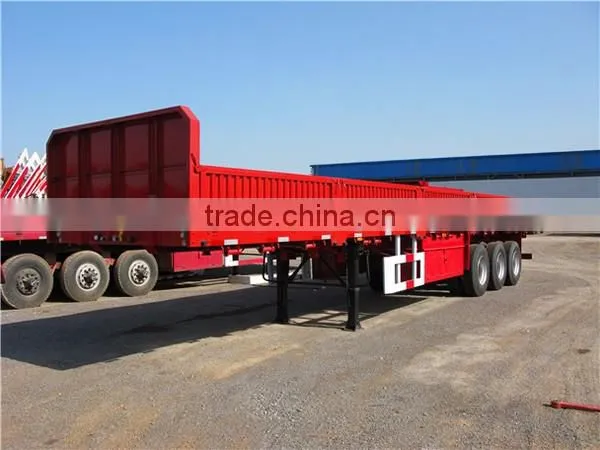

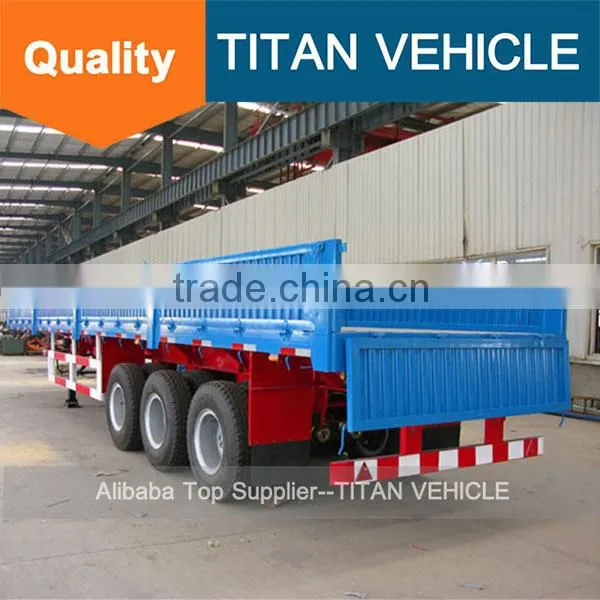

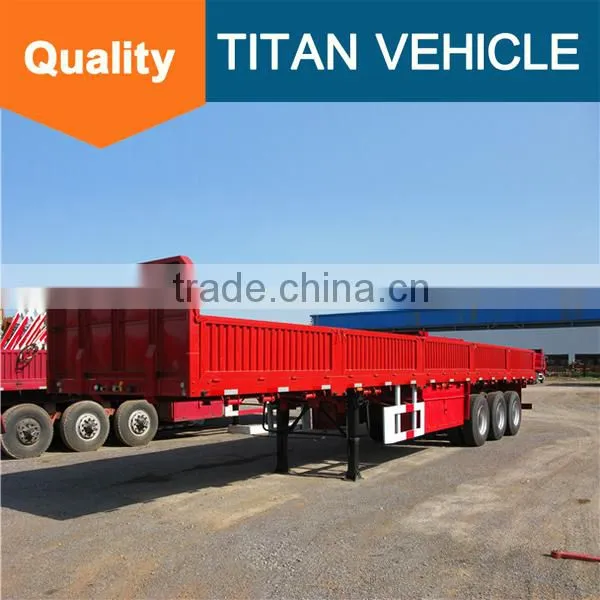

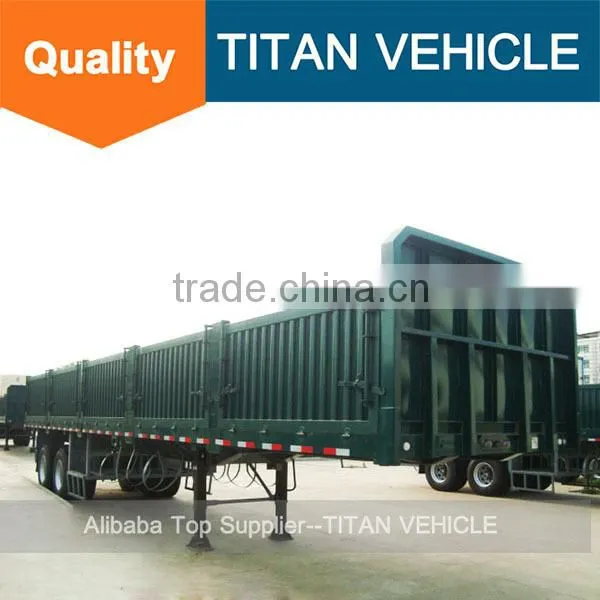

TITAN 50tons wall side cargo truck trailer for namibia good price sale
50tons wall side cargo truck trailer
| Length | 12500mm | ||||||||
| Width | 2500mm(2400 inside) | ||||||||
| Fence | Front 1500mm Rear and side 600mm (could be remove) | ||||||||
| Payload | 40Ton | ||||||||
| TOTAL WEIGHT | About 7.5Ton (with tires) | ||||||||
| RUNNING GEAR | |||||||||
| Suspension |
Mechanical Steel spring Suspension, Complete with all control adjusting arms .spring leafs. |
||||||||
| Leaf spring | 10 pcs Leaf spring ,(13mmx90mm) | ||||||||
| Wheels | 9.0 x13 pcs | ||||||||
| Tires | 12R22.5 x 13 pcs (1 SPARE TIRE) | ||||||||
| Twist lock | 12 no.of ISO twist lock for 1x20ft,2x20ft,1x40ft container | ||||||||
| Axles | 3-axle, capacity 13T each in heavy-duty execution,FUWA brand | ||||||||
| Brake system | RE6 relay valve ,T30/30 spring brake chamber;40L air tanks | ||||||||
| UNDERFRAME | |||||||||
| Main Beam |
Heavy duty and extra durability designed I beam; opting for high tensile steel Q345,welded by automatic submerged-Aac processes.Top flange 14mm,Middle Flange 8mm; bottom flange16mm |
||||||||
| Platform | 3mm diamond plate | ||||||||
| King pin | 2’’ bolt-in king pin | ||||||||
| Landing Gear | two-speed,manual operating ,heavy duty landing gear,28T capacity | ||||||||
| Mud Flaps | anti-sail, mounted on sliding tandem | ||||||||
| Bumper | Regular Bumper at the end | ||||||||
| Appendix | 1 tool box 1000x500x500mm | ||||||||
| 2 Spare tyre carriers | |||||||||
| Lights & Reflectors | 24V | ||||||||
| Paint | sand blasting before painting | ||||||||
| 2 coat of anticorrosive primer | |||||||||
| Color as per request | |||||||||
The bulk cargo flatbed trailer can be installed with the container lock so that the trailer also can load a contaianer when the side wall is opening.
1. Advanced production line and techinical equipment for container trailers, and the production capacity of 100 unit per month. Stock avaliable , Delivery time within 15 days.
2. Make to order : TITAN have capacity to design and produced flatbed trailer according your customers specific requirements.
Place order with in this month , we will supply you 500 USD spare parts freely for you
If this item is not what you like , then we suggest these items: More flatbed trailer, And i guess you may also like the following items:
|
|
| 3 Axles Skeleton Container Chassis Trailer | 3 Axles 40ft Flatbed Container Trailer |
|
|
| TITAN 3 Axles 40ft Container Tipper Trailer | TITAN 2 Axles 40ft Container Tipper Trailer |
