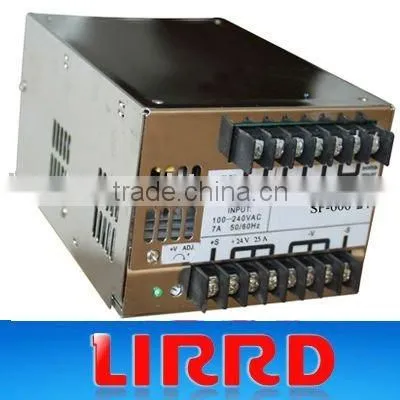

24V 25A Single Switching Power Supply(SP-600-24)

Name: 24V 25A Single Switching Power Supply(SP-600-24)
Brand: LIRRD
SKU: 133887019
Availability: InStock

24V 25A Single Switching Power Supply(SP-600-24) thumbnail-1

24V 25A Single Switching Power Supply(SP-600-24) photo-1

Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

LIRRD

Model Number:

SP-600-24

Contact Supplier Request Quote Chat Now

Zhejiang Lierd Relays Enterprise Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name LIRRD

Model Number SP-600-24

Output Power Other, >500W

Output Type Single

Input Voltage 220V

Output Voltage 24V

Output Current 25A

Specifications

24V 25A single switching power supply(SP-600-24)
CE certificate, better rediating effect
competitve price, high quality

24V 25A single switching power supply(SP-600-24)

600W PFC switching mode power supply
Competitived price and high reliability
105^oC Output capacitor
AC input power suitable for the world
High efficiency and low operation temperature
Soft-start current can reduce the AC input impact effeciticly
With short-circuit and overload protection
Compact size, light weight
100% full-load burn-in test
Installed with EMI filter, minimum wave

Model	S-600-12	S-600-13.5	S-600-15	S-600-24	S-600-27	S-600-48
DC output voltage	12V	13.5V	15V	24V	27V	48V
Output voltage range(Note:2)	±1%	±1%	±1%	±1%	±1%	±1%
Rated output current	50A	44A	40A	25A	22A	12.5A
Output current range	0-50A	0-44A	0-40A	0-25A	0-22A	0-12.5A
Wave and noise(Note:3)	150mVp-p	150mVp-p	150mVp-p	150mVp-p	150mVp-p	200mVp-p
Inlet stability(Note:4)	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
Load stability(Note:5)	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
DC output power	600W	600W	600W	600W	600W	600W
Efficiency	83%	84%	84%	85%	86.5%	87%
Adjustable range for DC voltage	10~13.2V	12~15V	13.5~18V	20~26.4V	24~30V	41~56V
Input current	12A/115V 7.5A/230V
AC inrush current	Cold-start current 25A/115A 50A/230V
Leakage current	<3.5mA/240VAC
Overload protection	105%~150% Type: pulsing hiccup shutdown Reset: auto recovery
Setup, rise , hold up time	±0.03%/°c(0~50°c)
Vibration	10~500Hz, 2G 10min,/1cycle, Period for 60min, Each axes
Withstand voltage	Input and output internal: 1.5KvAC, Input and enclosure:1.5KvAC, Output and enclosure:0.5KvAC
Working temperature and humidity	-10°c~+60°c(Refer to output derating curve), 20%~90%RH
Weight	2.1Kgs
Safety standards	Meet UL 1950 requirement (Not apply for the mark)
EMC standards	CISPR22(EN55.22), IEC1000-4,2,3,4,5,6,8,11IEC1000-3-2
Note: 1. The testing condition for the paramenter above is: 230VAC input, rated load, 25°c 70% RH. Temperatuer. 2. Error: include the setting error, line stability and load stability.(Note:5) 3. Wave test: adopting "A12" double wire for 20MHz, and 0.1UF&47UF capacitor short-circuit for interrupting. 4. Inlet woltage stability test: when is over load, the lowest voltage of inlet is up to the highest voltage. 5. Load stability test: The load is from 0% to 100%
