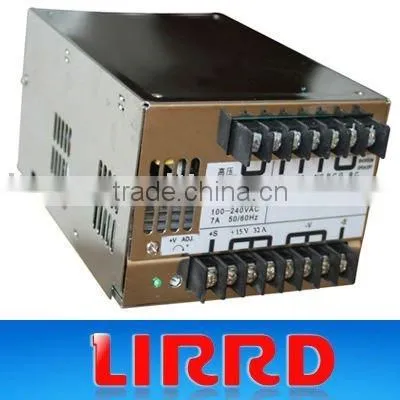

15V 32A Single Switching Power Supply(SP-500-15)

15V 32A Single Switching Power Supply(SP-500-15) thumbnail-1
15V 32A Single Switching Power Supply(SP-500-15) photo-1
Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
LIRRD
Model Number:
SP-500-15
Contact Supplier Request Quote Chat Now
Zhejiang Lierd Relays Enterprise Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name LIRRD
Model Number SP-500-15
Output Power 401 - 500W
Output Type Single
Input Voltage 220V
Output Voltage 15V
Output Current 32A

Specifications

15V 32A single switching power supply(SP-500-15)
CE certificate, better rediating effect
competitve price, high quality

15V 32A single switching power supply(SP-500-15)

  • 500W ac/dc switch power supply
  • Competitived price and high reliability
  • 105oC Output capacitor
  • AC input power suitable for the world
  • High efficiency and low operation temperature
  • Soft-start current can reduce the AC input impact effeciticly
  • With short-circuit and overload protection
  • Compact size, light weight
  • 100% full-load burn-in test
  • Installed with EMI filter, minimum wave

Model S-500-12 S-500-13.5 S-500-15 S-500-24 S-500-27 S-500-48
DC output voltage 12V 13.5V 15V 24V 27V 48V
Output voltage range(Note:2) ±1% ±1% ±1% ±1% ±1% ±1%
Rated output current 40A 36A 32A 20A 18A 10A
Output current range 0-40A 0-36A 0-32A 0-20A 0-18A 0-10A
Wave and noise(Note:3) 240mVp-p 240mVp-p 240mVp-p 240mVp-p 200mVp-p 300mVp-p
Inlet stability(Note:4) ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
Load stability(Note:5) ±1% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
DC output power 480W 486W 480W 480W 486W 480W
Efficiency 84% 84% 83% 86% 87% 87%
Adjustable range for DC voltage 10~13.2V 12~15V 13.5~18V 20~26.4V 24~30V 41~56V
Input current 7A/115V 3.5A/230V
AC inrush current 18A/115V 36A/230V
Leakage current <0.35mA/240VAC
Overload protection 105%~150% Type: pulsing hiccup shutdown Reset: auto recovery
High-temperature protection ERH3 > =55°c Fan on, < =45°c Fan off, > =70 °c,Cut off output(5~15V)
Temperature coefficient ±0.03%/°c(0~50°c)
Setup, rise , hold up time 1.5s,50ms, 20ms
Vibration 10~500Hz, 2G 10min,/1cycle, Period for 60min, Each axes
Withstand voltage Input and output internal: 1.5KvAC, Input and enclosure:1.5KvAC, Output and enclosure:0.5KvAC
Working temperature and humidity  -10°c~+60°c(Refer to output derating curve), 20%~90%RH
Weight 1.8Kgs
Safety standards Meet UL 1950 requirement (Not apply for the mark)
EMC standards CISPR22(EN55022), IEC1000-4,2,3,4,5,6,8,99 IEC1000-3-2

Note:                                                                                                                                                                1. The testing condition for the paramenter above is: 230VAC input, rated load, 25°c 70% RH. Temperatuer.

.2. Error: include the setting error, line stability and load stability.(Note:5)

3. Wave test: adopting "A12" double wire for 20MHz, and 0.1UF&47UF capacitor short-circuit for interrupting.

4. Inlet woltage stability test: when is over load, the lowest voltage of inlet is up to the highest voltage.

5. Load stability test: The load is from 0% to 100%
