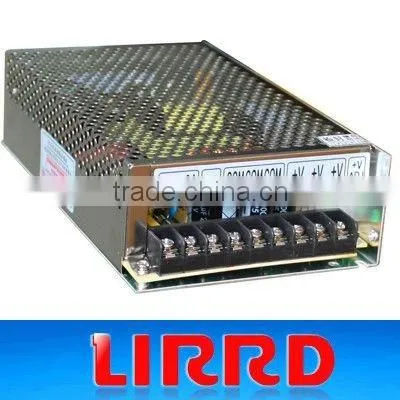

200W Industrial Switching Power Supply S-200

200W Industrial Switching Power Supply S-200 thumbnail-1
200W Industrial Switching Power Supply S-200 photo-1
US$ 1 - 40 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
LIRRD
Model Number:
S-200
Output Power:
101 - 200W
Contact Supplier Request Quote Chat Now
Zhejiang Lierd Relays Enterprise Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name LIRRD
Model Number S-200
Output Power 101 - 200W
Output Type Single
Input Voltage Other, 88-132VAC/176~264VAC
Output Voltage 5V/12V/15V/24V
Output Frequency 47~63Hz
Output Current 35A/16.5A/13.3A/8.5A

Specifications

S-200 series industrial switch power supply
1.CE/ISO9001 Approve
2.Competitived price ,good quality
3.Sample availbable

  • S-200 series industrial switch power supply
  • Competitived price and high reliability
  • 105oC Output capacitor
  • AC input power suitable for the world
  • High efficiency and low operation temperature
  • Soft-start current can reduce the AC input impact effeciticly
  • With short-circuit and overload protection
  • Compact size, light weight
  • 100% full-load burn-in test
  • Installed with EMI filter, minimum wave

Model S-200-5 S-200-12 S-200-15 S-200-24
DC output voltage 5V 12V 15V 24V
Output voltage rang(Note:2) ±2% ±1% ±1% ±1%
Rated output current 35A 16.5A 13.3A 8.5A
Output current range 0-35A 0-16.5A 0-13.3A 0-8.5A
Wave and noise(Note:3) 100mVp-p 100mVp-p 100mVp-p 100mVp-p
Inlet stability(Note:4) ±0.5% ±0.5% ±0.5% ±0.5%
Load stability(Note:5) ±1% ±0.5% ±0.5% ±0.5%
DC output power 200W 200W 200W 200W
Efficiency 75% 80% 80% 82%
Adjustale range for DC voltage 4.75-5.5V 10.8-13.2V 13.5-16.5V 21.6-26.4V
AC input voltage range 170~264VAC 47~63Hz 248~370VDC
Input current 4.2A/115V 2.2A/230V
AC Inrush current Cold-start current 18A/115V 36A/230V
Leakage current <0.5mA/240VAC
Overload protection 105%~150% Type: pulsing hiccup shutdown Reset: auto recovery
Over-voltage protection 115%~135%
Temperature coefficient ±0.03%/°c(0~50°c)
Setup, rise, hold up time 200ms, 100ms, 20ms
Vibration 10-500Hz, 2G 10min,/1cycle, Period for 60min, Each axes
Withstand voltage Input and output internal 1.5KVAC, Input and enclosuer 1.5 KVAC, Output and enclosuer 0.5 KVAC
Working temperature and humidity  -10°c~+60°c, Refer to output derating curve, 20%~90% RH
Store temperature and humidity  -20°c~+85°c, 10%~95%RH
Weight 0.9Kgs
Satety standards Meet UL 1012 requirment ( Not apply for the mark)
EMC standards Meet FCC PART 15 J Conduction calss A

Note:                                                                                                                                                                  1. The testing condition for the parameter above is: 230VAC input, rated load, 25°c 70% RH.Temperatuer.

2. Error: include the setting error, line stability and load stability.(Note:5).

3.Wave test: adopting "A12" double wire for 20 MHz, and 0.1 UF&47UF capacitor short-circuit for interrupting.                                                                                                                                                      4. Inlet voltage stability test: wht is overload, the lowest voltage of inlet is up to the highest voltage.

5. Load stability test: The load is from 0% to 100%
