Specifications
60W 24V 2.5A single output power supply/cctv power supply/dc power supply S-60CE certification, better Thermal Dissipation

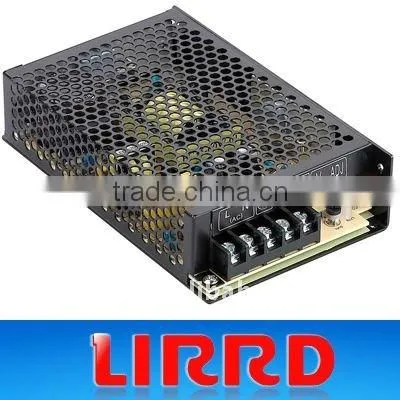

60W 24V 2.5A single output power supply/cctv power supply/dc power supply S-60
1. 105oC Output capacitor
2. AC input power suitable for the world
3. High efficiency and low operation temperature
4. Soft-start current can reduce the AC input impact effeciticly
5. With short-circui and overload protection
6. Compact size, ligh weight
7. 100% full-load burn-in test
8. Installed with EMI filter, minimum wave
| Model | S-60-5 |
S-60-12 |
S-60-15 |
S-60-24 |
DC output voltage |
5V |
12V |
15V |
24V |
Output voltage rang(Note:2) |
±2% |
±1% |
±1% |
±1% |
Rated output current |
12A |
5A |
4A |
2.5A |
Output current range |
0-12A |
0-5A |
0-4A |
0-2.5A |
Wave and noise(Note:3) |
120mVp-p |
120mVp-p |
150mVp-p |
150mVp-p |
Inlet stability(Note:4) |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
Load stability(Note:5) |
±1% |
±0.5% |
±0.5% |
±0.5% |
DC output power |
60W |
60W |
60W |
40W |
Efficiency |
72% |
76% |
77% |
79% |
Adjustale range for DC voltage |
+10,-5% |
+10% |
+10% |
+10% |
| Input current | 1.6A/115V 0.8A/230V | |||
| AC Inrush current | Cold-start current 30A/115V 60A/230V | |||
| Leakage current | <3.5mA/240VAC | |||
| Overload protection | 105%~150% Type: pulsing hiccup shutdown Reset: auto recovery | |||
| Temperature coefficient | ±0.03%/°c(0~50°c) | |||
| Setup, rise, hold up time | 800ms, 50ms, 10ms/115V 300ms, 50ms, 80ms/230VAC | |||
| Vibration | 10-500Hz, 2G 10min,/1cycle, Period for 60min, Each axes | |||
| Withstand voltage | Input and output internal 1.5KVAC, Input and enclosuer 1.5 KVAC, Output and enclosuer 0.5 KVAC | |||
| Working temperature and humidity | -10°c~+60°c Refer to output derating curve, 20%~90% RH | |||
| Store temperature and humidity | -20°c~+85°c, 10%~95%RH | |||
| Weight | 0.5Kgs | |||
| Satety standards | UL 1012 TUV EN6050(IEC, UL 1950) Approved | |||
| EMC standards | CISPR22(EN55022), IEC801-2,3,4 IEC555-2 Verfication | |||
|
Note: 1. The testing condition for the parameter above is: 230VAC input, rated load, 25°c 70% RH.Temperatuer. 2. Error: include the setting error, line stability and load stability.(Note:5). 3.Wave test: adopting "A12" double wire for 20 MHz, and 0.1 UF&47UF capacitor short-circuit for interrupting. 4. Inlet voltage stability test: wht is overload, the lowest voltage of inlet is up to the highest voltage. 5. Load stability test: The load is from 0% to 100% | ||||
Anything you concern, please be free to contact us. We will be more than happy to offer any help we can.
