30W 24V Led Din Rail Switching Power Supply(DR-30-24)

Name: 30W 24V Led Din Rail Switching Power Supply(DR-30-24)
Brand: LIRRD
SKU: 133886937

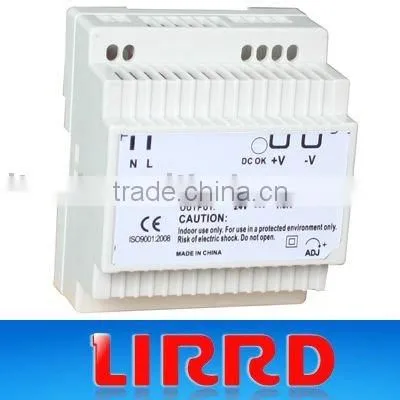

30W 24V Led Din Rail Switching Power Supply(DR-30-24) thumbnail-1

30W 24V Led Din Rail Switching Power Supply(DR-30-24) photo-1

Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

LIRRD

Model Number:

DR-30-24

Contact Supplier Request Quote Chat Now

Zhejiang Lierd Relays Enterprise Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name LIRRD

Model Number DR-30-24

Output Power 1 - 50W

Output Type Single

Input Voltage 220V

Output Voltage 24V

Output Current 1.5A

Specifications

30W 24V led din rail switching power supply(DR-30-24)
Offer CE certification
Competitive price, high quality, prompt deliver

30W 24V led din rail switching power supply(DR-30-24)

105^oC Output capacitor
AC input power suitable for the world
High efficiency and low operation temperature
Soft-start current can reduce the AC input impact effeciticly
With short-circuit and overload protection
Compact size, light weight
100% full-load burn-in test
Installed with EMI filter, minimum wave

Model	DR-30-5	DR-30-12	DR-30-15	DR-30-24
DC output voltage	5V	12V	15V	24V
Output voltage range(Note:2)	±2%	±1%	±1%	±1%
Rated output current	3A	2A	2A	1.5V
Output current range	0-3A	0-2A	0-2A	0-1.5V
Wave and noise(Note:3)	100mVp-p	200mVp-p	240mVp-p	480mVp-p
Inlet stability(Note:4)	±1%	±1%	±1%	±1%
Load stability(Note:5)	±1%	±1%	±1%	±1%
DC output power	15W	24W	30W	35W
Efficiency	72%	77%	77%	80%
Adjustable range for DC voltage	4.75~5.5V	10.8~13.2V%	13.5~16.5V%	21.6~26.4V
Input current	1.5A/115V 0.75A/230V
AC inrush current	Cold-start current 30A/115V 60A/230V
Leakage current	<1mA/240VAC
Overload protection	105%~150% Type: pulsing hiccup shutdown Reset: tuto recovery
Temperature coefficient	±0.03%/°c(0~50°c)
Setup, rise , hold up time	800ms, 60ms, 50ms
Vibration	10~500Hz, 2G 10min,/1cycle, Period for 60min, Each axes
Withstand voltage	Input and output internal: Input and encolsur: 1.5KvAC, Output and enclosure: 0.5KvAC
Isolation resistance	Input and output internal: Input and enclosure, Output and enclosure:500VDC/100MΩ
Working temperature and humidity	-10°c~+60°c(Refer to output derating curve), 20%~90%RH
Working temperature and humidity	-10°c~+60°c(Refer to output derating curve), 20%~90%RH
Overall dimension	78×93×56mm
Weight	0.27Kgs
Safety standards	Meet UL 1012 requiement (Not apply for the mark)
EMC standards	Meet FCC PART 15 J Conduction class B
Note: 1.The testing condition for the paramenter above is: 230VAC input, rated load,25^oC 70% RH,Temperatuer. 2. Error.inculde the setting error, line stability and load stability.(Note:5). 3. Wave test: adopting "A12" double wire for 20MHz, and 0.1UF&47UF capacitor short-circuit for interrupting. 4. Inlet voltage stability test: when is over load, the lowest voltage of inlet is up to highest voltage. 5. Load stability test: The load is from 0% to 100%.
