Home > Electrical & Electronics > Power Supply & Distribution > Switching Power Supply > LED Dual Output AC/DC Switching Power Supply D-60-A

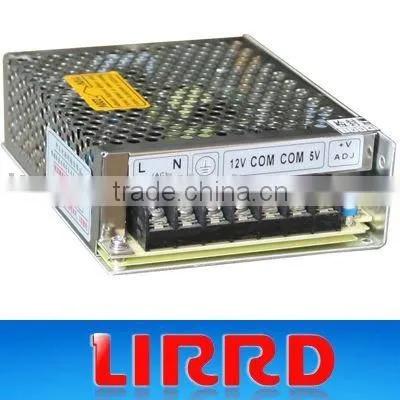

LED Dual Output AC/DC Switching Power Supply D-60-A

Name: LED Dual Output AC/DC Switching Power Supply D-60-A
Brand: LIRRD
SKU: 133886889

LED Dual Output AC/DC Switching Power Supply D-60-A thumbnail-1

LED Dual Output AC/DC Switching Power Supply D-60-A photo-1

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

LIRRD

Model Number:

D-60-A

Contact Supplier Request Quote Chat Now

Zhejiang Lierd Relays Enterprise Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo/shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name LIRRD

Model Number D-60-A

Output Power 51 - 100W

Output Type Dual

Input Voltage 220V

Output Voltage 5V 12V in one channel

Output Current 4A 3A accordingly

Specifications

LED dual output AC/DC switching power supply D-60-A
CE approval, with better radiating effect
high quality, best serveice

LED dual output AC/DC switching power supply D-60-A

1.60W dual output switching power supply
2.Competitived price,Shortest lead time
3.Output:5V,12V and 5V,24V,sample available

60W dual output switch power supply
Competitived price and high reliability
105^oC Output capacitor
AC input power suitable for the world
High efficiency and low operation temperature
Soft-start current can reduce the AC input impact effeciticly
With short-circuit and overload protection
Compact size, light weight
100% full-load burn-in test
Installed with EMI filter, minimum wave

Model	D-60A		D-60B
	CH1	CH2	CH1	CH2
DC output voltage	5V	12V	5V	24V
Output voltage range(Note:2)	±2%	±6%	±2%	±5%
Rated output current	4A	3A	3A	1.8A
Output current range	0.3-6A	0.2-4A	0.3-6A	0.2-2.2A
Wave and noise(Note:3)	75mVp-p	150mVp-p	75mVp-p	150mVp-p
Inlet stability(Note:4)	±0.5%	±1%	±0.5%	±1%
Load stability(Note:5)	±0.5%	±4%	±0.5%	±4%
DC output power	56W		58W
Efficiency	73%		73%
Adjustable range for DC voltage	CH1; +10, -5%		CH1; +10, -5%
AC input voltage range	85~264VAC ,47~63Hz;120~370VDC
Input current	2A/115V 1A/230V
AC inrush current	Cold-start current 30A//115V,60A/230V
Leakage current	<1mA/240VAC
Overload protection	105%~150% Type: pulsing hiccup shutdown Reset: auto recovery
Over-voltage protection	CH1: 5.75~6.75V
Temperature coefficient	±0.03%/°c(0~50°c)ON+5V
Setup, rise , hold up time	200ms,50ms, 20ms
Vibration	10~500Hz, 2G 10min,/1cycle, Period for 60min, Each axes
Withstand voltage	Input and output internal: Input and encolsur: 1.5KvAC, Output and enclosure: 0.5KvAC
Isolation resistance	Input and output internal: Input and enclosure, Output and enclosure:500VDC/100MΩ
Working temperature and humidity	-10°c~+60°c(Refer to output derating curve), 20%~90%RH
Overall dimension	159×97×38mm
Weight	0.55Kgs
Safety standards	UL 1950 TUV EN60590
EMC standards	CISPR22(EN55022)class B, IEC801-2,3,4 IEC555-2 Verification
Note: 1. The testing condition for the paramenter above is: 230VAC input, rated load, 25 °c70% RH. Tempetature. 2. Error. include the setting error, line stability and load stability. (Note:5). 3. Wave test: adopting "A12" double wire for 20MHz, and 0.1 uf&47UF capacitor short-cicuit for interrupting. 4. Inler woltage stability test: when is over load, the lowest voltage of inlet is up to the highest voltage. 5. Load stability test: The load is from 0% to 100%. 6. Total output canba maxinum Current, total load can not exceed the maxium output power.
