Specifications
CO2 laser marking machine1,Use the digital control system
2,High speed and high precision
3,Good output beam quality

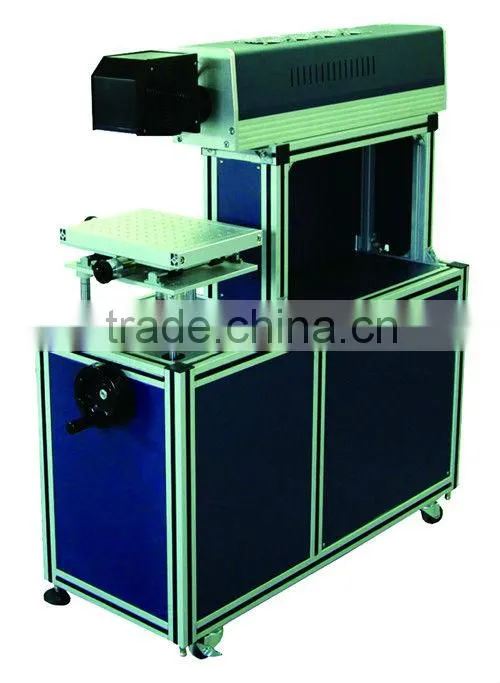

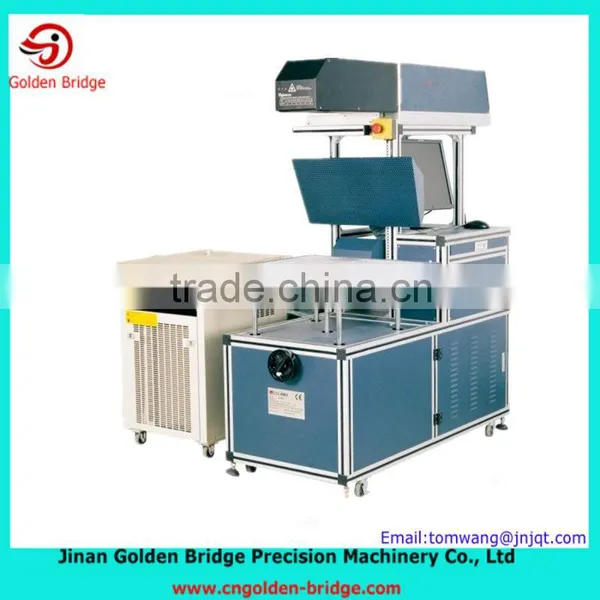

Cloth CO2 Laser Marking and Engraving Machinery
♦ Brief Introduction
CO2 laser is a kind of gas laser, its wavelength is 10.64 µ m, belong to the infrared frequency CO2
laser, there is big power and high electro-optical conversion rate. CO2 laser with the CO2 gas as
working substance, CO2 and other auxiliary other filling the discharge tube, when the electrode with
high pressure, discharge pipe produce glow discharge, can make the gas molecular release laser,
laser energy will release after amplification, laser processing.
♦ Applicable materials
Leather, cloth, acrylic, plastic, rubber, epoxy resin, resin glass, shell nameplate
♦ Applicable industries
Widely used in food packaging, craft gifts, beverage packaging, etc.
♦ Technical parameters
Laser-type |
CO2 seal from type glass tube laser/ American rf CO2 laser( can choose)_ |
laser power |
60w or as you request |
Consume power |
1.0Kw |
Minimum line width |
0.015mm |
optical maser wavelength |
10.64µm |
|
Laser repetition frequency
|
≤20KHz |
The highest carving speed |
7000mm/s |
Vibrating mirror format |
200X200mm or as you request |
|
type of cooling
|
Water protection system |
working voltage |
220V/50Hz(110V/60Hz) |
Format of Instrucktions |
PLT,BMP,AL,DXF |
operating ambient temperature |
5°C~35°C |
Min character |
0.8mm |
pulse width |
20KHz |
Marking style |
Plane, cylinder |
Marking depth |
≤0.5mm |
repeat precision |
±0.01mm |
Weight of machine |
100Kg |
overall dimension |
1700X500X1200mm |
Packaging |
packed in Plywood wooden cases |
♦ Marking effect
♦View of Golden Bridge
Jinan Golden Bridge Precision Machinery Co., Ltd,located in the beautiful spring city, JINAN, CHINA, has been focused on the development, production and marketing of high quality industrial auto-mation parts. Established in 1999,our company is committed to national industrial development and
innovation .We adhere "Effectiveness,Pragmatic, Preciseness, Innovation" as our principle. So far,
our company has imported processing centers,including CNC milling machines, CNC cutting machines and the advanced mechanical processing facilities. Our products ave been exported to the world-wide countries and regions, such as , European countries, North America, South American
countries,Africa, the Middle East and Asian countries etc. Furthermore,our products have obtained
a high reputation from our customers from all over the world.
PART MARKING MACHINE PRODUCTS
OUR COMPANY IN CHINA INTERNATIONNAL IONDUSTRY FAIR IN OCT.2012
Certification
♦ Delivery & Packaging
♦ After sales service
1.One year for free warranty ,high distribution model for two years
(include whole machine and parts, the material except)
2.Warranty maintenance and replacement parts
3.Free design and guide for customer
4.Free software update and professional technical support
As a professional manufacture laser marking machines
are avaliable according to your technical and drawing plans.
small batch can have a fast delivery!
Choose Golden Bridge,Choose Success!
