Medical color doppler Ultrasound Diagnostic System, color doppler ultrasound

5500 portable Color Doppler Ultrasound machine(Touch Screen)

Feature:

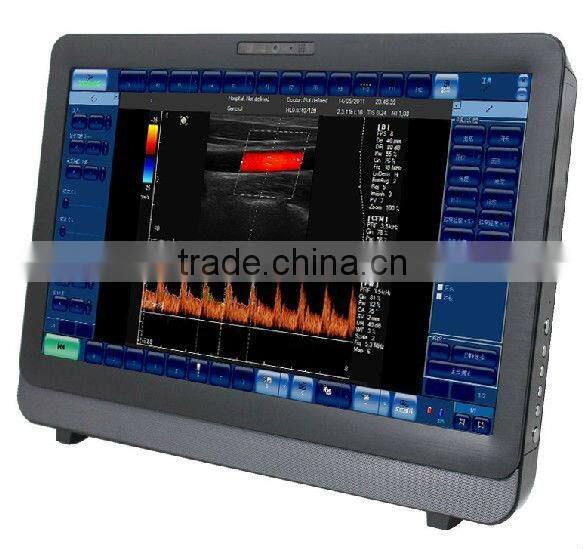

-22 inch color LED Touch Screen

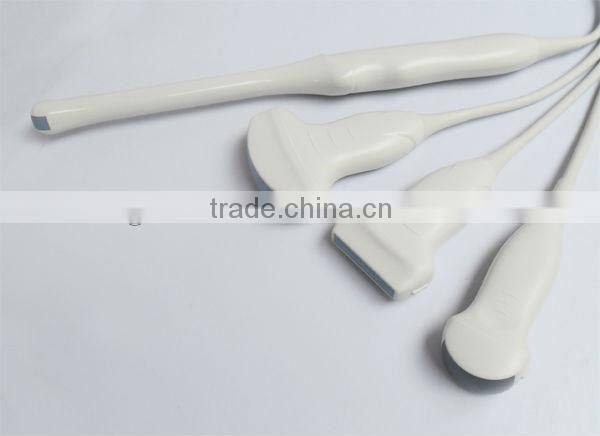

-With multiple probes to fit different uses and budgets
-Imaging Mode: B, BB, M, CD, PWD, CWD, DirPwr, Pwr
-High Definition Multiple Color Doppler mode imaging, include supports most Doppler imaging and advanced imaging processing for cardiac, vascular access, and OB diagnostics.

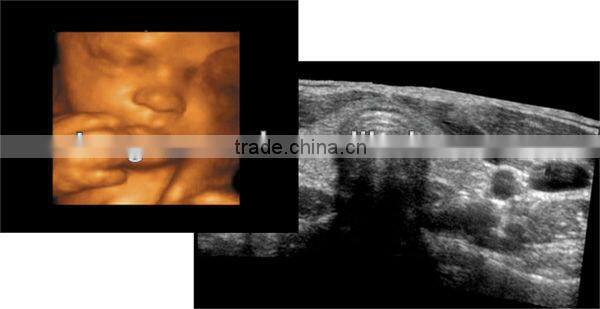

-Can be equipped in addition with 3D and panoramic image processing for volume reconstruction, visualization, segmentation, and measurement.

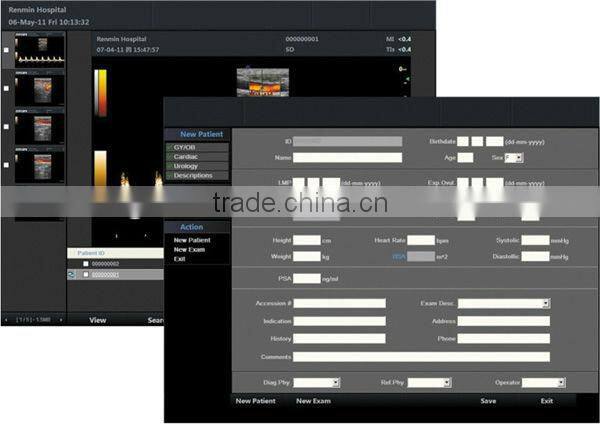

-Can install and run all applications with Microsoft? Windows? including patient management systems for better follow up, as well as network tools to access PACS data
-Large volume store and preview, edit records (image, voice comments, cineloop video) by hardisk, USB flash disk, DVD
-Triplex Display: Real-time triplex display B/ Color Doppler/ Pulsed Spectral Doppler (Three TGCs can be adjusted respectively)
-THI (Tissue Harmonic Imaging) technology: Suppress speckle noise, brighten image and improve the image quality
-One-key Optimization: One key for eight-parameter adjustment, easy image optimization.
-Powerful Measurement Software: Versatile clinic-oriented measuring software package
-Image Management: Versatile image format/ large capacity cineloop storage/ preview/ edit
-Can maintain and update by internet

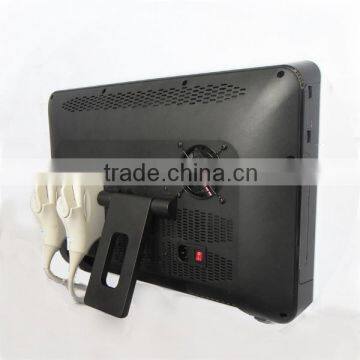

-Space saving by the integration of color doppler ultrasound scanner and office computer, and can either lay on a desk or be wall mounted.
-Can be controlled either through a regular PC keyboard and a mouse, or a dedicated ultrasound keyboard.
-Except general use, special suit for use in operation room or ambulances
-2 probe sockets

• digital transmit focusing
• multi focus mode:
  • transmit/receive focusing
  • programmable focus area presets
• dynamic focus mode:
  • transmit variable focus
  • dynamic receive focus

• High Line Density scan mode for better resolution
• TGC Control, 5-10 sliders (customizable) 40 dB
• dynamic range: 120 dB, 8 values
• overall gain control
• M - mode sweep speed control
• acoustic power control
• variable frame averaging
• brightness, contrast
• advanced gamma control: 8 fixed curves, 8 user defined (custom)
• scan direction, rotation, up-down controls
• negative / positive control
• bi-linear interpolation
• echo enhancement control
• noise rejection function
• speckle reduction and structure improvement PureView: 8 algorithms

• mouse / trackball / keyboard operation
• anatomical icons with transducer position indicator
• direct e-mail sending with image or video attachment via Internet
• DICOM file push to server
• printing on system printer
• unlimited programmable presets for clinically specific imaging
• TV output via computer display adapter

• image and video save / load
  • AVI
  • JPG
  • BMP
  • PNG
  • TIF
  • DCM (DICOM uncompressed)
  • DCM (DICOM-JPEG RGB/YBR)
  • DCM (DICOM-JPEG RGB/YBR Video)
  • TPD (Picture Data)
  • TVD (Video Data)

• Verification SCU
• Modality Worklist (MWL) SCU
• Modality Performed Procedure Step (MPPS) SCU
• Store SCU (images, cines)
• Print SCU (grayscale, color)

• the set of predefined skin schemes for software interface
• the set of predefined buttons images
• Multilanguage support, languages:B+M, B+PW layout position, size
  • Chinese
  • English
  • German
  • Italian
  • Korean
  • Lithuanian
  • Magyar
  • Polish
  • Romanian
  • Russian
  • Spanish
• ultrasound area size
• font size
