Professional Infrared Mammary Gland Inspection Equipment for Mammary Diseases

FOB Price

Negotiable / Unit

1 Unit(Min. Order)

Port shenzhen shanghai
Payment TermsT/T L/C D/P D/A Money Gram Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type	Other, Infrared mammary		Brand Name	TR
Model Number	TR5000C		Place of Origin	Jiangsu, China

Product Description

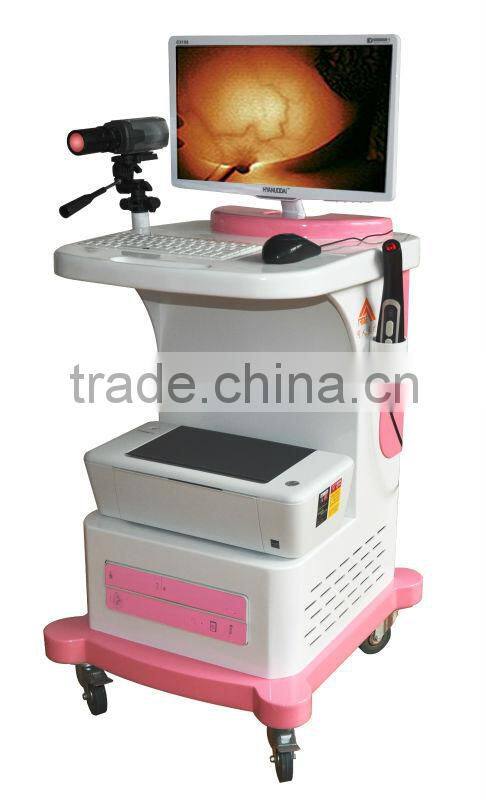

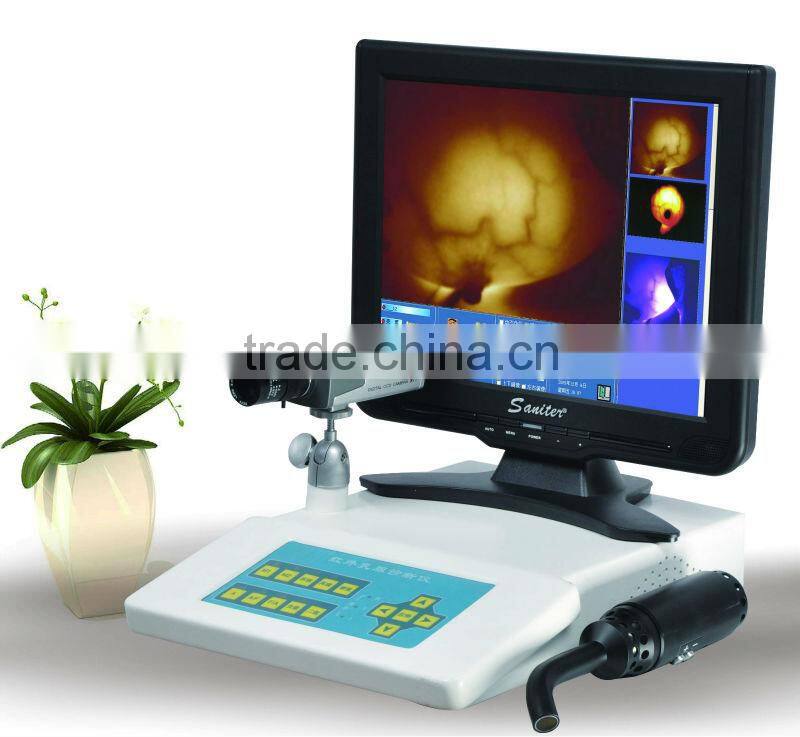

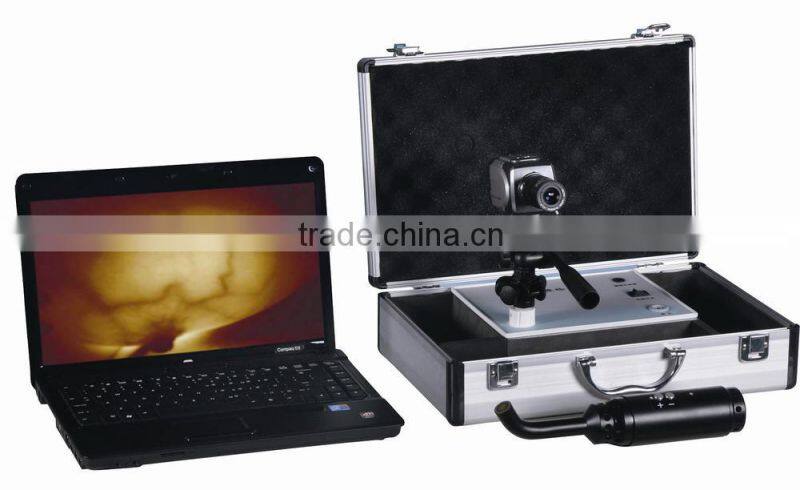

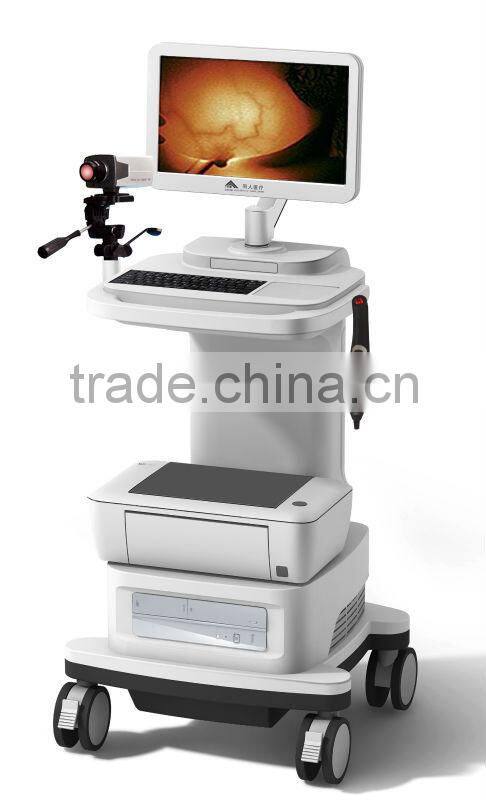

TR5000 Series Infrared Mammary Tester

New generation of infrared mammary tester is based on the latest EXVIEW HAD CCD infrared photographic technology of SONY. Applying the principle regarding the absorption difference of infrared lights among different body tissues, TR5000 series infrared mammary testers produce infrared lights from the infrared probe and project the lights on mammary. Using the SONY infrared CCD camera to acquisition images, the system processes these images and finally displays the mammary images on the screen to show various symptoms of mammary diseases. According to the difference of shadow darkness, boundary and blood vessel distribution, the following abnormities and their nature can be indicated such as tumors, hyperplasia, inflammation, cyst as well as other mammary diseases. Clinical practices have proven its quickness and accuracy in diagnosis.

Product Characteristics

Apply the latest EXVIEW HAD CCD infrared photographic technology of SONY, combine the lens which can change its focus, can adjust the focus and aperture, and can magnify and minify the image

High luminance infrared photographic optic fiber probe, infrared lamp which is specialized for medical use, long life, good color temperature, low temperature, high penetrability, ensure the real and clear image

Use international advanced corporation-grade large database and image processing software, provide powerful image processing function: the gray scale can reach 256, dynamic pseudo color coding technology, acquisition, frozen, video, image processing, image comments, enhance, specialized case management system, convenient to save files, query, retrieve, backup and record

Original famous brand computer with high quality, provide high-speed and steady system, high resolution color inkjet printer which can print reports

Professional trolley and multi-direction bracket especially for medical use, white LCD monitor and white super thin iron board keyboard which are specially made, humanized design, beautiful out-looking, luxury and generous, suitable for clinical use

Technical Parameters

Gray scales: 256, 8Bit A/D

Video signal output: amplitude 1Vp-p, Impedance 75Ω

Simulated signal input: standard TV signal 1Vp-p input, 525 or 625 lines/ field

Hard disk storage volume: ≥160G

Clock frequency: 200MHz

Displaying color: 24 bits dynamic pseudo color, support dynamic pseudo color coding

Lowest luminosity of camera:0.1Lux, imported high resolution and low luminosity CCD digital camera which is specialized for infrared use, provide clear and exquisite images

Camera resolution: ≥470TVL

Displaying mode: display in dual screen at the same time

Length of infrared light: 0.8 to 1.5 micron

Frequency of probe light: 0.2W to 1W which can be adjusted continuously, specialized infrared optic fiber output, low temperature rising, high luminance, long life, averaged luminosity, clear and real image, the light source will not produce heat

Output luminosity of probe: 0 to 10000Lx which can be adjusted continuously, intellectualized electronic adjustment, the power can be cut off automatically to protect from damage, safe and convenient

Diameter of probe light beam: ≥7mm

Input power wattage: ≤300VA

System resolution: ≥400 lines

Real time dynamic image processing functions: acquisition, frozen, compare, save, delete, dynamic recording, cine loop

Powerful image processing functions: choose zones, partial zoom, Enhance image, measure length and area, turn over, negative image, set the cursor, image Comments, pseudo color, stretch images, and adjust gray scale

Specialized case management system, convenient to save files, query, retrieve, add, modify, delete, backup

Edit the content and image of the report freely, can generate the report according to the templates or add contents by yourself

Hardware system: high quality computer, INTEL high speed CPU, ≥1 G memory, ≥160G disk, ≥19 inch LCD monitor, USB video acquisition card, photo-grade color inkjet printer

Means of image acquisition: foot switch, mouse, keyboard
