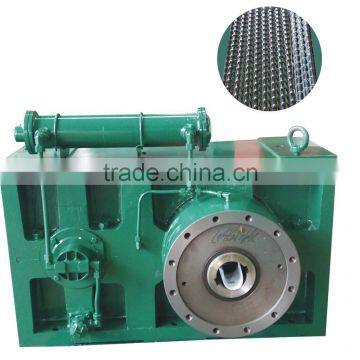

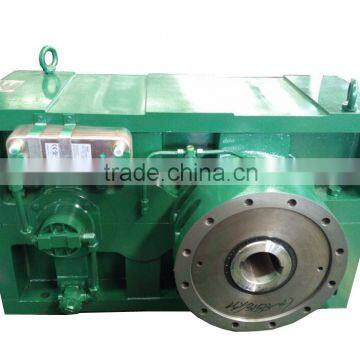

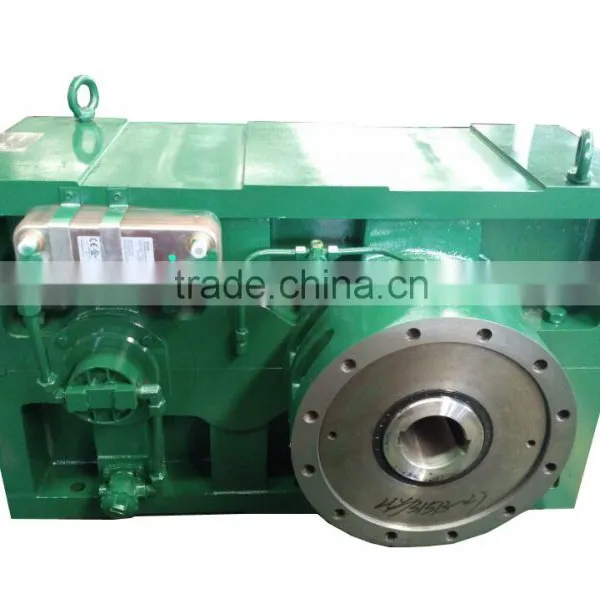

Help CenterMade in China Guomao ZLYJ Gearbox for Film Blowing Machine
Related Products
-
China Guomao ZLYJ Single Screw Rod Plastic Extruder Speed GearboxUS$ 100 - 10,000MOQ: 1 Set -
China Guo Mao ZLYJ Film Blowing Machine Extruder Gear ReducerUS$ 100 - 1,000MOQ: 1 Set
-
GUOMAO Hot Sale ZLYJ Series Type Small Shinko Motor Reducer Gearbox With High QualityUS$ 100 - 1,000MOQ: 1 Set
-
GUOMAO Hot Sale ZLYJ Series Type Small Motor With Reducer With High QualityUS$ 100 - 1,000MOQ: 1 Set
-
GUOMAO Hot Sale ZLYJ Series Type Slow Speed Motor With High QualityUS$ 100 - 1,000MOQ: 1 Set
About "GUOMAO GROUP" COMPANY
Company name: Guomao Reducer Group Co.,Ltd
Address: No.111, Xihu Road, Wujin High Tech Zone, Changzhou city, Jiangsu Province, China
Established year: 1993
Quqantity of employees: more than 2000 employees
Factory square: 360000 square meters
Annual output: over 1.5 billion RMB
Annual production capability: 600,000 sets
Main products: B, X serial cycloidal reducer, ZDY, ZLY, ZSY, ZFY serial cylindrical gear reducer, ZLYJ serial gear reducer specially for plastic extruding machine, DCY serial bevel and cylindrical reducer, GR serial helical geared motor, GS serial helical worm geared motor, GK serial helical bevel geared motor, GF serial parallel helical geared motor, PV serial general gear box, MBY edge-driven geared reducer, GX series modular planetray gear units.
Qualifications of quality: CE, ISO9001:2008, CCC
ZLYJ Serials introduction:
ZLYJ reducer is a kind of high-precision rigid gear assembly with thrust block specially designed for the plastic/rubber screw extruder. According to the standard of JB/T8853-2001, The plastic extruding reducer is derivatire product. It has original features and also can support large axial thrust. It's specially suitable for screw driving force of plastic extruding machine. The product adopt the high-strength low-carbon alloy steel for gears and shafts, with tooth flank carbureted, quenched and ground, to meet the gear mounted at the front end of the hollow output shaft to bear theaxial thrust from the screw during working.
Characteristics:
1. The high-strength low-carbon alloy steel for gears and shafts, with tooth flank carbureted, quenched and ground, to meet the gear precision Class 6, GB 10095-88 and hardness of tooth flank HRC54-62.
2. A huge thrust bearing is mounted at the front end of the hollow output shaft to bear the axial thrust from the screw during working.
3. The complete machine is featured with compact structure, high beaing capacity, stable transmisssion, low noise, high efficiency, etc.
| Allowable axial thrust of reducer | |||||||
| Reducer | ZLYJ112 | ZLYJ133 | ZLYJ146 | ZLYJ173 | ZLYJ200 | ZLYJ225 | ZLYJ250 |
| Thrust KN | 41 | 54 | 60 | 153 | 187 | 250 | 268 |
| Reducer | ZLYJ280 | ZLYJ315 | ZLYJ330 | ZLYJ375 | ZLYJ420 | ZLYJ450 | |
| Thrust KN | 356 | 403 | 448 | 495 | 545 | 590 | |

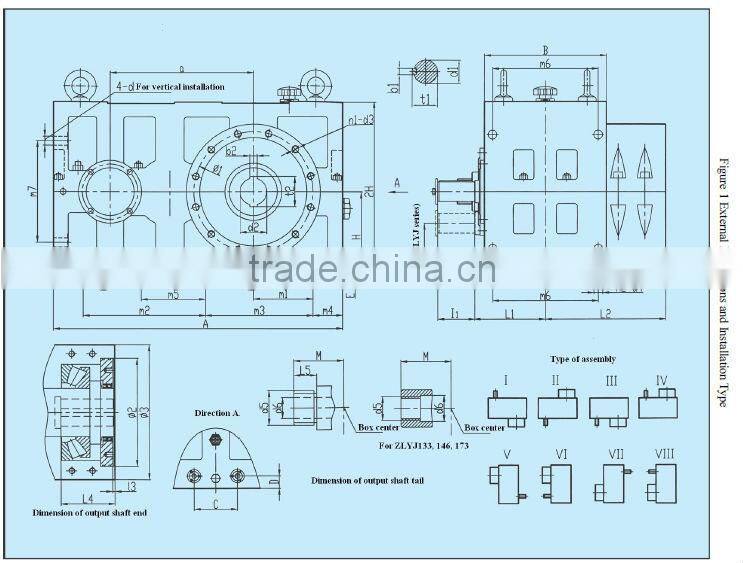

Dimension and type of assembly:
Horizontal mounting position:
Vertical mounting position:
Our workshop:
Manufacturing management of lean production workshop. We ownded the first GPS lean production assembly line for cycloid owned by Guomao among peers.
Advanced Equipments:
Guomao Group possesses a lot of domestic-made and imported advanced equipment and testing instruments, including Niles contour gear grinding machine imported from German. OKUMA horizontal machining center imported from Japan. Gear inspection and test center and three-coordinates measuring machine. Guomao Group, having state-of-the-art equipment, advanced management conception, perfect quality management system and high quality staff member team, can meet the needs of customers.
Certificates:

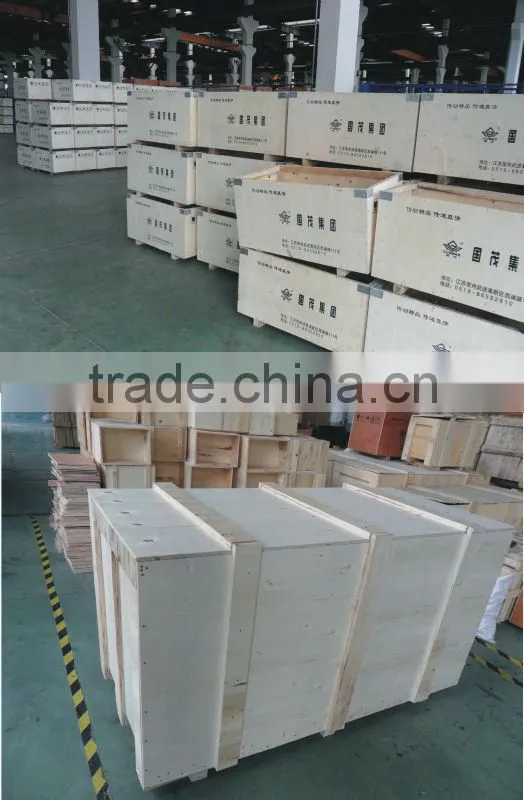

Package:
There are two packages. One is wooden case, another is plywood case.
Our Services
GUOMAO Group, having state-of-the-artequipment, advanced management conception, perfect quality management system and high qualitystaff member team as well as network service with over 90branches, can meet the needs of customers.
1. We could supply the samples if you have a good quantity.
2. We undertake the problems due to quality.
3. We supply detail answers about technical questions.
4. Different kinds of payment are available for you.
5. We are the manufacturer so we could supply the products as soon as possible.
6. At the instance of our dear customer, we can do some nonstandard design.
Welcome to contact us for more detail information.
Please leave a message or inquiry.
We will reply you at any time.
Welcome standard-product or OEM inquiry.
Skype: gmreducer01
QQ: 2747944350
Mob: 0086 13775031966
