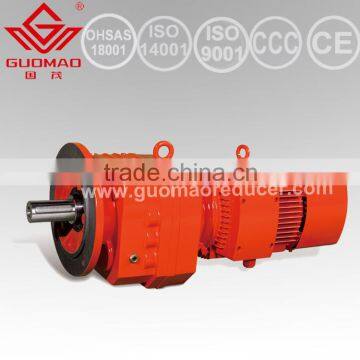

Help CenterGUOMAO GRgeared Motors for Animal Feeding Plant
Related Products
-
GUOMAO REDUCER GROUP R Series Inline Helical Gear MotorUS$ 10 - 1,000MOQ: 1 Set -
High Quality GUOMAO REDUCER GROUP R Series Inline Helical Gear Motor For Textile IndustryUS$ 10 - 1,000MOQ: 1 Set
-
GUOMAO REDUCER GROUP R Series Inline Helical Gear Motor For EscalatorUS$ 10 - 1,000MOQ: 1 Set
-
GUOMAO REDUCER GROUP R Series Inline Helical Gear Motor For Freight ElevatorUS$ 10 - 1,000MOQ: 1 Set
-
GUOMAO REDUCER GROUP R Series Inline Helical Gear Motor For Bucket ElevatorUS$ 10 - 1,000MOQ: 1 Set

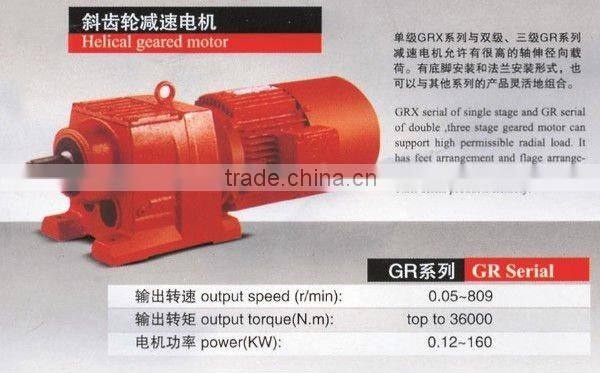

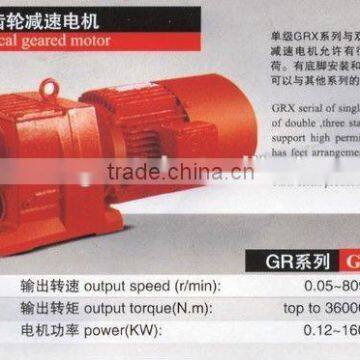

GR series Helical geared motor mechanical reducer
About "GUOMAO"Enterprise GROUP
Company name: Guomao reducer group co.,ltd
Address: No. 111,Xihu road ,high tech zone.Wujin City,Jiangsu province,China
Founding year: 1993
Quantity of employees: 2000 employees
Factory square: 360000square meters
Annual output: over 1.5 billion RMB
Annual production capability: 600,000sets
Main products: B,X serial cycloidal reducer,ZDY,ZLY,ZSY serial cylindrical gear reducer,ZLYJ serial gear reducer specially for plastic extruding machine,DCY bevel and cylindrical reducer,GR serial helical geared motor ,GS serial helical worm geared motor,GK serial helical bevel geared motor ,GF serial parallel helical geared motor,PVserial general gear box,MBY edge-driven geared reducer.
Qualifications of quatity:CE,ISO9001:2008,CCC

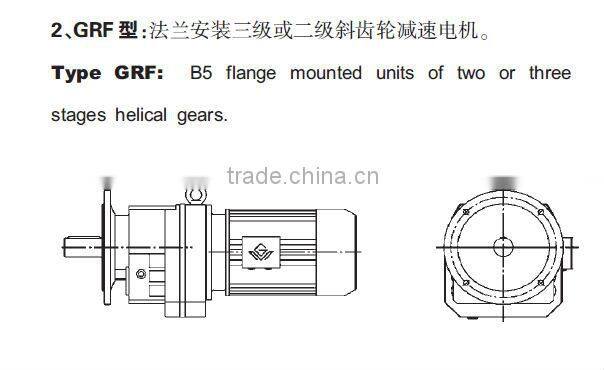

ABOUT GRF SERIES OF "GUOMAO"
INTRODUCTION

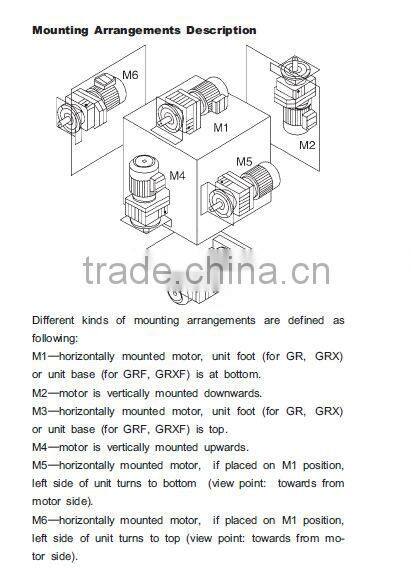

Mounting Arrangements
Different kinds of mounting arrangements are defined as following:
M1 |
orizontally mounted motor,unit foot(forGR,GRX)or unit base (for GRF,GRXF) is at bottom. |
M2 |
motor is vertically mounted downwards. |
M3 |
horizontally mounted motor, unit foot(forGR,GRX)or unit base (for GRF,GRXF) is top. |
M4 |
motor is vertically mounted upwards. |
M5 |
horizontally mounted motor,if placed on M1 position,left side of unit turns to bottom (view point:towards from motor side). |
M6 |
horizontally mounted motor,if placed on M1 position,left side of unit turns to top (view point:towards from motor side). |
Features of Products
1.Highly Standard Modular Designed:The products are easily connected with and driven by different types of motors or other kinds of input power.The same type geared motor can be adapted to optioned powers of motors.It is therefore easy to realize different solutions for varied requirements.
2.Ratio:Featured many closely divided ratios and wide range of them.Very big final rations can be obtained through combined unites to reach extremely low output speeds.
3.Mounting Arrangement:No strict limitation to the mounting arrangement.
4.High Strength,Compact Dimension:Housings are made of high strength cast iron.Gears and shaft gears are finished with gas carburising process and precise grouding to sequeritially get high loading capacity of percertain volume.
5. Long Service Life: Under the condition of accurately selecting type size and the normal maintenance and use, main components (expect those easily-disabled parts) can last as long as up to more than 25,000 hours. Easily-disabled parts include lubricating oil, oil seals, and bearings.
6. Low Noise: All key components are finished by precisely machining, accurate assembly, and finally tested, and therefore, fairly low noise is reached.
7. High Efficiency: The efficiency of gear unit can reach 95%, The efficiency of worm gear unit can reach 89%.
8. Large radial loading ability.
9. Axial load ability of up to 5% of radial load.

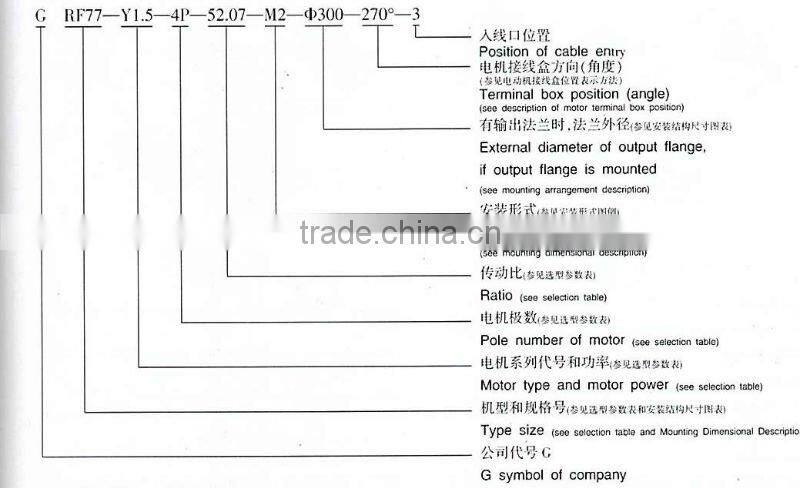

Indicate the method
Mounting Arrangement
QUALITY CERTIFICATES AND REWARDS SHOWS(JUST A PART)

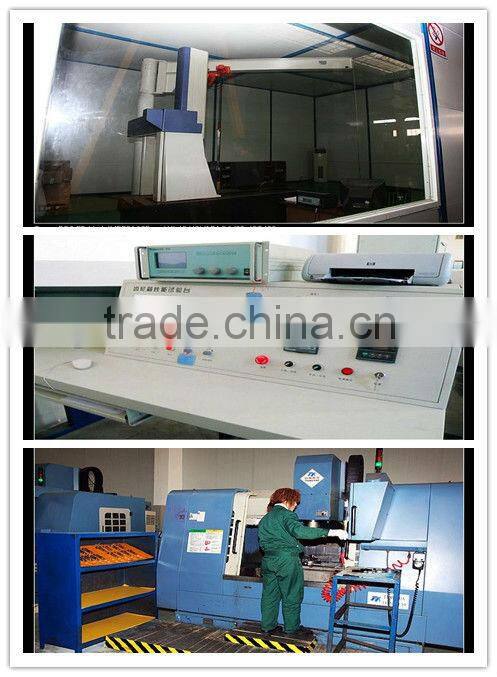

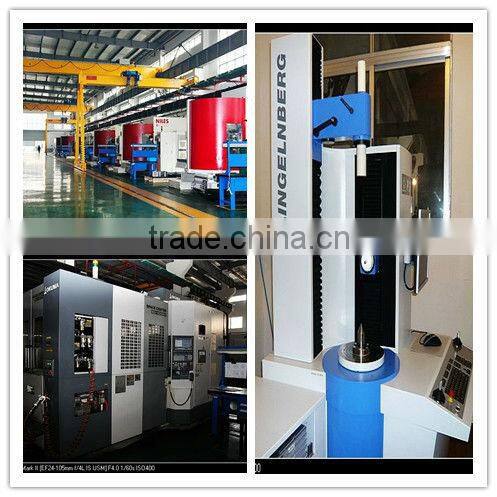

ABOUT OUR EQUIPMENTS ADVANCED
| Machine Name | Brand & Model No. | Quantity | Number of Year(s) Used | Condition |
|---|---|---|---|---|
| NC Worm Abrasive Gear Grinding Machine | YK7236, YK7232 | 15 | 6.0 | Acceptable |
| Generated Grinding Machine | Y7132A, Y7163 | 11 | 2.0 | Acceptable |
| Horizontal CNC | OKUMA & MA-60HB-R | 14 | 6.0 | Acceptable |
| Gear Grinding Machine | NILES& ZP20, ZE1200 | 15 | 2.0 | Acceptable |
| NC Lathe | SK370L-500 | 6 | 5.0 | Acceptable |
| Vertical CNC | TOM1580, TOM1850 | 20 | 5.0 | Acceptable |
| Machine Name | Brand & Model No. | Quantity | Number of Year(s) Used | Condition |
|---|---|---|---|---|
| Gear Measurement Instrument | JD45 | 1 | 5.0 | Acceptable |
| Gear Inspection Center | 3008B | 3 | 5.0 | Acceptable |
| Gear Inspection Instrument | P26 | 1 | 4.0 | Acceptable |
| 3D Measurement | C9108 | 1 | 5.0 | Acceptable |
| Mode Testing Table | CC-2000, CC-10000 | 2 | 6.0 | Acceptable |
| Rockwell Hardometer | HR-150A | 3 | 2.0 | Acceptable |
| Richter Hardometer | HLN-11A | 4 | 2.0 | Acceptable |
| Sound Meter | TES-1351 | 5 | 1.0 | Acceptable |
| IR Temperature Tester | No Information | 4 | 1.0 | Acceptable |
| Ultrasonic Crack Detector | TUD210 | 2 | 3.0 | Acceptable |
About package of "GUOMAO"

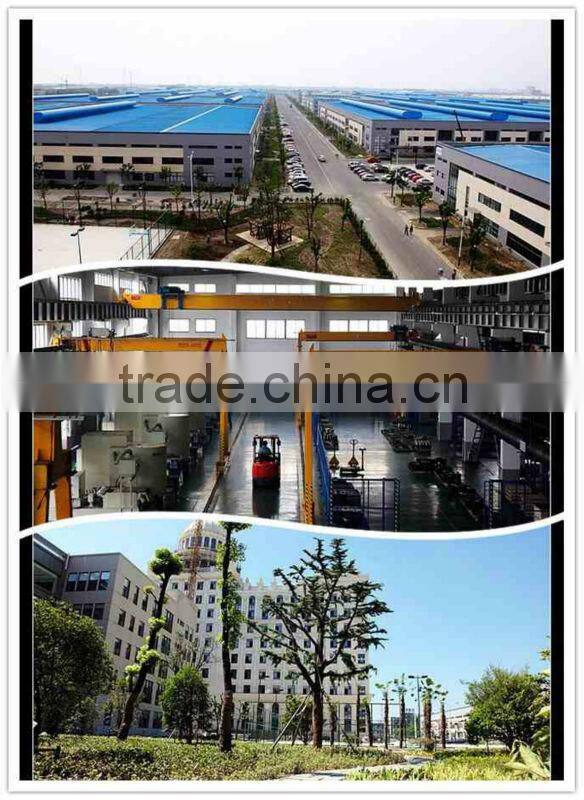

ABOUT OUR FACTORY
Welcome to contact us for more detail information and inquiry.
Please leave a message or inquiry below.
We will reply within 24 hours*7days*12monthes. Thanks for your cooperation !
Welcome standard-product inquiry, Welcome OEM inquiry.
