Specifications
LM-80 test report approved
50000hours lifespan
high lumen,low voltage
CCT:28000-6500K 0.2W 60mA
Manufacturer 150mA 50-60lm 0.5W LM-80 2835SMD led chip
Specifications:
LM-80 test report approved
50000hours lifespan
high lumen,low voltage
CCT:28000-6500K available
| 2835SMD 150mA | LD-2835PWD00 | 2835 Pure White | 5500-6500K | 50-65LM |
DC:3.0-3.6V 150mA |
CRI:70,80 |
| LD-2835WWD00 | 2835 Warm White | 2800-3500K | 50-65LM |
DC:3.0-3.6V 150mA |
||
| LD-2835NWD00 | 2835 Natural White | 4000-4500K | 50-65LM |
DC:3.0-3.6V 150mA |
Features:
Silvering of bracket>100u,the reflector surface is clean and smooth with uniform brightness
Average luminous decay<2% in 3000hour
Good consistency of brightness wavelength,low viewing angle discrete
No chromaticity distortion in 120 degree viewing angle
Operating Temperature Range: -30deg~85deg
Storage Temperature Range: -40deg~100deg
Packing:
4000pcs/Anti Static Bag
30bags/carton
8KG/Carton

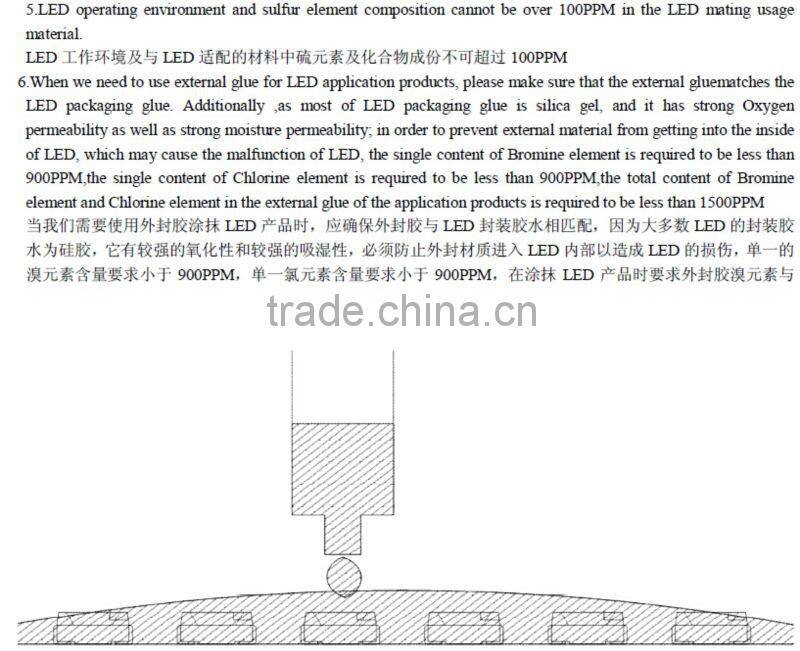

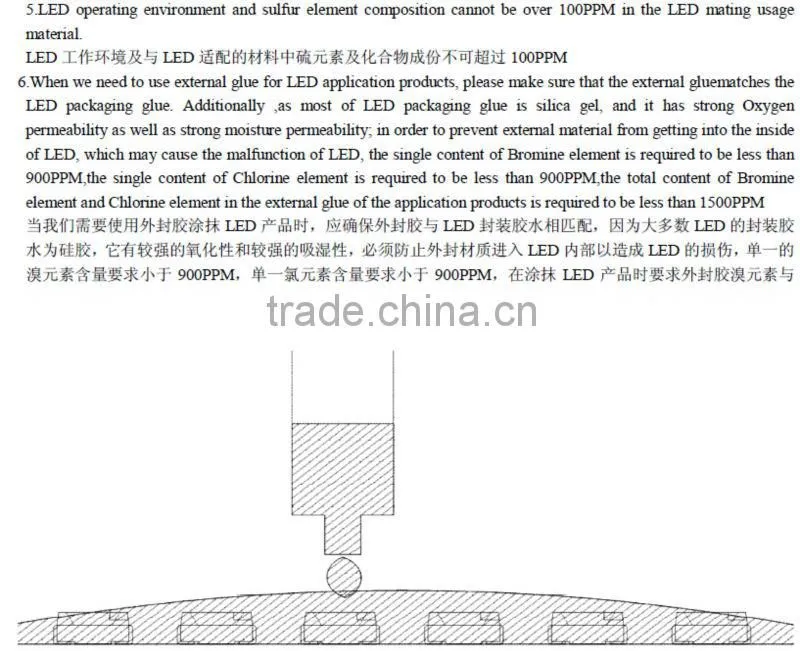

Cautions:
Application:
General lighting ,urban lighting and automotive lighting,etc
Payment Term: T/T 100% in advance,or T/T 30% deposit after order confirmed ,the balance after goods ready before shipping Western Union is for small order .
Lead Time:Normally 5-7days after deposit received
Sample policy : Samples are availble for each type.
Our Service :
1.For all your inquires about us or our product ,We will reply you indetails with 24hours
2.Three years warranty
3.After sale service : During the warranty time , all the problems caused by our products quality ,we will 100% responsible for you ,remake the products for you freely togerther with next order
Test Report :
LM-80 approved
Shipping:
