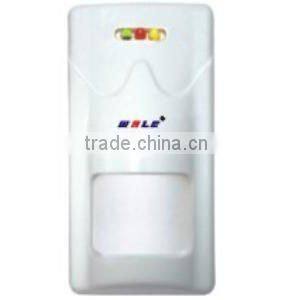

Wide Angle Dual-tech Passive Infrared Motion Detector

WL-803

 Wide angle Dual-tech passive infrared motion detector

Function:

1. Dual passive infrared and mv detector (WL-803 don't have mv detect function)
2. Have microprocessor controller
3. Microwave range is adjustable
4. Low power consumption,real temperature compensation
5. Dual polarity pulse count is adjustable
6. Anti white light interference
7. Has under view, no blind area
8. Anti RF interference(30V/m-1GHz)
9. Special anti fluorescent interference
10. Environment memory and C-output model

Tech Parameter :

 Model:  WL-803

 Detection range:  12 * 12m

 Operating voltage / current: 9V-16V DC

 Installation / wall-mounted height:  1.8-2.5m

 Operating temperature: -10 °C ~ +50 °C

 Working humidity:  5% -95% (relative humidity)

 Anti-electromagnetic interference:  > 30V / M (10GHz-1GHz)

 Interfere with anti-white:  > 9000LUX

 Anti-pet :  10Kg

 Overall dimensions: 127 * 64 * 41mm
