Factory API 3 Way Valve 1.6MPa,Ball Valve
- Any port in China
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Factory API Electric Ball Valve
-
Gas Field Fully Welded 4 Inch Pipeline Ball Valve
-
Gas Pipeline Trunnion Mounted Stainless Steel Ball Valve
-
China Manufactury Cast Steel 3 Pieces Motorized Ball Valve in Gas Pipeliine
-
Factory High Quality API CF8M 3 Way Ball Valve
-
Natural Gas Pipeline Flange End Floating Electrc Ball Valve
Product Details
| Standard or Nonstandard | Standard | Structure | Gate | |
| Pressure | Other, According to your demand | Power | Manual | |
| Material | Other, According to your demand | Temperature of Media | High Temperature | |
| Media | Other, Paper making,pharmacy,coloring chemical | Port Size | 50-250 | |
| Place of Origin | Shaanxi, China | Model Number | Q45F-16C | |
| Brand Name | SHBF | Application | General |
Product Description

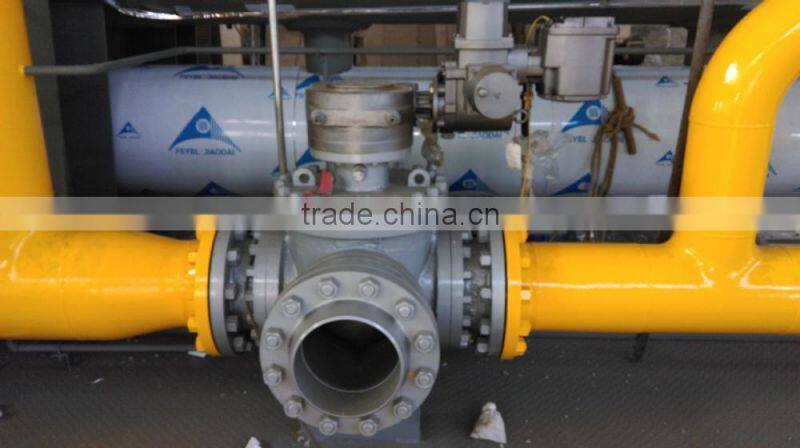

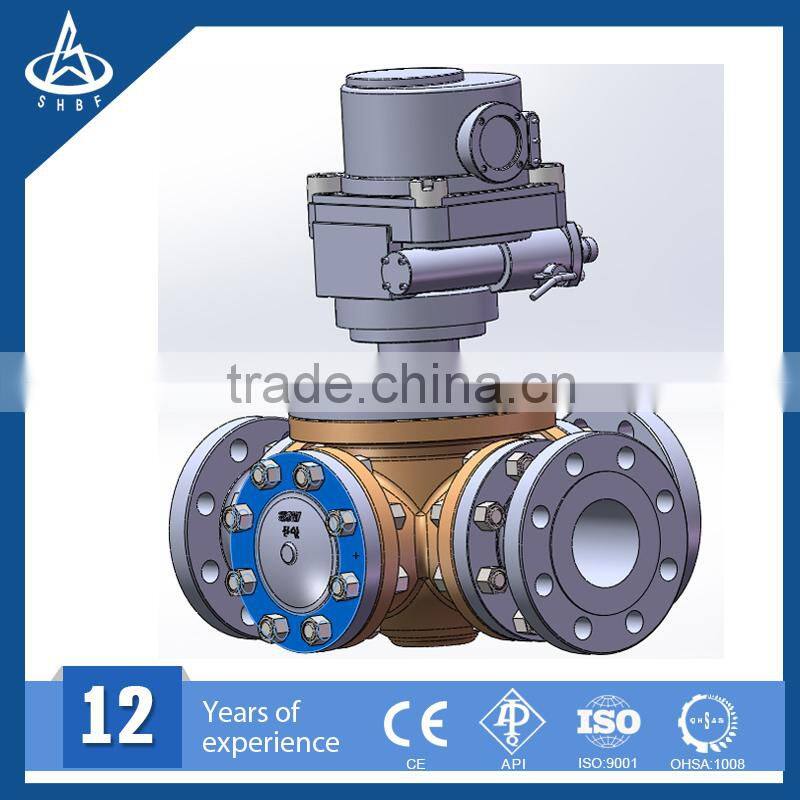

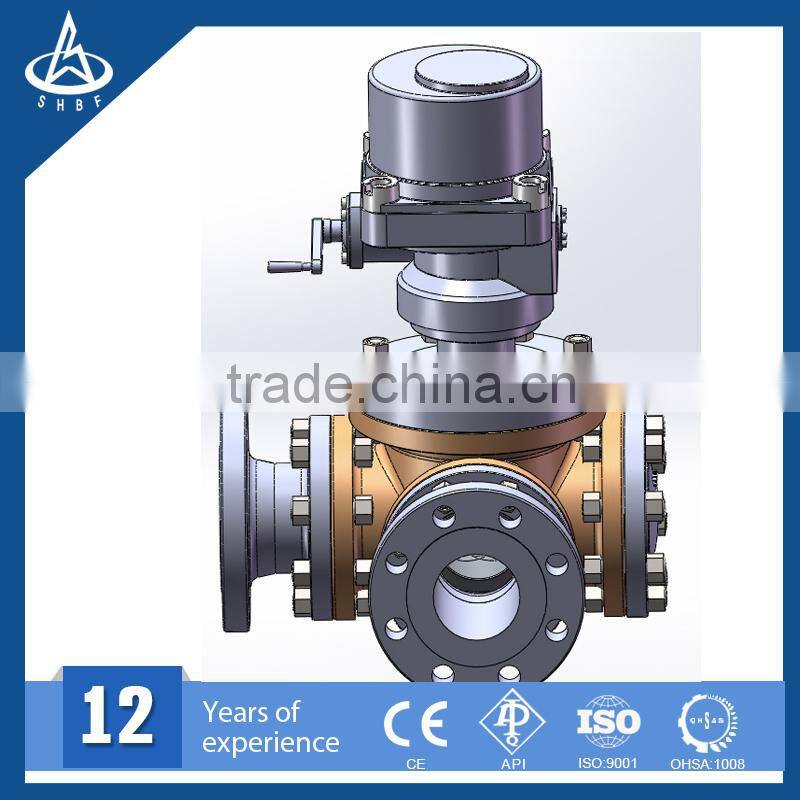

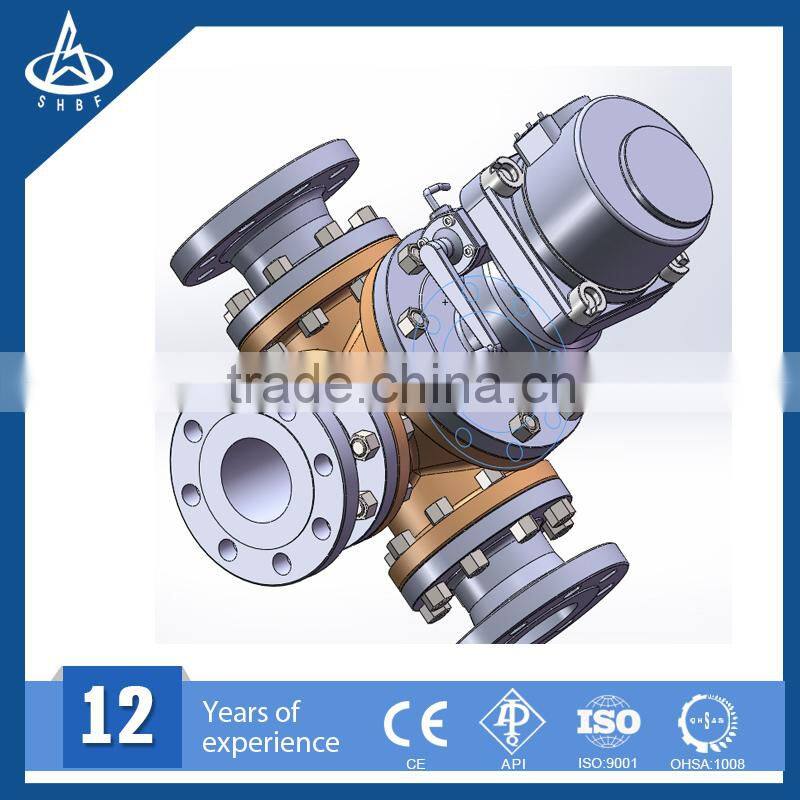

T type three way ball valve
T type three way ball valve could make three orthogonal pipe mutual link together and cut off the third passage, realize the shunt and confluence.
Product Features:
The three way ball valve adopts integration structure, four face valve seat sealing type, less flanged connecting, high reliable, and lightweight of the design.
The three ball cone have T type and L type, It has long service life, big flow capacity, small resistance.
Ball valve has two types of single-action, double-acting. The characteristic of single-action is When the power source fails, ball valve in the control system requirements for State.
Technical requirement:
1.Design standard: API6D & ASME B16.34;
2.The structure length need according to customer’s request;
3.Flange connect standard: ASMEB16.5;
4.Test and inspections: API598;
5.Pressure and temperature grade: ANSI B 16.34;
6. Appearance quality grade: MSS-SP-55;
7.Sign: MSS-SP-25;
8.Clean the ponding after testing, rub-up the lumen, Apply antirust oil, and the size with cap to cover three end, to prevent the Spoils things.
Performance specification:
1. Nominal pressure: 300LB;
2. Shell Test pressure: 7.5 Mpa;
3. High pressure sea test: 5.5 Mpa;
4. Hermetic seal test, 0.6MPA;
5. Suitable medium: Water ,Non-acid gas, oil etc;
6. Temperature: -29~ 150℃;
7. Design torque: ≤3100NM
Main performance parameters | |||||||
Model | Q45F-16C | Q45F-25C | Q45F-40C | Q45F-16P | Q45F-25P | Q45F-40P | |
Working pressure(MPa) | 1.6 | 2.5 | 4 | 1.6 | 2.5 | 4 | |
Applicable temperature (℃) | ≤150 | ||||||
Applicable medium | Water,Steam,Oil etc. | Weak corrosive medium | |||||
Material | Body | Carbon steel casting | Chromium nickel titanium stainless steel castings | ||||
Ball ,stem | 2Cr13 | Chromium nickel titanium stainless steel castings | |||||
Sealing Ring | Reinforced PTFE | ||||||
Packing | PTEE | ||||||
Main parts material
Material name | Material | |
GB | ASTM | |
Body,Bonnet | WCB | A216-WCB |
Sealing ring | PTFE, Counterpoint polyphenyl | PTFE, Counterpoint polyphenyl |
Ball | 1Cr18Ni9Ti | SS 304 |
Seat,steam | 2Cr13 | A246-416 |
Stud | 35CrMoA | A193-B7 |
Please send me your requirment, then we could offer you the suitable style and competitive price.
