Industrial Magnet Application and Ferrite Magnet Composite ferrite
We are a leading manufacturer which specializes in magnets in China.
Magnets include all kinds of Ferrite magnets, Neodymium (NdFeB) magnets, Flexible Rubber Magnets and AlNuCi Magnets, which are widely used in the areas of automobiles, electronics an telecommunication.
Specifications
ferrite magnets
1. Best price
2. Customized
3. Delivery timely
4. Excellent quality
hot sale good quality hard ferrite arc magnets
A variety of specifications
Best price
Customized
Delivery timely
Excellent Quality
Features:
A low cost alternative to other magnetic materials, offers relatively high operating temperatures and good resistance to corrosion & demagnetization. However, it has lower energy levels (Br) and is brittle in nature.
Applications:
Dc motors, Louderspeaks, Magnetic Separators, Automotive Sensors, Educations, etc.
Magnetic Properties of Ferrite Magnet
| Grade | Br | HcB | Hcj | (BH)max | TK(Br)%/K | TK(Hcj)%/K | Max Temp | MMPA | |||||
| KGs | mT | kOe | Ka/m | kOe | Ka/m | MGOe | Kj/m³ | Equivalents | |||||
| Y10T | 2.00-2.18 | 200-218 | 1.57-1.82 | 125-145 | 2.64-3.14 | 210-250 | 0.8-1.0 | 6.5-8.0 | -0.2 | 0.3 | 250 | C1 | |
| Y25 | 3.60-3.70 | 360-370 | 1.70-1.88 | 135-150 | 1.76-2.14 | 140-170 | 2.8-3.2 | 22.5-25.3 | -0.2 | 0.3 | 250 | ||
| Y30 | 3.80-3.90 | 380-390 | 2.40-2.64 | 191-210 | 2.50-2.51 | 199-220 | 3.4-3.7 | 27.0-30.0 | -0.2 | 0.3 | 250 | ||
| Y33 | 4.00-4.10 | 400-410 | 2.20-2.45 | 175-195 | 2.26-2.51 | 180-200 | 3.8-4.0 | 30.0-31.5 | -0.2 | 0.3 | 250 | C5 | |
| Y35 | 4.10-4.20 | 410-420 | 2.77-2.95 | 220-235 | 2.83-3.01 | 225-240 | 4.0-4.2 | 31.5-33.0 | -0.2 | 0.3 | 250 | ||
| Y30BH | 3.80-3.90 | 380-390 | 2.80-2.95 | 223-235 | 2.90-3.08 | 231-245 | 3.4-3.7 | 27.0-30.0 | -0.2 | 0.3 | 250 | C8 | |
| Y33BH | 4.00-4.10 | 400-410 | 3.62-3.77 | 288-300 | 3.51-3.60 | 280-287 | 3.8-4.0 | 30.4-31.5 | -0.2 | 0.3 | 250 | ||
| Items per Carton: | 20 Kilograms / Carton |
|---|---|
| Package Measurements: | 35X35X25 CM |
| Gross Weight: | 25.00 KG |
| Package Type: | Packing of ferrite magnets: Bulk package or according to your requirements |

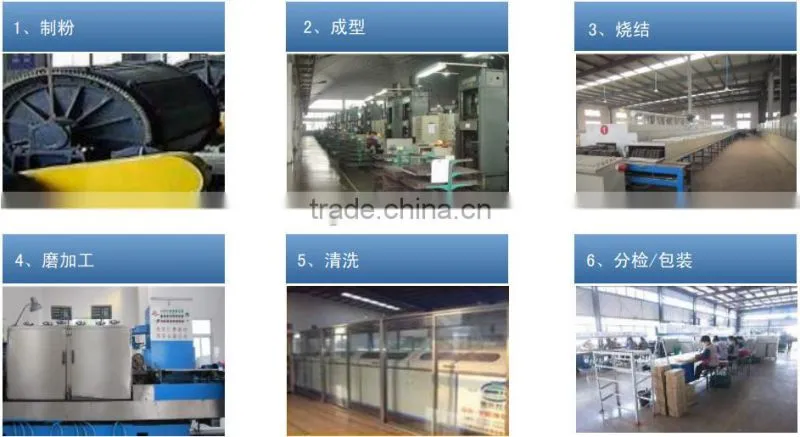

Production flow chart
