Help CenterDischarge Valve for Air Compressor
Related Products
Detailed Product Description
pulse jet valves f
working pressure 0.2/0.6mpa
DN25 to 40mm
world top class diaphragm
suit for air protection enviroment

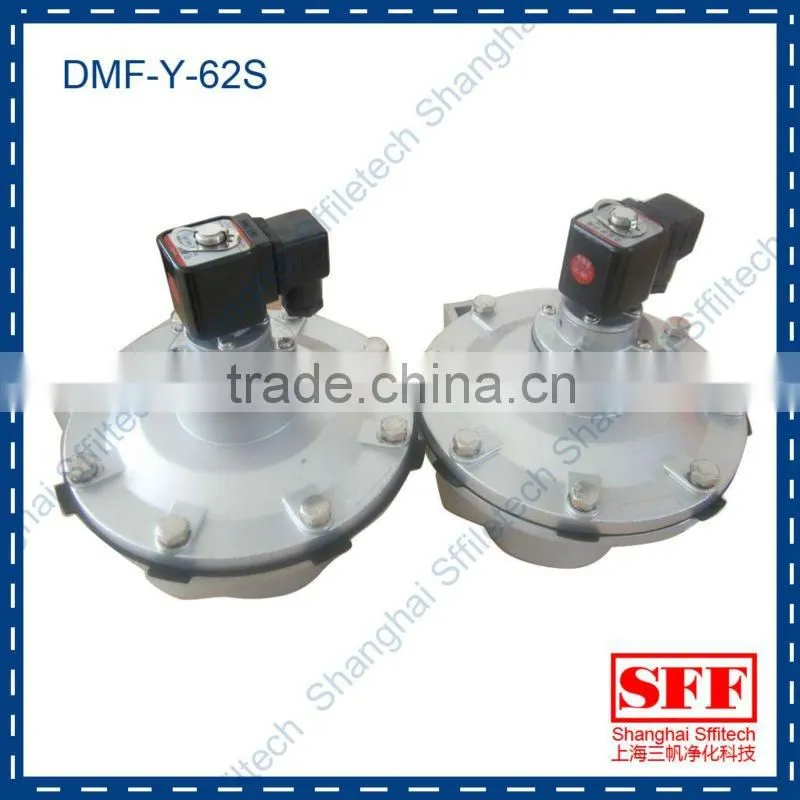

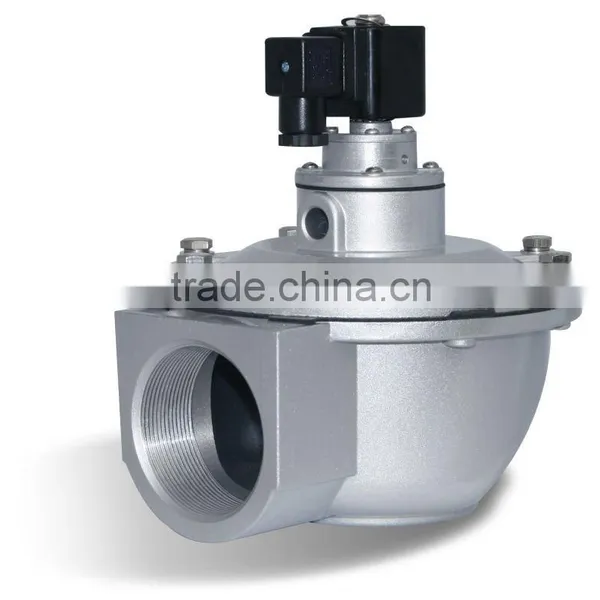

pulse jet valves/ pneumatic pulse valve solenoid pulse valve
suit for air protection enviroment
1. the concealed structure is adopted for the DCF-Y high pressure solenoid valve
2. it is directly installed on air distribution box , so it has better characteristics :low resistance ,less pressure ,the usage range of air source is expanded , and it is suitable in the site where the pressure of air source is lower .
3. we are the toppest and strongest manufacturer in china in this industry
technical parameters
Connection port |
1,1.5 |
DN(mm) |
25mm,40mm |
Material of valves body |
aluminum |
Working pressure |
0.2---0.6 Mpa (29Psi87Psi) |
Working medium |
Clean air |
voltage |
DC24V/AC220V/50Hz |
current |
0.8A(0.05A) |
Temprature |
110C80C(14F176F) |
The relative humidity of air |
No more than85% |
Diaphragm life |
1 million times (5 years) |
filter bag pulse jet valves suit for air protection enviroment
