| Standard or Nonstandard: Standard | Material: Alloy | Temperature of Media: High Temperature |
| Media: Gas | Port Size: 3'' | Place of Origin: Shanghai China (Mainland) |
| Model Number: DMF-ZM-25 | Brand Name: Sffiltech |
| Packaging Detail: | big carton |
| Delivery Detail: | within 7 days |

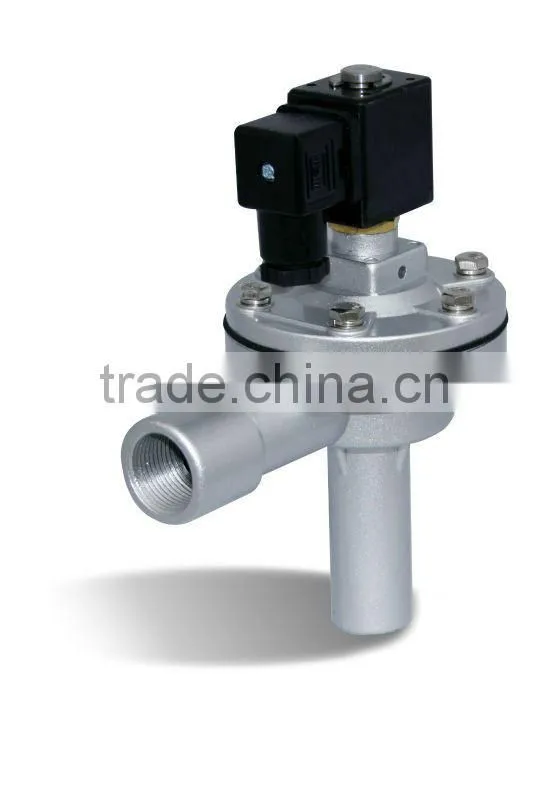

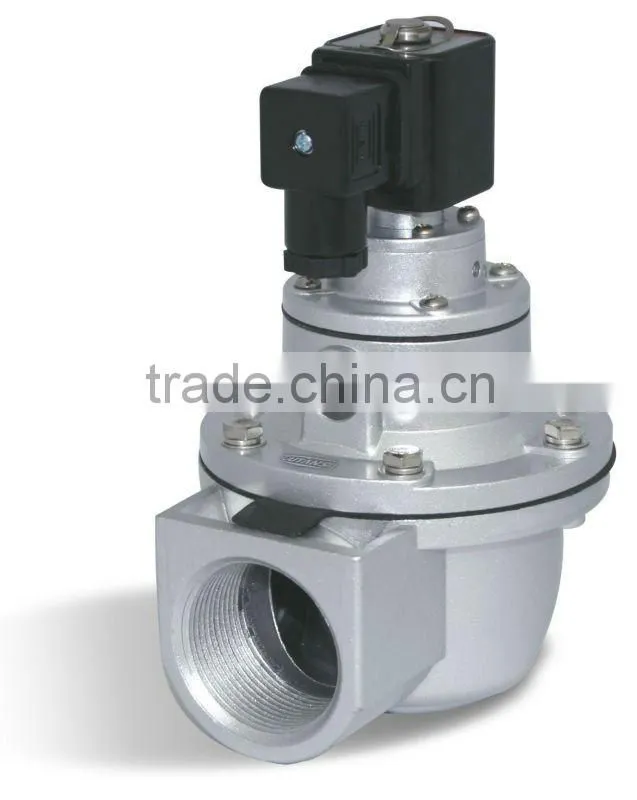

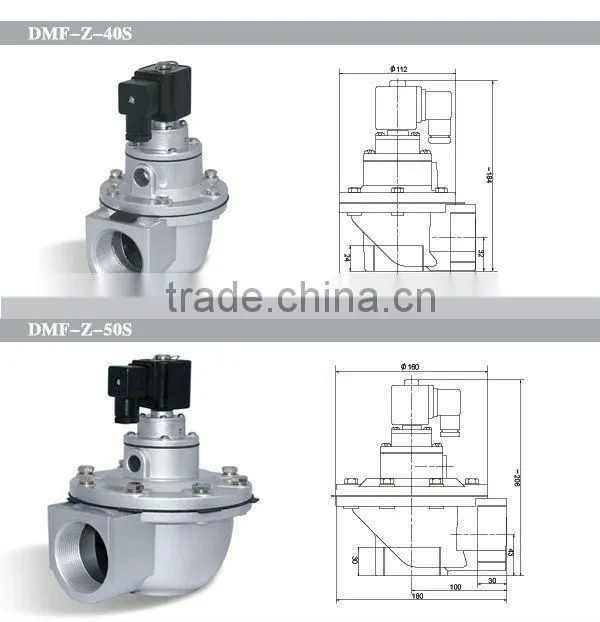

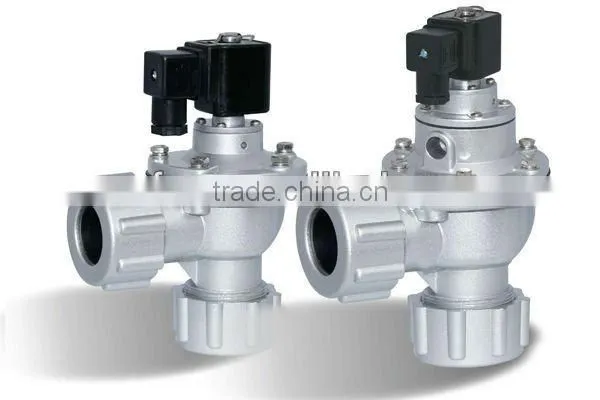

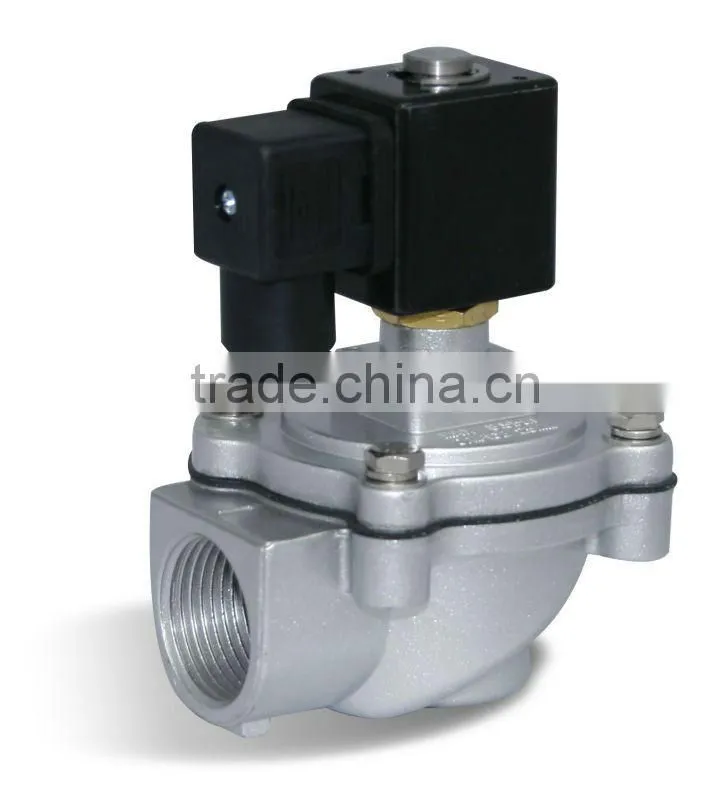

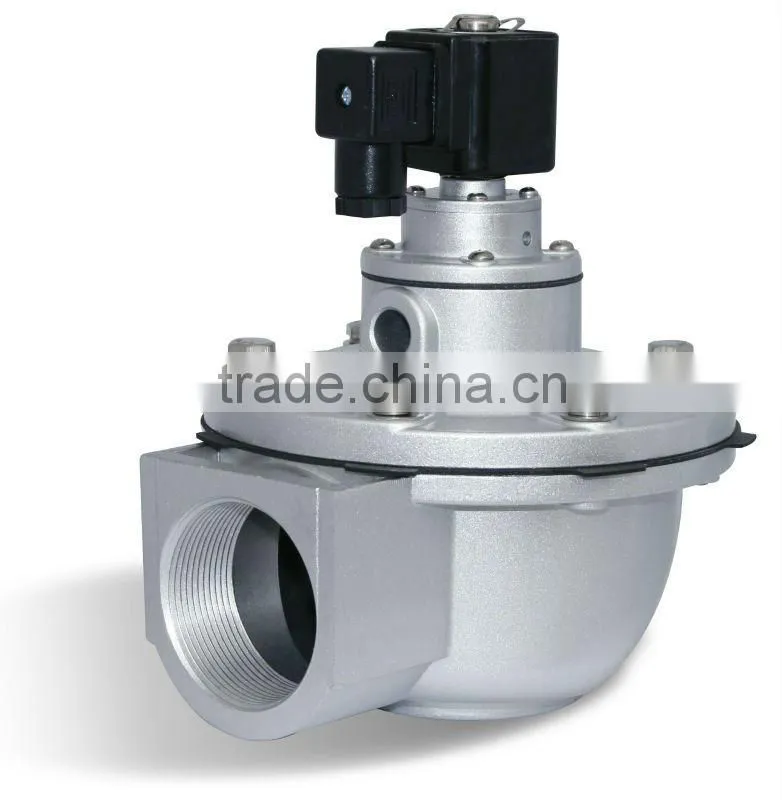

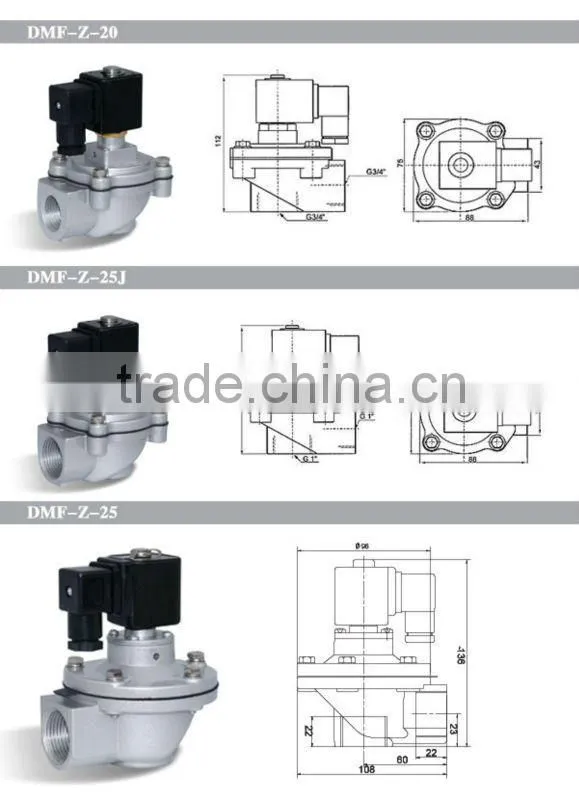

DMF-ZM series/ Right Angle(ZM)Electro-magnetic Pulse Valve

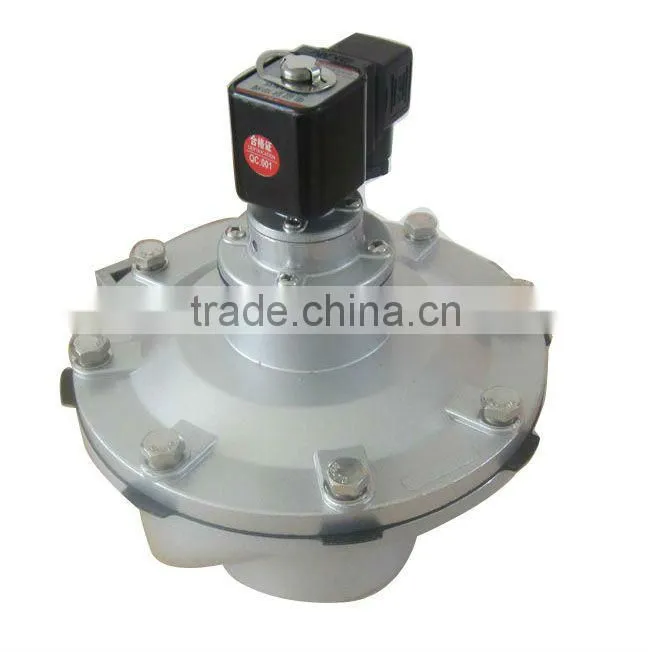

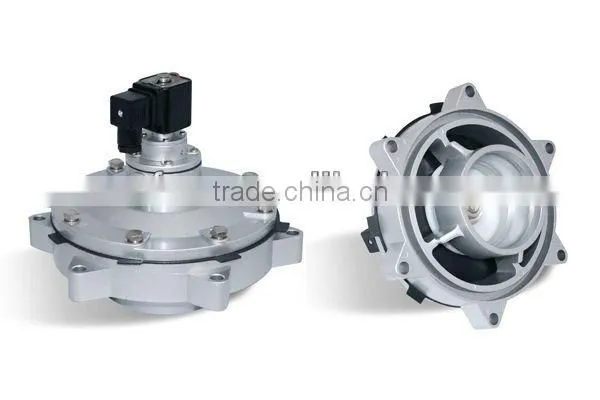

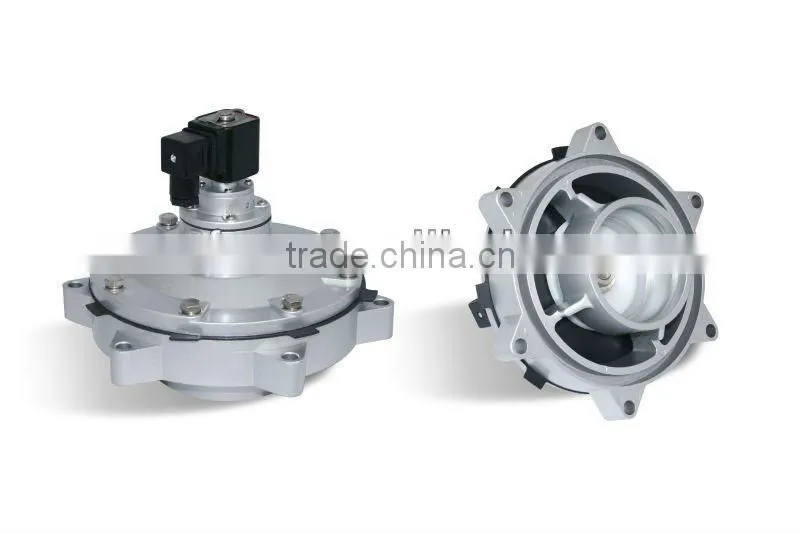

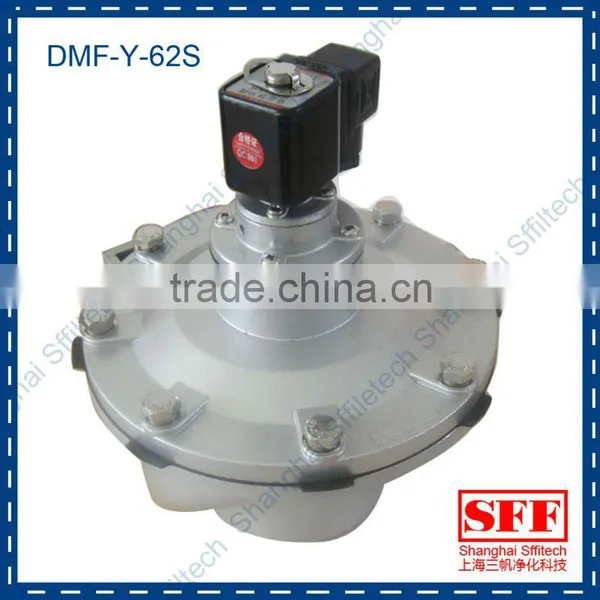

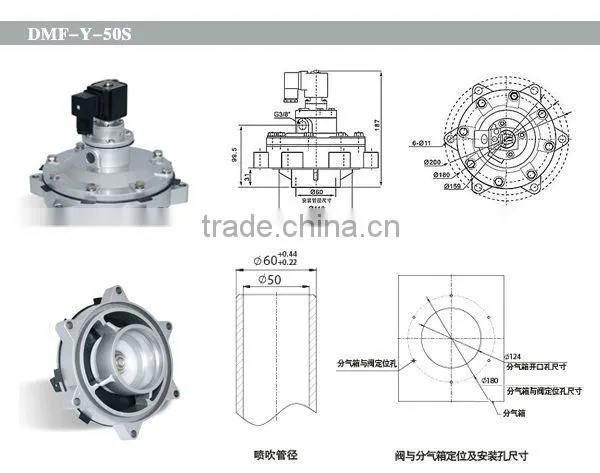

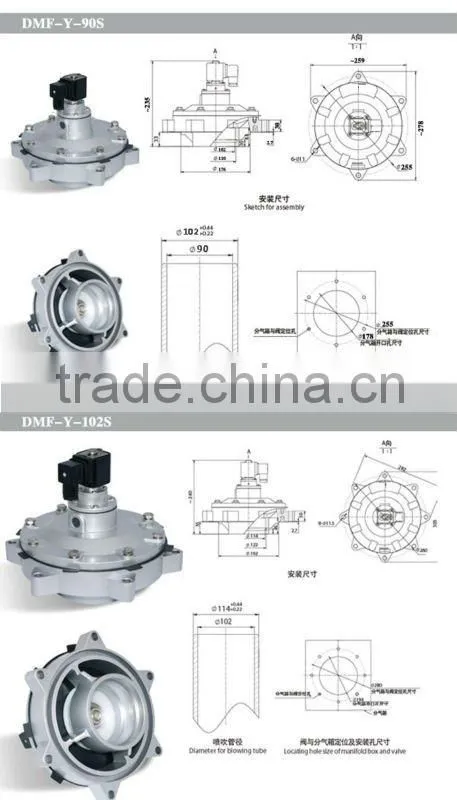

(DMF-Y)series Submerged Electro-magnetic Pulse Valve
DMF-Y electromagnetic pulse valve for submerged valve(also called embedded valve),it is installed on the points directly on the box, gas has better circulation characteristics.loss of pressure drop, suitable for low air pressure of work.
Type and Definition
DMF Electro-magnetic pulse valve
Y Embedded
X Diameter
S Double Diaphragms
X Temperature Level
TECHNICALI PARAMETERS
Working pressure 0.4MPa~0.6pa
Working Media Clean Air
Voltage DC24V AC110V AC220V
Voltage 0.8A 0.46A 0.23A
Working Enviroment: -25~55°C 55~180°C
Diaphragm life: 3 years
MATERICAL CONSTRUCTION
BODY ADC12 DIECAST ALUMINIUM
Armature:430FR Stainless Steel
Diaphragm Seals: Nitrile
Spring:321 Stainless Steel
Screws:302 Stainless Steel
