Detailed Product Description of short arm sweing machine / sewing machine for filter bag / filter bag sewing mahine:

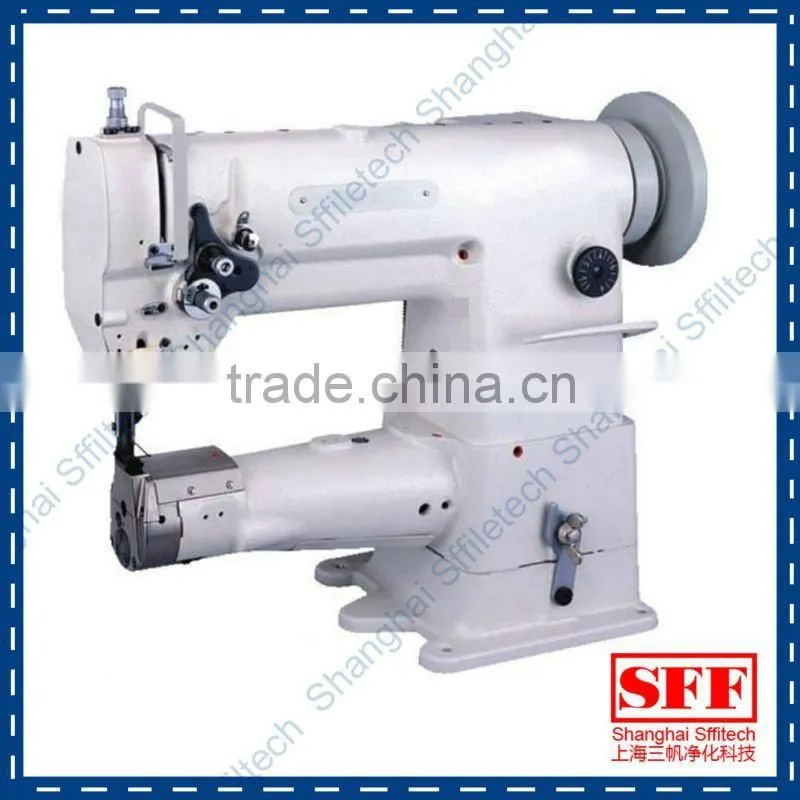

short arm sewing machine
1.suitable for top and bottom of filter bag
2.vertical large hook
3.double needles
4.CE
suitable for top and bottom of filter bag
vertical large hook improves the working efficiency

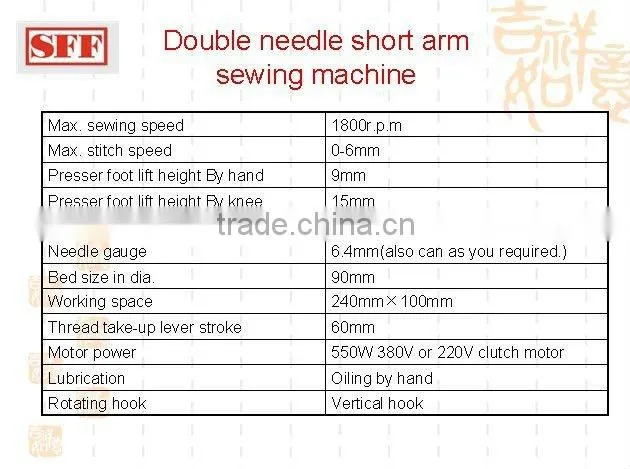

Max. sewing speed: 1800r.p.m
Max. stitch length: 0-6mm
Presser foot lift height: by hand 9mm
by knee 15mm
Needle bar stroke: 33.6mm
Needle gauge: 4.8mm,6.4m,7.9mm,9.5mm,12mm
Bed size in dia: 90mm
Working space: 240mm*100mm
Thread take-up lever stroke: 60mm
Motor power: 550W 380V or 220V clutch motor(may choose electronic control motor)
Rotating hook: Large vertical hook
Double needle short arm sewing machine with synchronized feeding of needle,feed dog and presser foot.
The machine can prevent the slippage of materiala and form neat stich .it is equipped with sliding thread take-up and vertical double ratating hook,which can from two paralleled lines of lockstich.
This machine may mating electronic control motor.So it can control the needle always on cloth or under the cloth when machine stop inthe sewing course. In that case, the staff do not need to ratate hand wheel frequently when stop the machine which makes the operation more convenient.

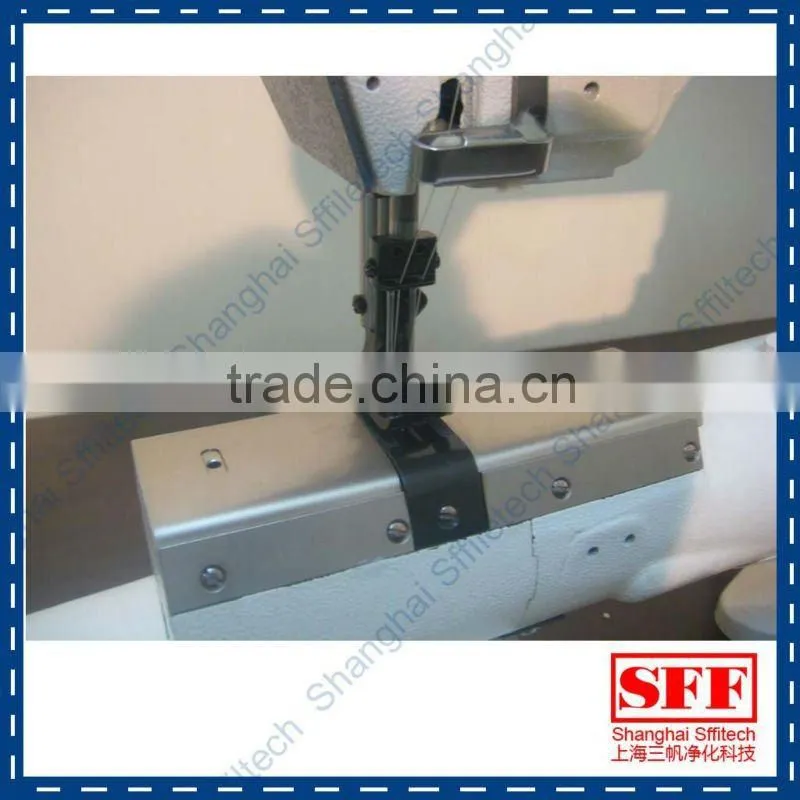

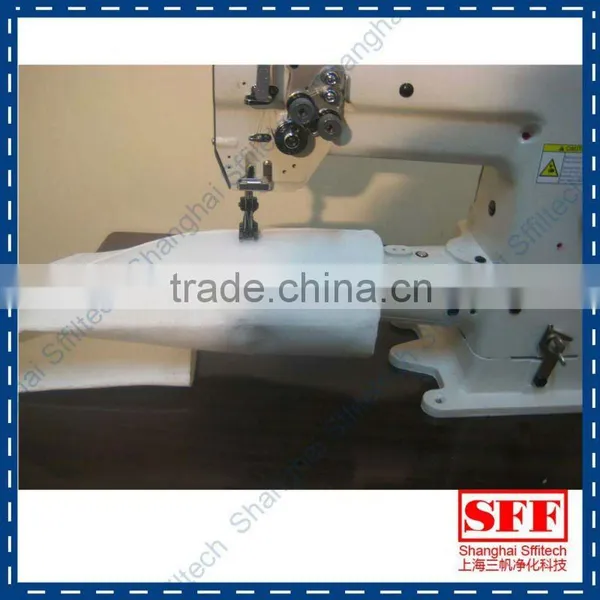

Detailed Pics:
WHY US:
For more details,pls kindly feel free to contact me,Jojo.
I'll be happy to give you best offer and excellent service.
