Product Name: Tvbtech 9mm endoscope camera with 1 meter flexible tube for car engine inspection camera
Product Model:8803AL

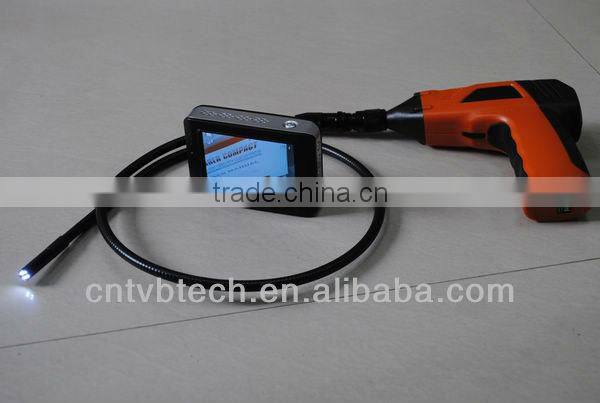

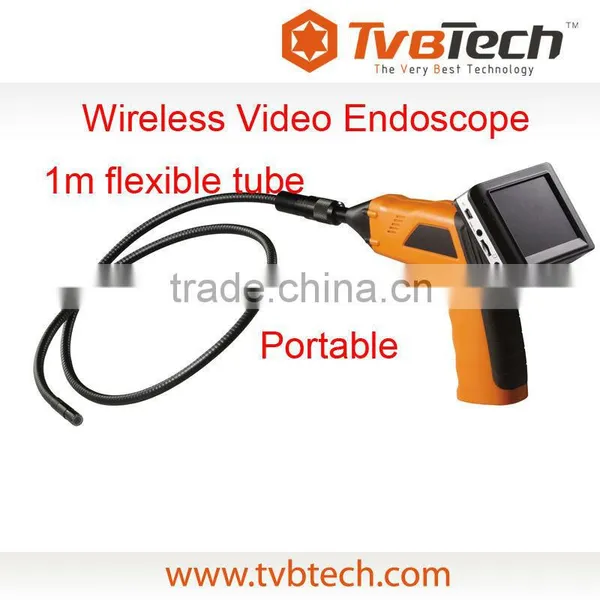

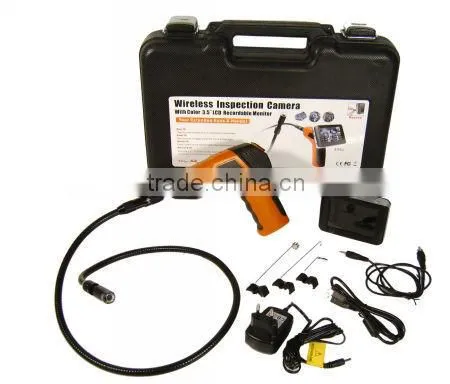

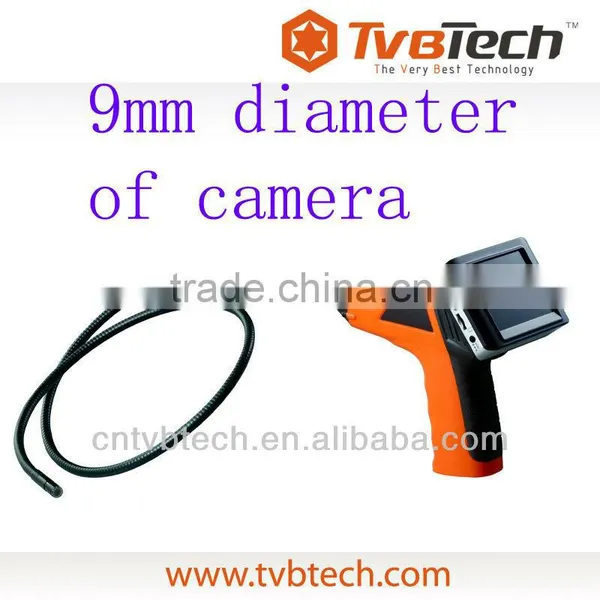

This is a video borescope that comes with a 9mm diameter camera tube (1m length) and a 3.5inch wireless receiving monitor with DVR. The LCD monitor is detachable and can receive video signal wirelessly from the camera. It’s widely used in visual inspections of various hard to reach places, especially for inspection of automotive, HVAC, plumbing, cable routing, electrical, etc.
Key Features:
> 2.4GHz wireless inspection camera with recording monitor
> CMOS, 380TV lines
> 3.5" TFTLCD wireless monitor with rechargeable libattery and
SD card recording (SD card is not included, support Max. 16GB SD card)

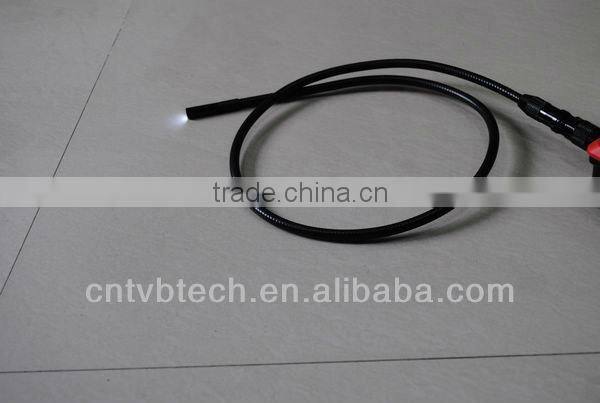

> Mini Waterproof camera with 1m flexible extendable tube
> Night vision range for camera: 1.5m
> Waterproof level for camera: IP67

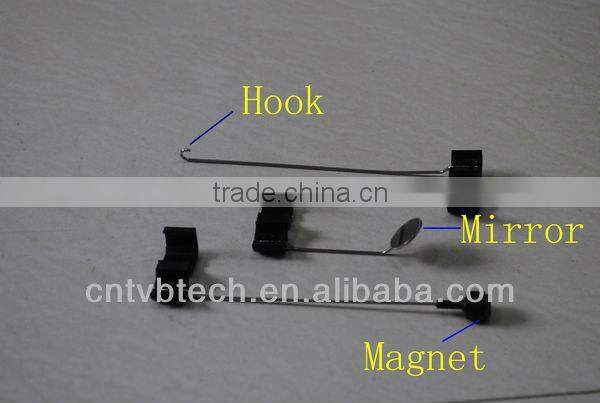

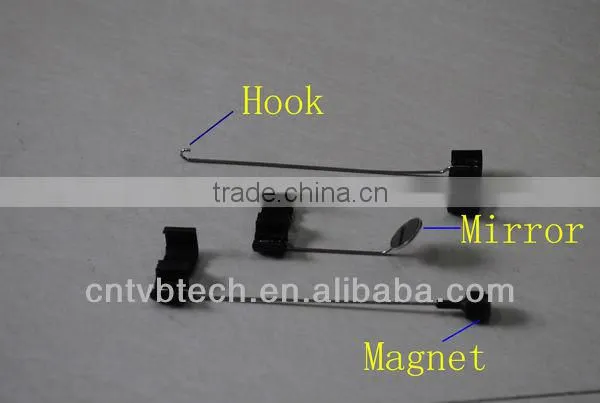

> With three useful accessories: hook, mirror and magnet
Technical Specs:
Camera | |
Pixels |
640 x 480 |
Transmission Frequency |
2.4GHz |
Modulation Type |
FM |
Bandwidth |
18MHz |
Transmission Range |
10m unobstructed view |
Viewing direction |
Viewing Angle 50° |
Viewing distance |
15 to 25cm |
Shaft diameter |
9 mm |
Working length |
1m |
Camera Dimensions |
186 x 145 x 41mm |
Weight |
530g |
Monitor | |
LCD Screen Type |
3.5” TFT |
Pixels |
320 (R.G.B.) x 240 |
Video Output Level |
0.9 to 1.3V@75Ω |
Frame Rate |
10, 15, 20, 25, 30FPS |
Video Resolution |
960 x 240 (Avi format) |
Image Resolution |
640x 480 (Jpeg format) |
Monitor Dimensions |
100 x 70 x 25mm |
Operating/Charge Time |
1.5 hours/3 hours |
Weight |
140g |
