TVBTECH NEW Pipe drain Sewer Duct Inspection Camera
With super short stainless steel 135° wide view angle 1/3” SONY CCD camera (Dia. 23mm), 7" color TFT LCD monitor and DVR recording feature
With long lasting battery for 8 hours continuous working
Cable reel is mounted and rotatablein the case
Advantages compared with competitors:
> 1/3 inch Sony CCD camera,
> 135° wide vision angle
> Sapphire glass lens cove

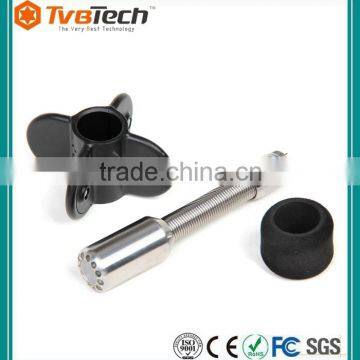

> 304# Stainless super short Camera head
> Cable reel is fixed and rotatable in the case, no need to take out and hold on hand when in using.
> Battery lasts up to 8 hours continuous working
Applications:
> For Professional Pipeline, Drain, Sewer, Duct, Chimneys, Machinery and Building Inspection;
> For Maintenance of Plumbing and Wiring behind walls
Selling Features:
Video pipe inspection camera with 30m fiberglass
cable and 7" monitor with DVR feature
> 1/3 inch Sony CCD camera, 135° wide vision angle
> Stainless steel super short camera head, IP 68 water proof level
> Sapphire glass lens cover, 12 high light white LEDs
> Diameter of camera: 23 mm
> Rubber ring and plastic center protectors for camera head
> 7” LCD color monitor
> SD Card slot to store still pictures or videos
> One push record button
> LED brightness control buttons
> Video image rotate button
> With microphone for audio recording
> Video-Out to connect to TV
> Rechargeable battery lasts up to 8 hours
> On-Screen date and time
> 30m fiberglass push rod
> Rotatable cable reel mounted in case for convenient operation
> Ability to go through bend pipes at diameter of 45mm

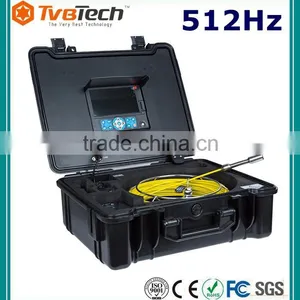

> Waterproof ABS suitcase with all parts included
What’s included?
> Inspection camera with 12 LEDs
> USB digital video recorder with remote control
> 30m fiberglass cable and stainless steel reel
> 12v rechargeable battery
> 18cm (7") TFT LCD screen
> Sturdy storage box into which all items mount/fit
Packing details:
> Each unit in a professional tool case
> 1 unit in one carton
> Carton G.W.: 12kg
> Carton Measurement: 61 x 54 x 30cm
Specifications:
Camera Head |
|
|
Sensor: |
1/3” Sony CCD |
|
Head Dimension: |
23mm (dia.) ×45mm (length) |
|
Camera Material: |
304# Stainless Steel |
|
View Angle: |
135° wide angle |
|
Lens Cover: |
Sapphire glass |
|
Leds: |
12 High Bright White LEDs |
|
Water Proof: |
IP68 |
|
Cable Reel |
|
|
Material: |
Fiberglass rod cable |
|
Wheel: |
Stainless steel wheel |
|
Cable Length: |
20, 30 or 40m optional |
|
Connector: |
Gold touch-point connector |
|
Rotation: |
Rotable in the suitcase |
|
Wheel diameter: |
33cm |
|
Cable diameter: |
5.4mm |
|
LCD Display and DVR |
|
|
LCD Resolution: |
800*480 pixels |
|
Video Compress: |
MPEG-4 |
|
Recording: |
Video and audio recording |
|
Picture: |
Picture shot function |
|
LCD Size: |
7 inch |
|
Language: |
9 Languages |
|
Panel Control: |
Any Funtions through buttons |
|
External Memory: |
SD Card (Max. 32GB) |
|
