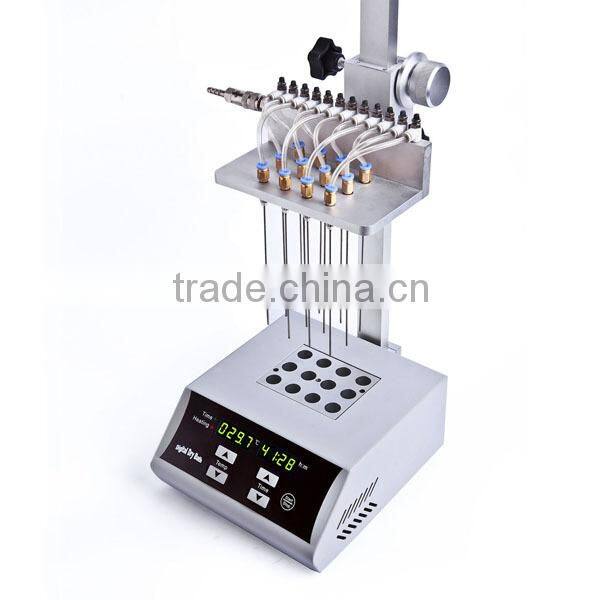

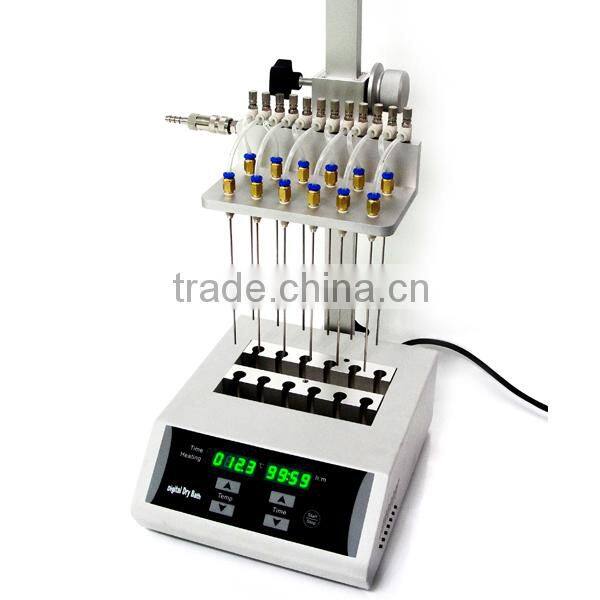

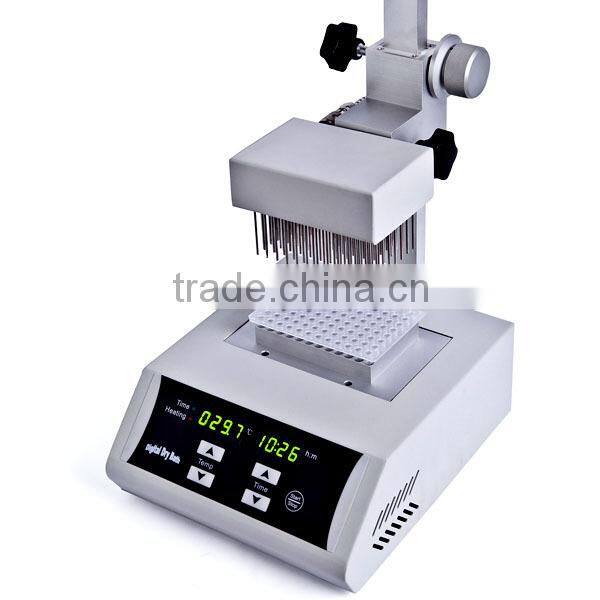

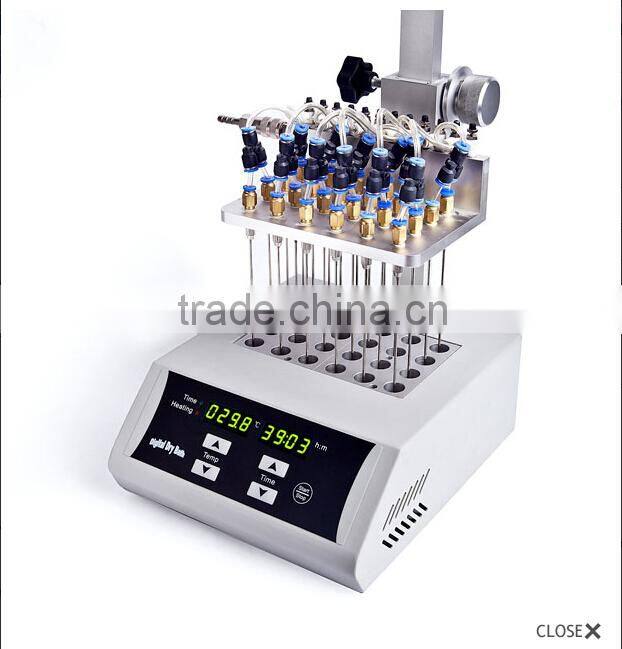

NDK200-1A96 Sample Concentrator
|
Product Numbers: NDK200-1A Product description: The nitrogen sample concentrator (96-gas-needles) NDK200-1A is mainly used for concentrating or preparing sample in batch. Such as drug screening, hormone analysis, liquid phase and mass spectrometry in the analysis of sample preparation. It works by blowing nitrogen in the surface of sample which is being heated to accelerate evaporating and separating the solvent in the samples without oxygen. Instead of the rotary evaporation instrument, nitrogen sample concentrator can efficiently concentrate dozens of samples simultaneously. |
INTRODUCTION
Product features
1, The heater allows samples to be heated rapidly to the evaporation temperature, through the gas blow to the solution surface via needle at the same time, prompting rapid evaporation and concentration solution.
2, The gas chamber height can be adjusted, the length of standard gas needle is 80 mm.
3, Each blow needle can be controlled independently, can be blown, separate flow regulation, no waste of gas.
4, The entire system can be arranged in the ventilation cabinet when process concentration of toxic solvents,
5, Built in over-temperature protection device, automatic fault detection and alarm function.
6, LED display, temperature and time diminishing display, the operation is simple and convenient.
7, configured standard gas chamber and special adjustable bracket.
Model |
NDK200-1A Concentration(96-gas-needles) |
Temperature Range |
R.T.+5°C ~ 150°C |
Heating Time |
≤30min (from 40°C to 150°C) |
Temperature Accuracy (40~100°C) |
±0.5°C |
Temperature Accuracy (100~150°C) |
±1°C |
Temperature Uniformity (100°C) |
±0.5°C |
Blocks Quantity |
1 block |
Temperature Display Accuracy |
0.1°C |
Time Range |
99h59min |
Nitrogen Flow Rate |
0~10L/min |
Nitrogen Pressure |
≤0.1MPa |
Power |
200W |
Dimensions |
260 x 220 x 500 (mm) |
Blocks Selection |
Refer to “Exchangeable blocks for NDK200-1A” |
Conventional configuration
Supply 2 types of optional blocks – DT16 and DT17. Block can be interchanged easily.
Optional flow regulating valve.
Exchangeable blocks for NDK200-1A
Type |
Tube Diameter |
Tubes |
Block Size (mm) |
DT16 |
0.2ml centrifugal tube |
96 |
78 x 114 x 26 |
DT17 |
Plate(no holes) |
96 hole enzyme plates |
81 x 123 x 19 |
DT16, DT17 is special configured for NDK200-1A
Beijing Zhongxingweiye Instrument Co., Ltd. is a large high-technology group company, integrating research, development and sale. Our research and production base covers an area of over 15000 square meters, and our building covers more than 10000 square meters.
Our company produced various laboratoryequipments, which related to more than twenty series and more than 500 specifications, Such as whole series of incubator, drying oven, heating mantle, water distiller, centrifugal and magnetic stirrer. And we also have CE-certificate for most of them
Carton, wooden case with pallet or according to customer's requirement.
