1. Descriptions
The AT680 Leakage Current/IR Meter provides DC 1~ 650 V voltage source. Mainly used for electrolytic capacitor leakage current testing, and aluminum-foil withstand voltage testing. And also can be used for active voltage checking or leakage current testing of absorber, Zener diode, and Neon lamp etc. RS232C interface and Handler interface, optional USB interface, high speed (55/second) and stable measurement capabilities enable the AT680 can be used for both component evaluation on the production line and fundamental leakage current testing for benchtop applications.

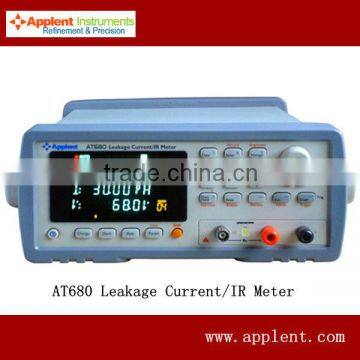

AT680 Leakage Current Tester | |

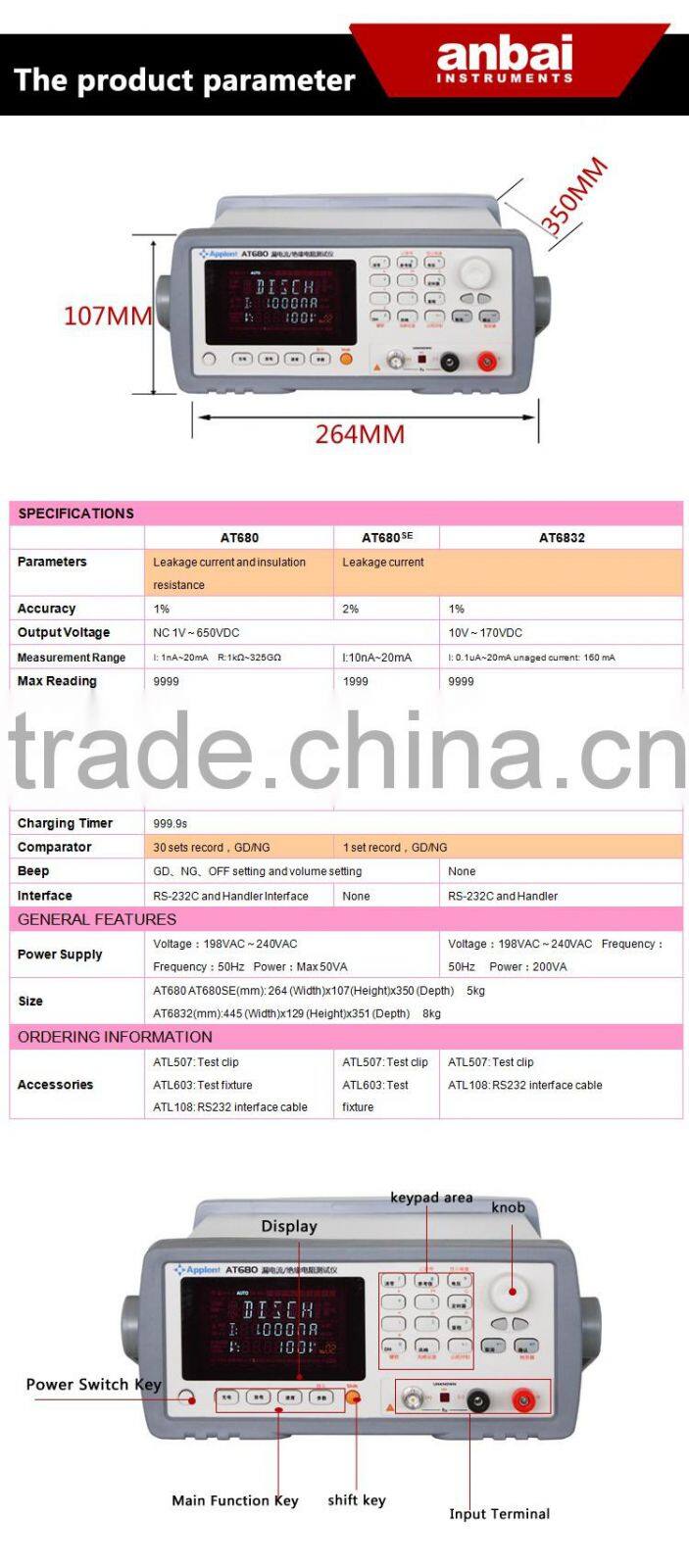

SPECIFICATIONS | |
Parameters |
Leakage current and insulation resistance |
Accuracy |
1% |
Output voltage |
NC 1V~650VDC |
Measurement Range |
I: 1nA~20mA R:1kΩ~325GΩ |
Max Reading |
9999 |
Range |
Automatic and Manual |
Charging Current |
200mA(MAX) |
Speed |
55 times/second,15 times/second,3 times/second |
Result Display |
Show, current, resistance, peak value, and sorting result |
Charging Timer |
999.9s |
Comparator |
30 sets record,GD/NG |
Beep |
GD,NG,OFF setting and volume setting |
Interface |
RS-232 interface Handler interface |
GENERAL FEATURES | |
Power Supply |
Voltage: 198VAC~240VAC Frequency: 50Hz, Power: Max 50VA |
Dimension & Weight |
Outside(mm): 264 (Width)x107(Height)x350 (Depth) Inside (mm): 216(Width)x88(Height)x323(Depth) 5kg |
ORDERING INFORMATION | |

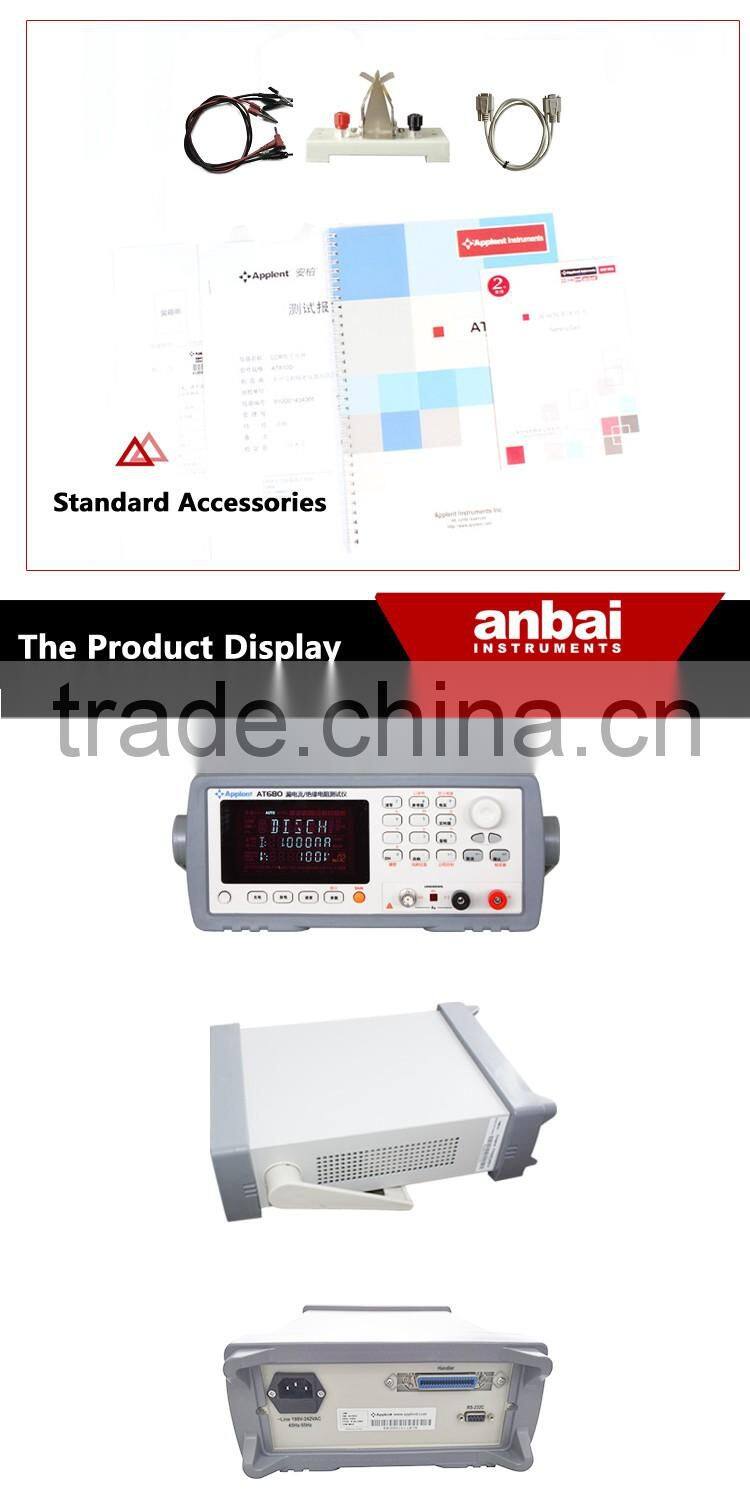

Accessories |
ATL507: Test clip ATL603: Test clip ATL108: RS232 interface cable |
