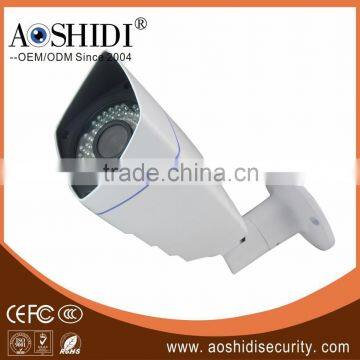

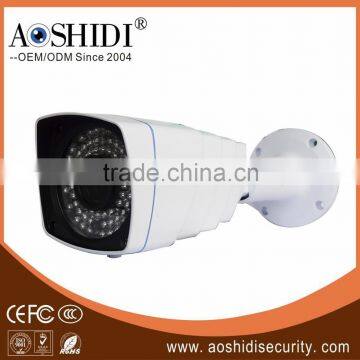

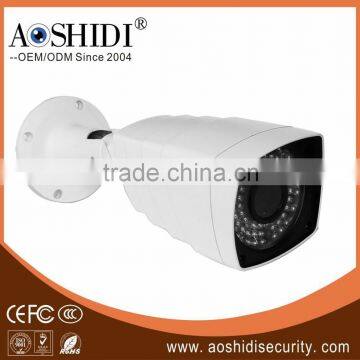

Aoshidi HD 2MP Megapixel Home CCTV Cam, Big Case Network Cameras 1080p Waterproof Verifocal IP Camera
Overview of B4AV18-AHD:
Item: 2MP Verifocal IP Camera
1.Model: AD-B7IV18-IP
2.Chipset: 1/2.8" Sony IMX322 + 3516C
3.Lens: 2.8-12mm Verifocal Lens
4.Features:
IR-LED: 72 pcs IR leds
IR-Range: 50M
Material: Metal
Housing: IP 66 Weatherproof
Resolution:1080p (1920*1080) 2.0MP
Size: 270*90*90mm
POE: Optional
Color: White
5.Warranty: 3 years warranty
6.Certificates:CE,ROHS,FCC
Features IP Camera:
.1MP /1.3MP/2MP/3MP/4MP/5MP HD Resolution optional
.Support Dual Stream
.Support P2P Cloud Service;
.Support Motion Detection and Alarm Notification on mobile phone
.Support Onvif, compatible with Blue Iris
.Mobile monitor: Support iPhone,Windows Mobile,BlackBerry,Symbian,Andro
.Support IE, Google, Firefox Browser
.Support DHCP,PPPOE,FTP,DNS,DDNS,NTP,UPNP,EMAILl,IP Access,Alar
.Provide SDK for further development
.2MP/3MP HD lens
Specifications of Network Camera:
Model NO. |
B7IV50-IP |
B7IV40-IP |
B7IV18-IP |
B7IV96-IP |
B7IV72-IP |
Camera | |||||
Image Sensor |
1/1.8" SONY IMX178 |
1/3" OV4689 |
IMX222 |
AR0130 |
OV9712 |
Main processor |
Hi3516A |
Hi3516D |
HI3516C |
HI3518E |
HI3518E |
Resolution |
5MP |
4MP |
1080P |
960P |
720P |
Effective Pixels |
2592(H)* 1944(V) |
2592(H)* 1520(V) |
1920(H)* 1080(V) |
1280(H)* 960(V) |
1280(H)* 720(V) |
TV System |
PAL/NTSC |
||||
Electronic ShutterTime |
Auto: PAL 1/1-1/10000Sec; NTSC 1/1-1/10000Sec |
||||
Sync System |
Internal |
||||
Usable Illumination |
0.001Lux |
0.001Lux |
0.01Lux |
0.01Lux |
0.1Lux |
S/N Ratio |
≥52dB |
||||
Scanning System |
Progressive |
||||
Video Output |
Network |
||||
Lens | |||||
Focus Length |
Manual Varifocal 2.8-12mm |
||||
Pixels |
3M Pixel |
3M Pixel |
3M Pixels |
2M Pixels |
2M Pixels |
Night Vision | |||||
Infrared LED |
5X72PCS |
||||
Infrared Distance |
50M |
||||
IR Status |
Under 10 Lux By CDS |
||||
IR Power On |
CDS Auto Control |
||||
Network | |||||
Ethernet |
RJ-45 (10/100Base-T) |
||||
Protocol |
IPv4, HTTP, TCP/IP, FTP, NTP, RTSP, UDP, SMTP, DNS, DDNS |
||||
ONVIF |
Support ONVIF 2.4 |
||||
P2P |
YES, Support QR Code |
||||
POE |
Optional, Support IEEE 802.3af |
||||
WIFI |
N/A |
||||
Video Delay |
0.3S (Within the Lan) |
||||
Main Stream |
2592*1944 @30fps |
2592*1520 @15fps |
1920*1080 @30fps |
1280*960 @30fps |
1280*720 @25fps |
Sub Stream |
1280*720@30fps |
704*576@30fps, 352*288@30fps |
|||
IE Brower |
IE8-11, Google Chrome, Firefox |
||||
Smart Phone |
iPhone, iPad, Android, Android Pad |
||||
Camera Features | |||||
Day/Night |
Color/ B&W (IR-CUT ) |
||||
Compression |
H.264/H.264,Support record AVI format. |
H.264/JPEG,Support record AVI format. |
|||
Image Config |
Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, BLC, FLK(Flicker Control) |
||||
Motion Detection |
Support |
||||
Privacy Masking |
3 Rectangular Zone |
||||
WDR |
NO, support digital |
NO, support digital |
NO |
NO |
NO |
Recording Mode |
NVR/NAS/CMS/Web |
||||
Language |
Chinese Simplified, Chinese Traditional, English,Bulgarian, Polish, Farsi, German, Russian, French,Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian |
||||
General | |||||
Housing |
Weatherproof, IP66 |
||||
Anti-cut Bracket |
Yes,3-Axis |
||||
IR Cut Filter |
YES |
||||
Operation Temperature |
-20℃ ~ +50℃ RH95% Max |
||||
Storage Temperature |
-30℃ ~ +60℃ RH95% Max |
||||
Power Source |
DC12V±10%, 1000mA |
||||
Dimension |
315(W)x120(H)x100(D)mm |
||||
Weight |
1.85kgs |
||||
1* 1080P IP Camera(without Power adapter)
1* Installing Accessories
1* Manual
