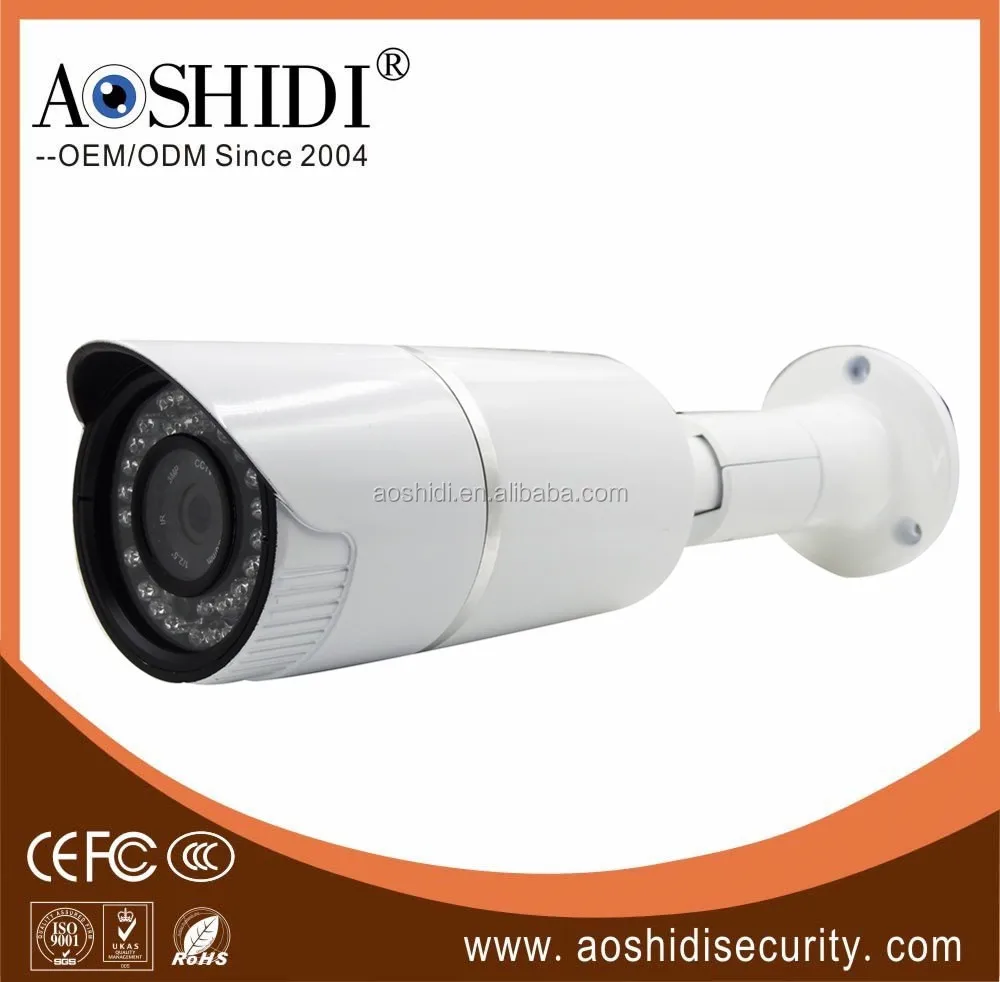

D20A 2 Pcs Led Array 1MP/1.3MP/2MP POE Mobile Cctv Camera IP

D20A 2 Pcs Led Array 1MP/1.3MP/2MP POE Mobile Cctv Camera IP thumbnail-1
D20A 2 Pcs Led Array 1MP/1.3MP/2MP POE Mobile Cctv Camera IP thumbnail-2
D20A 2 Pcs Led Array 1MP/1.3MP/2MP POE Mobile Cctv Camera IP thumbnail-3
D20A 2 Pcs Led Array 1MP/1.3MP/2MP POE Mobile Cctv Camera IP thumbnail-4
D20A 2 Pcs Led Array 1MP/1.3MP/2MP POE Mobile Cctv Camera IP thumbnail-5
D20A 2 Pcs Led Array 1MP/1.3MP/2MP POE Mobile Cctv Camera IP thumbnail-6
D20A 2 Pcs Led Array 1MP/1.3MP/2MP POE Mobile Cctv Camera IP photo-1

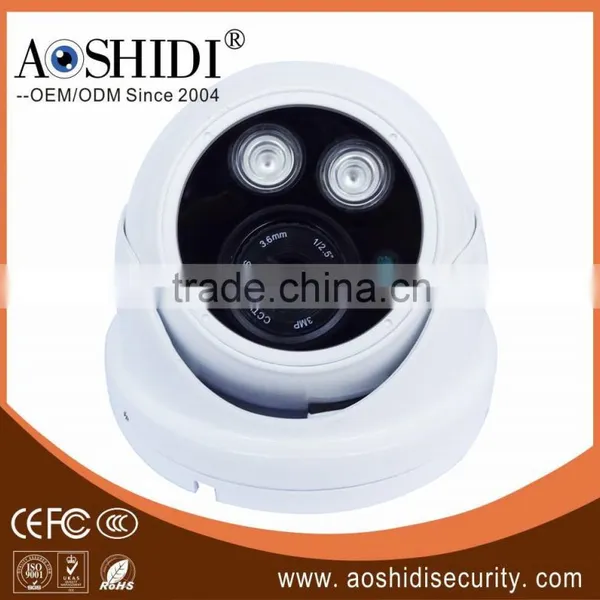

D20A 2 Pcs Led Array 1MP/1.3MP/2MP POE Mobile Cctv Camera IP photo-2

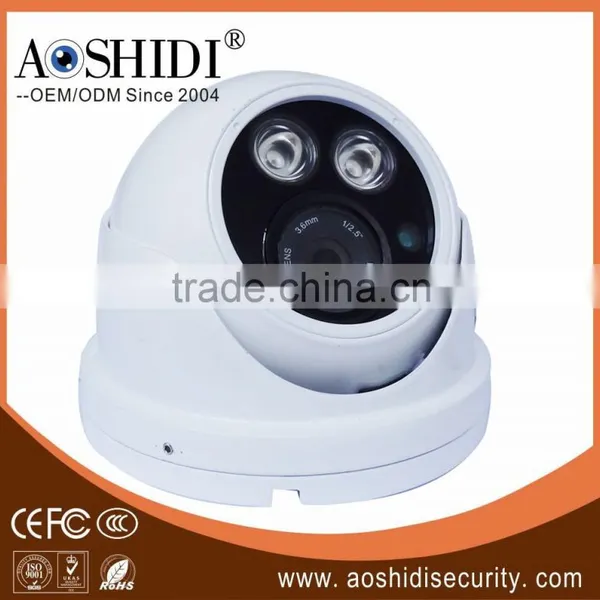

D20A 2 Pcs Led Array 1MP/1.3MP/2MP POE Mobile Cctv Camera IP photo-3

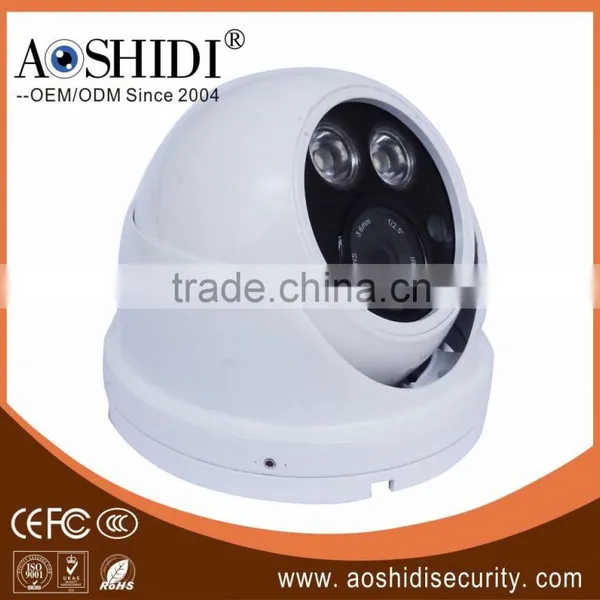

D20A 2 Pcs Led Array 1MP/1.3MP/2MP POE Mobile Cctv Camera IP photo-4

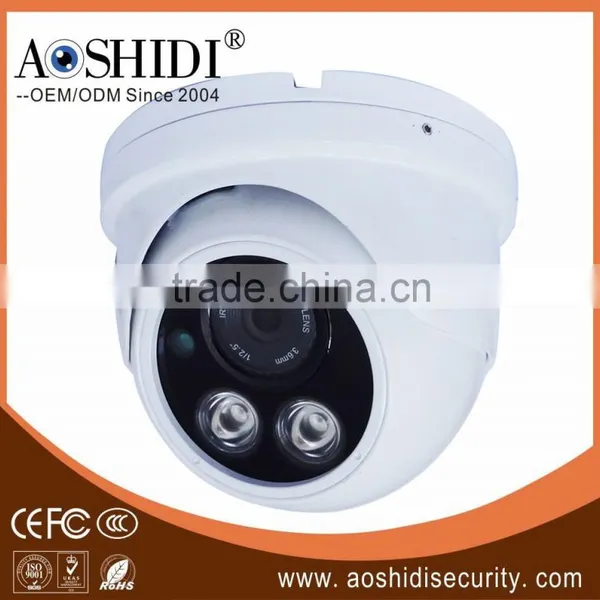

D20A 2 Pcs Led Array 1MP/1.3MP/2MP POE Mobile Cctv Camera IP photo-5
D20A 2 Pcs Led Array 1MP/1.3MP/2MP POE Mobile Cctv Camera IP photo-6
US$ 6.6 - 23.6 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Aoshidi
Model Number:
D20A IP Serials
Contact Supplier Request Quote Chat Now
Shenzhen Aoshidi Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen or Hongkong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Aoshidi
Model Number D20A IP Serials
Type IP Camera
Style Bullet Camera
Sensor CMOS
Technology NetWork
Special Features Waterproof / Weatherproof
Product Description

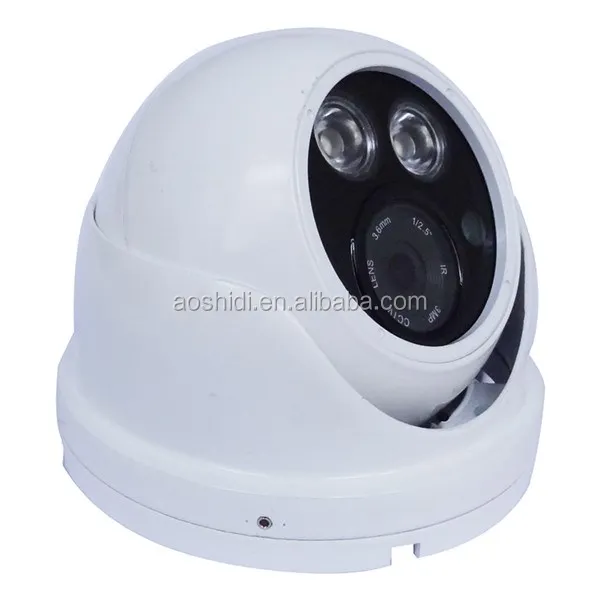

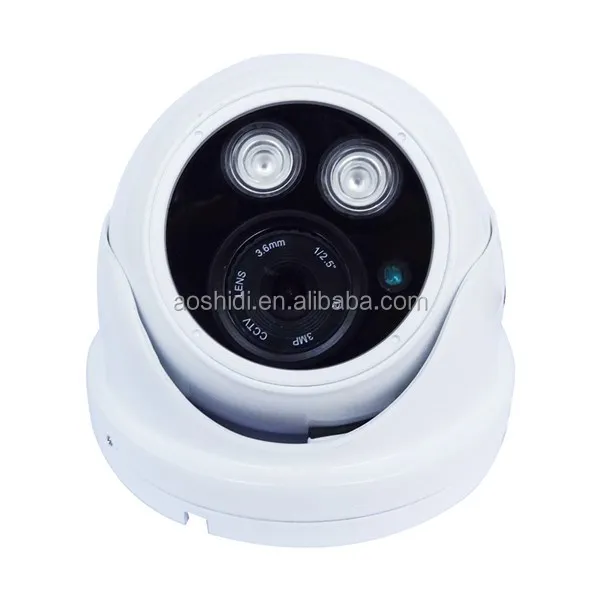

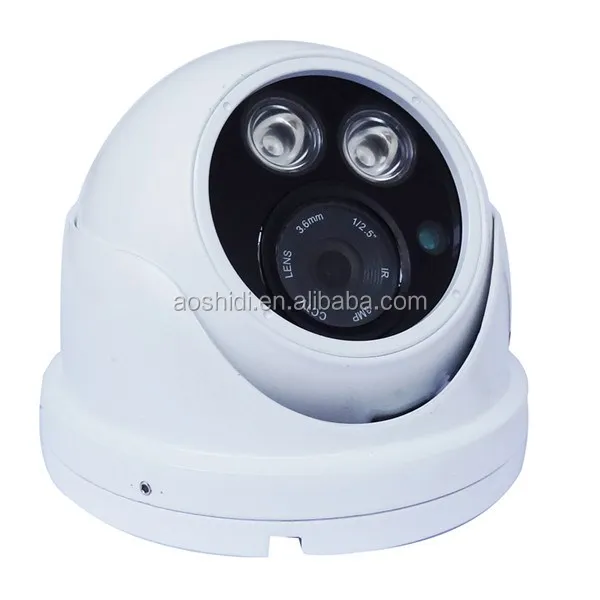

D20A 2 pcs led array 1MP/1.3MP/2MP POE mobile cctv camera IP


Features IP Camera:
•1MP /1.3MP/2MP/3MP/4MP/5MP HD Resolution optional

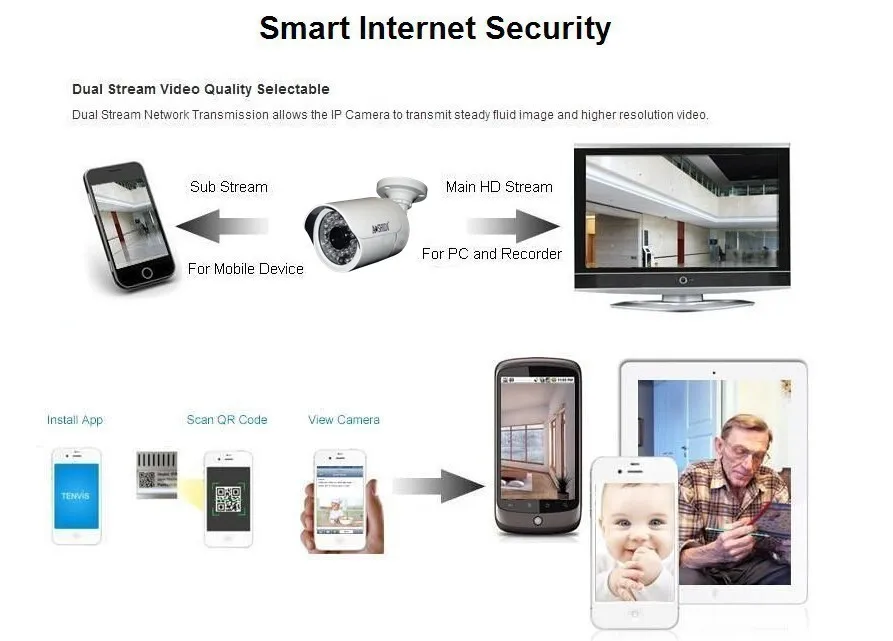

•Support Dual Stream
•Support P2P Cloud Service;
•Support Motion Detection and Alarm Notification on mobile phone
•Support Onvif, compatible with Blue Iris
•Mobile monitor: Support iPhone, Windows Mobile, BlackBerry, Symbian,Android
•Support IE, Google, Firefox Browser
•Support DHCP,PPPOE,FTP,DNS,DDNS,NTP,UPNP,EMAILl,IP Access,Alarm
•Provide SDK for further development
•2MP/3MP lens
•Material:Metal
.Warranty: 3 years warranty
.Certificates:CE,ROHS,FCC

Model NO.
D20A50-IP
D20A40-IP
D20A18-IP
D20A96-IP
D20A72-IP
Camera
Image Sensor
1/1.8" SONY IMX178
1/3" OV4689
1/2.8" SONY IMX322
1/3" Aptina AR0130
1/4" Omnivision OV9712
Main processor
Hi3516A
Hi3516D
HI3516C
HI3518E
HI3518E
Resolution
5MP
4MP
1080P
960P
720P
Effective Pixels
2592(H)*1944(V)
2592(H)*1520(V)
1920(H)*1080(V)
1280(H)*960(V)
1280(H)*720(V)
TV System
PAL/NTSC
Electronic Shutter Time
Auto: PAL 1/1-1/10000Sec; NTSC 1/1-1/10000Sec
Sync System
Internal
Usable Illumination
0.001Lux
0.001Lux
0.01Lux
0.01Lux
0.1Lux
S/N Ratio
≥52dB
Scanning System
Progressive
Video Output
Network

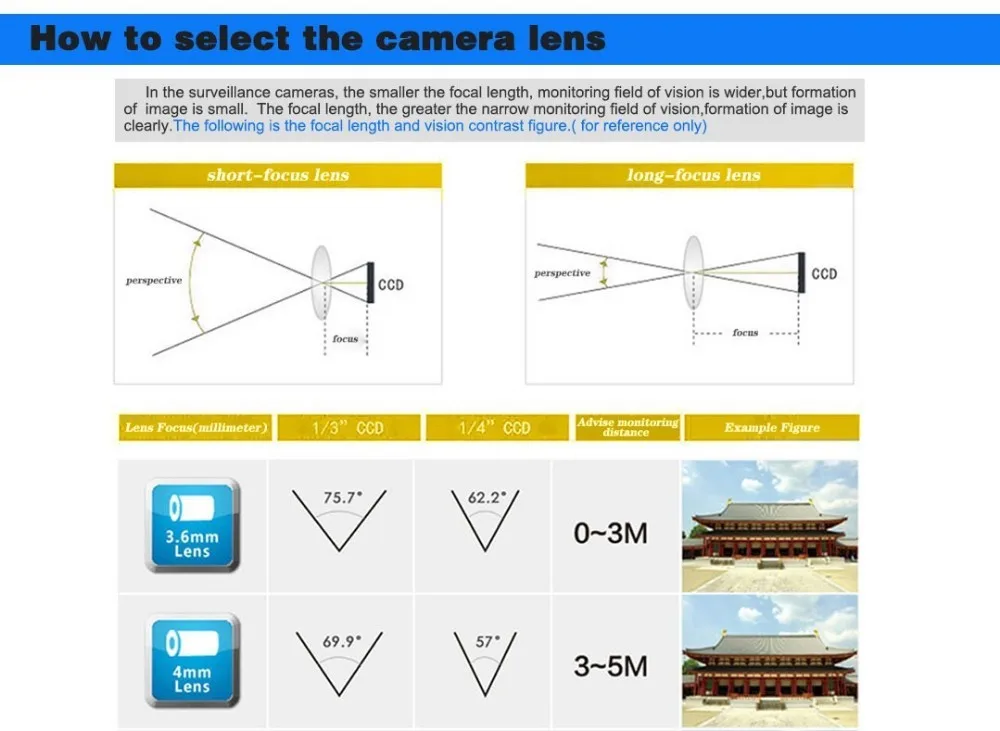

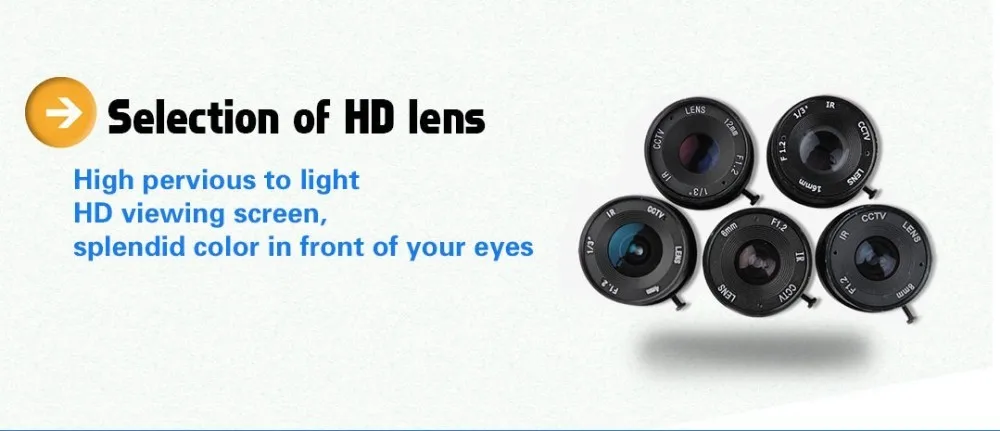

Lens
Focus Length

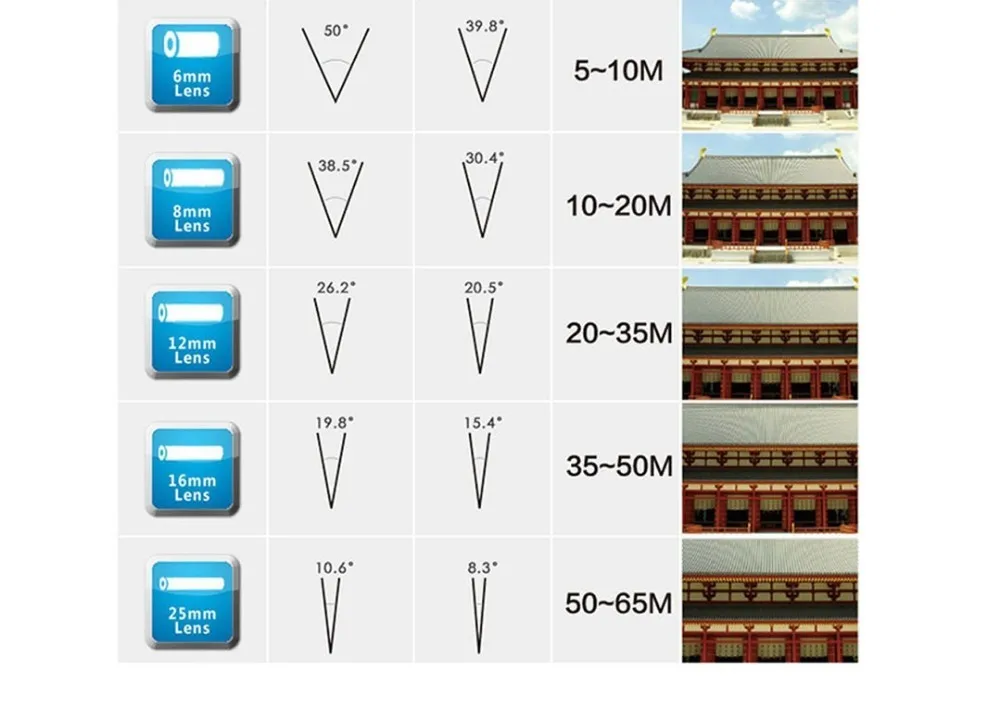

Default 3.6mm Fixed Lens(2.8mm/6mm optional)
Pixels
3M Pixel
3M Pixel
3M Pixel
2M Pixel
2M Pixel
Night Vision
5MP
4MP
1080P
960P
720P
Infrared LED
2PCS Arrany LEDs
Infrared Distance
20M
IR Status
Under 10 Lux By CDS
IR Power On
CDS Auto Control
Network
Ethernet
RJ-45 (10/100Base-T)
Protocol
IPv4, HTTP, TCP/IP, FTP, NTP, RTSP, UDP, SMTP, DNS, DDNS
ONVIF
Support ONVIF 2.4
P2P
YES, Support QR Code
POE
Optional, Support IEEE 802.3af
WIFI
N/A
Video Delay
0.3S (Within the Lan)
Main Stream
2592*1944@30fps
2592*1520@15fps
1920*1080@30fps
1280*960@30fps
1280*720@25fps
Sub Stream
1280*720@30fps
704*576@30fps,352*288@30fps
1920(H)*1080(V)
1280(H)*960(V)
1280(H)*720(V)
IE Brower
IE8-11, Google Chrome, Firefox
Smart Phone
iPhone, iPad, Android, Android Pad
Camera Features
Internal

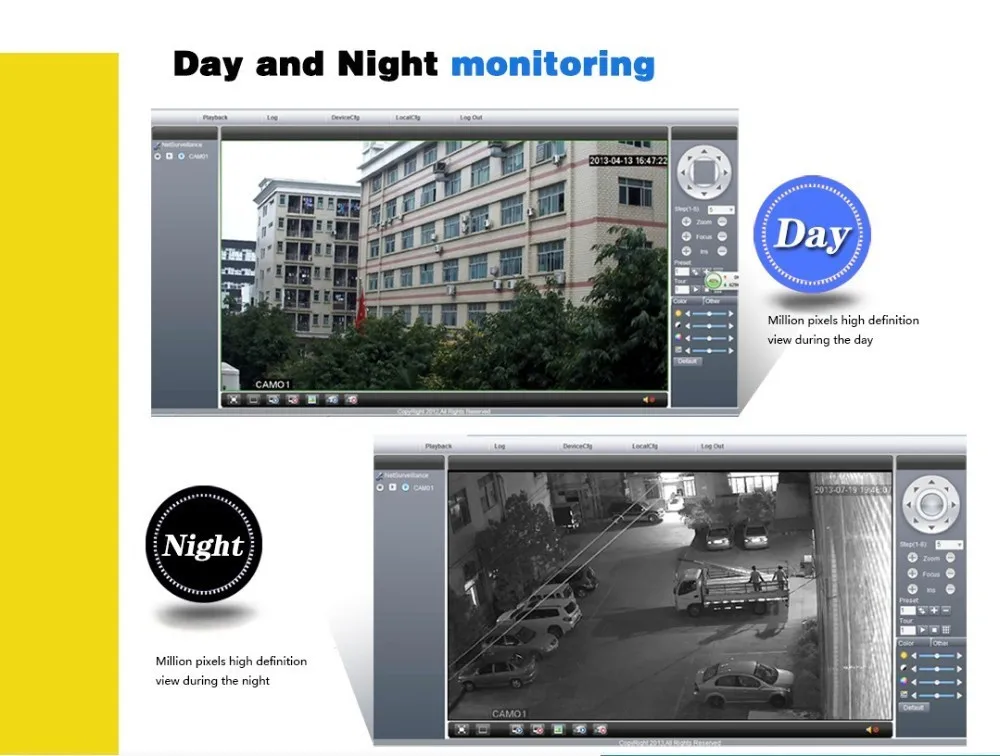

Day/Night
Color/ B&W (IR-CUT )
Compression
H.264/H.264,Support record AVI format.
H.264/JPEG,Support record AVI format.
Image Config
Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, BLC, FLK(Flicker Control)
Motion Detection
Support
Privacy Masking
3 Rectangular Zone
WDR
NO, support digital
NO, support digital
NO, support digital
NO
NO
Recording Mode
NVR/NAS/CMS/Web
Language
Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Farsi, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian
General
Housing
Weatherproof,P66
Anti-cut Bracket
Yes,3-Axis
IR Cut Filter
YES
Operation Temperature
-20℃ ~ +50℃ RH95% Max
Storage Temperature
-30℃ ~ +60℃ RH95% Max
Power Source
DC12V±10%, 1000mA
Dimension
90*90*75 mm
Weight
0.22kgs
Detailed functions
Related Products

Products Name with link


Products Name with link


Products Name with link


Factory Show
　 Shenzhen Aoshidi Technology Co., Ltd is a specialized in development, manufacture and sale of CCTV video products. Company brings together a large number of professional talents in the security industry, experience and strong R & D technology to ensure the company's product has been in the same industry leading level; since its inception, with quality products, reasonable price and good service to win the majority of the customer's trust and support.Each year we also promote our products on CPSE,ISAF,ESPOSEC and so on .

Certifications
Packing & Delivery

Packing


Delivery


Payment terms
Our Service

1. We Aoshidi are a professional factory in security products, with high flexibility, so we will try our best to satisfy customers. And we adopt “ quick sale and small profit ” sincerely, do not need to worry about our prices and products.
2. Our service tenet: Trust brings further cooperation.
3. Only quality and service can speak for us.
4. For the mutual benefit, we will do our best.
5. So choose us, and we will not let you down.
